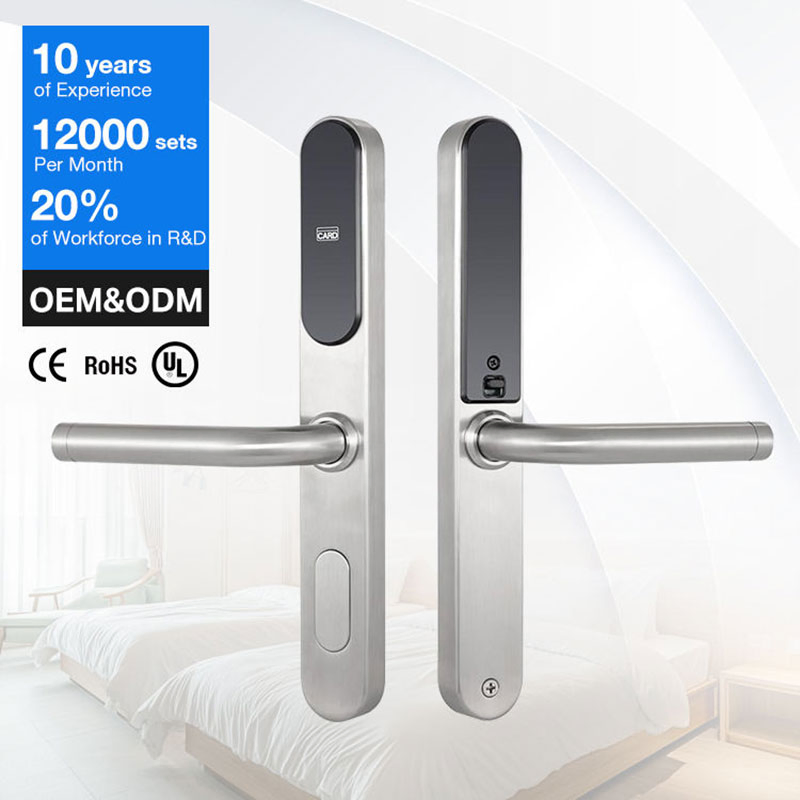

3585 Mortise Stainless Steel Intelligent RFID Card High Frequency Digital Card Key Locks with Free Software

Still deciding? Get samples of $ !
Order Sample

Product Description

📊
Basic Information
Model NO.F202
MaterialStainless Steel
Surface TreatmentBrushed Stainless Steel
StyleModern
Remote ControlWith Remote Control
Power TypeDC (4 PCS AA Alkaline Batteries)
CertificationCE, FCC, RoHS, ISO
UsageHotel, Household, Commercial
Door Thickness35-55mm
MortiseANSI/European Mortise
💡
Product Overview

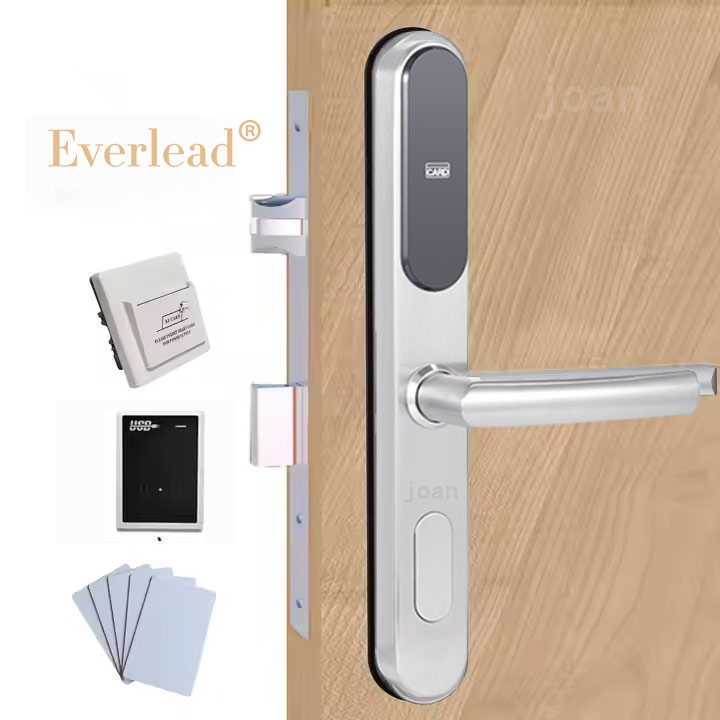

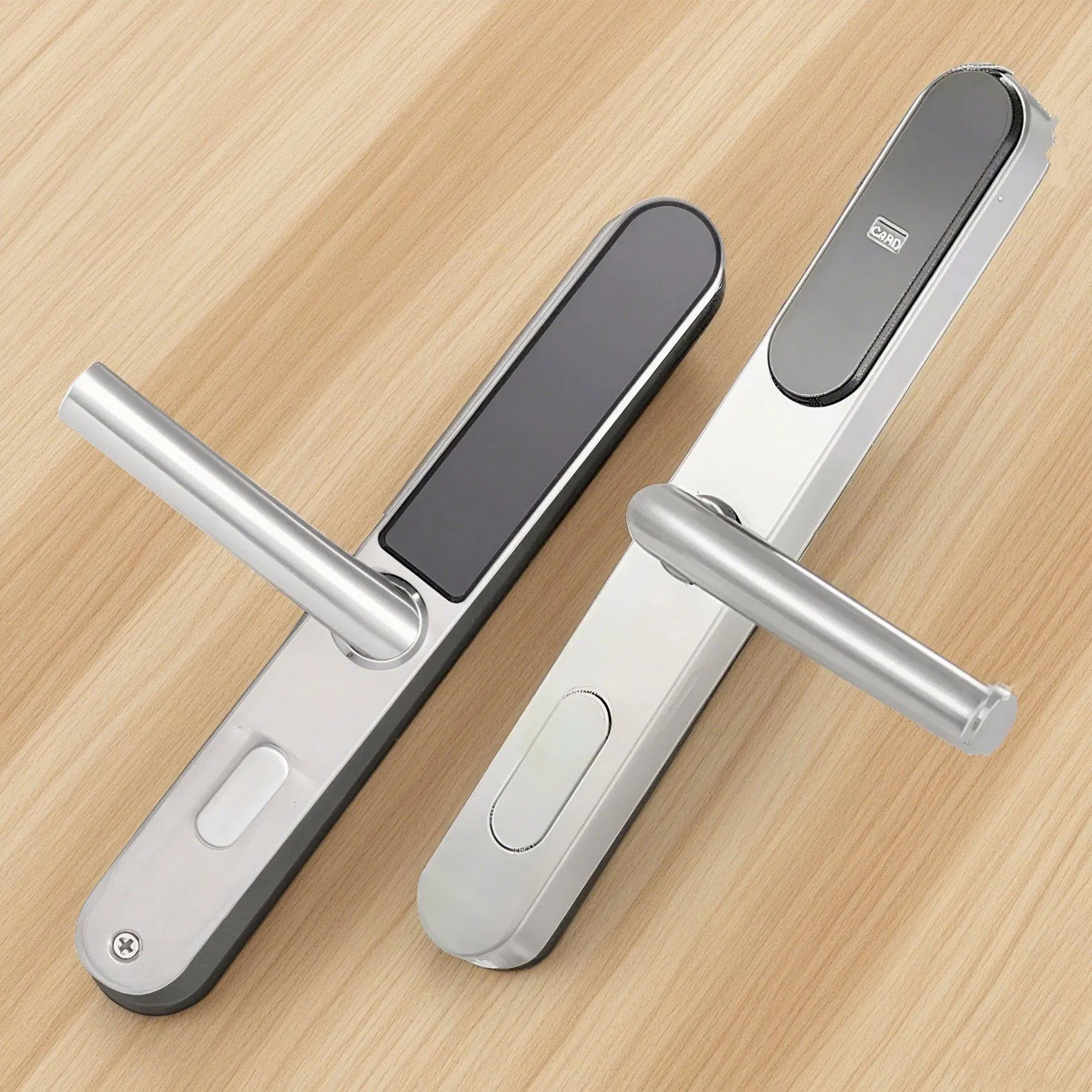

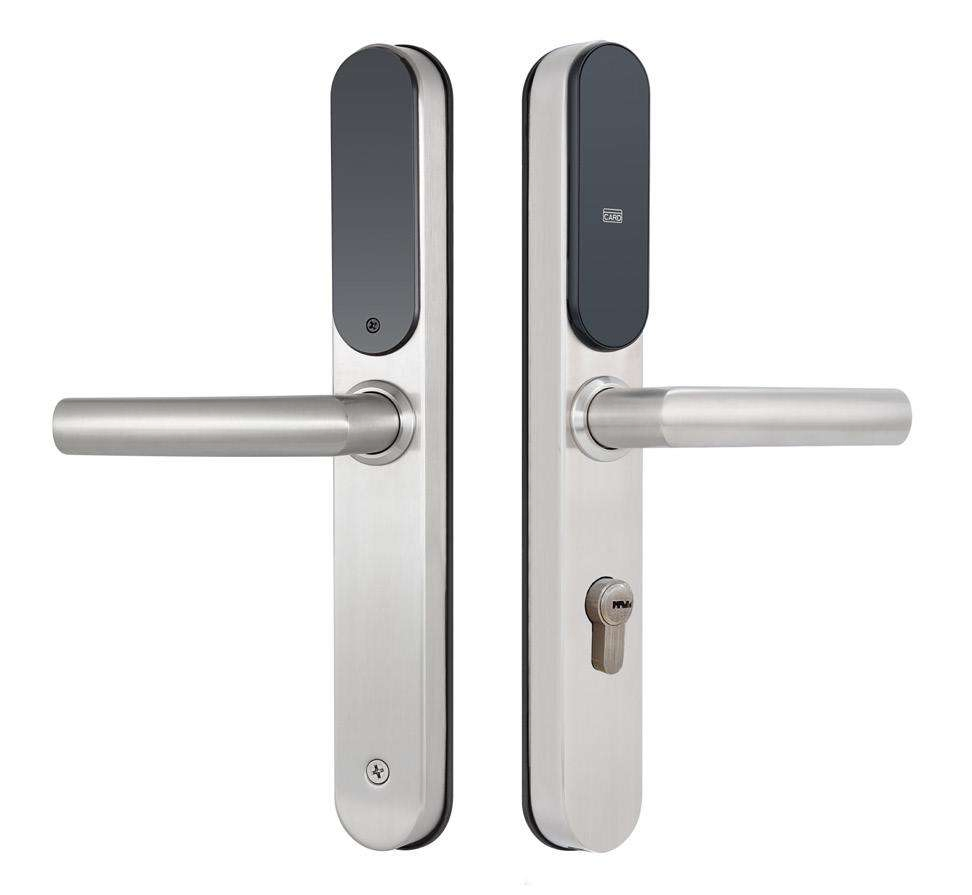

3585 Mortise Stainless Steel Intelligent RFID Card Key Locks

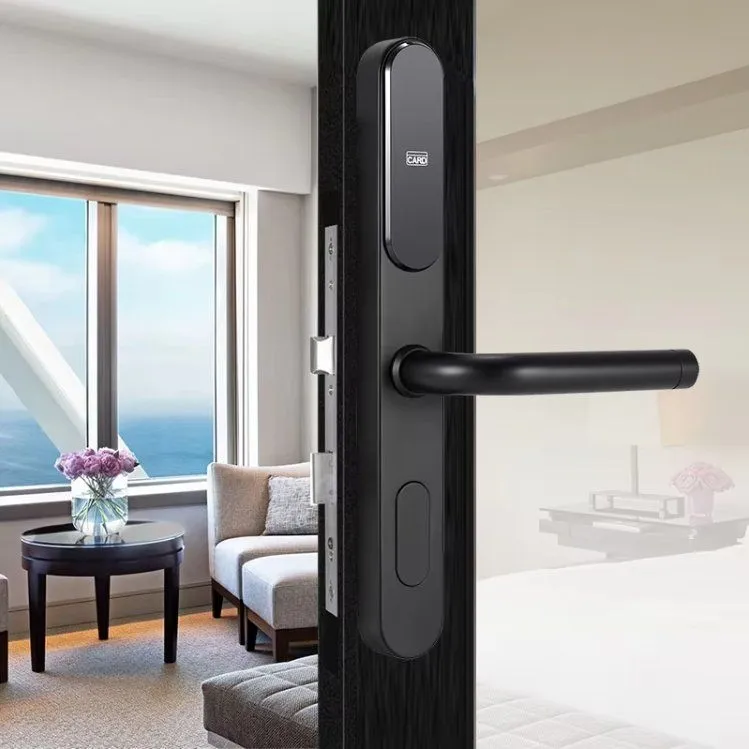

RFID Card Hotel Door Lock
  • Standalone electronic lock with 13.56mhz MF technology.
  • Elegant design suitable for any hotel decor style.
  • Complete solution compatible with management software and MF card encoders.

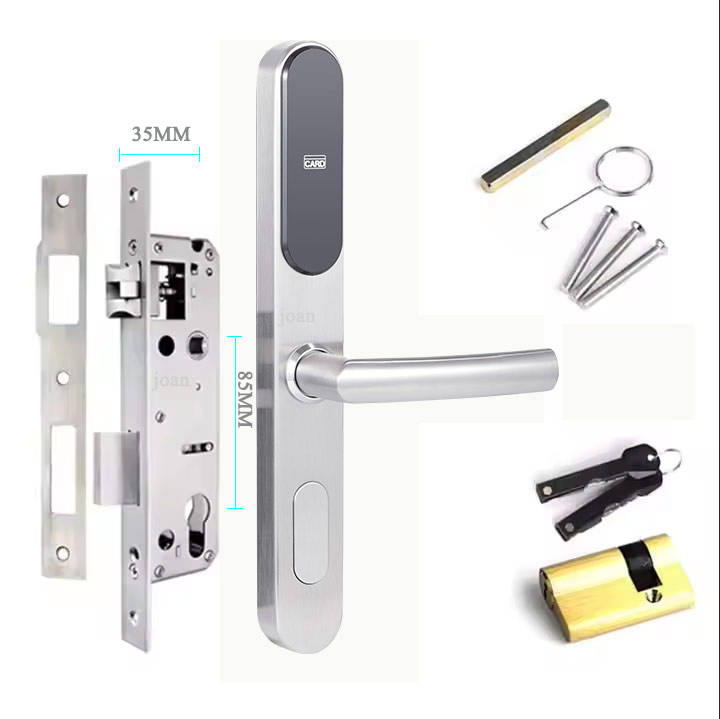

  • Europe Standard 3585 series mortise for both push and sliding doors.
  • Backup mechanical key provided for emergency access.
  • Versatile application for wooden, steel, or aluminum doors (35-55mm thickness).
  • Supports OEM/ODM customization based on requirements.
⚙️
Technical Parameters
Card TypeRFID Card or 13.56mhz M1 card
Battery Life~15,000 openings (Approx. 1 year)
Low Power AlarmVisual/Audio warning below 4.8V (allows ~150 more openings)
Audit TrailLatest 500 records (including mechanical key usage)
Static Current25uA
Dynamic Current<150mA
Working Temp/Humidity-20~45°C / 20-95% RH

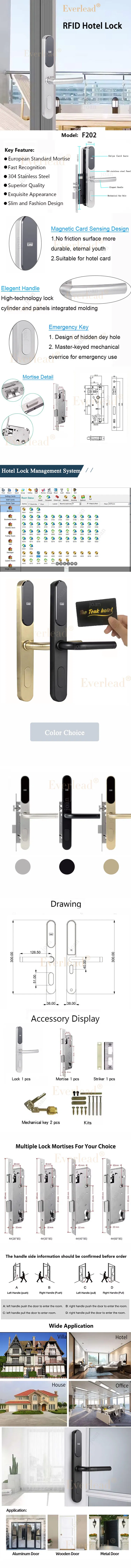

Technical Drawing
🏆
Certifications & Quality Assurance
Certifications
🌍
Exhibition & Production
Exhibition 1

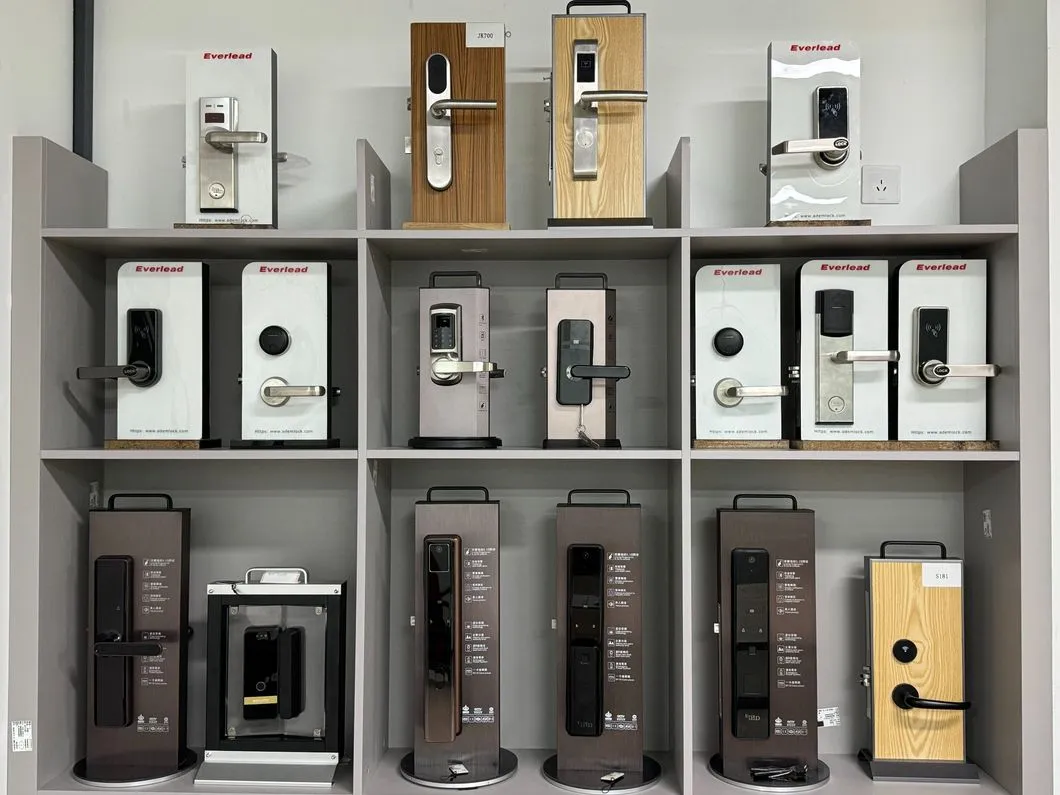

Exhibition 2

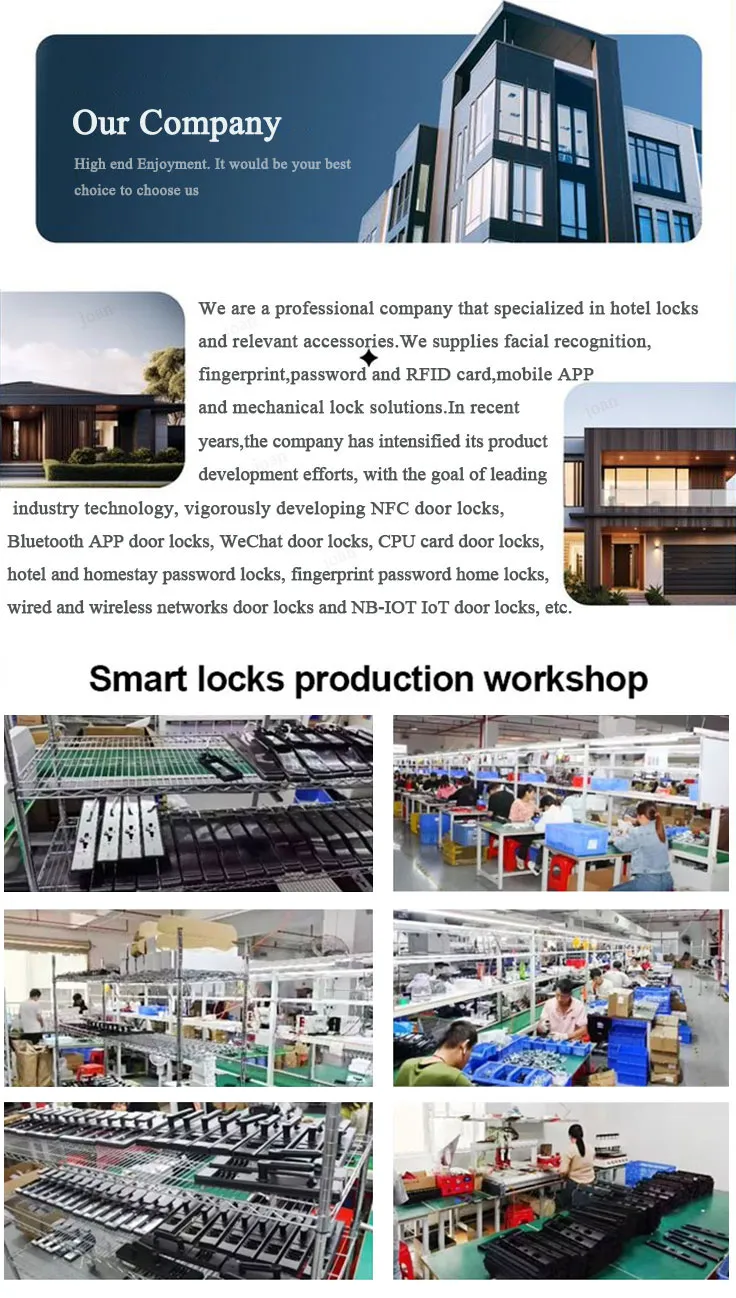

Factory Overview
📦
Packaging & Shipping
Package Size38.00cm * 18.00cm * 13.00cm
Gross Weight3.500kg
Standard PackageExport Grade Carton
Packaging Details
🔥
Related Hot Products
Wireless BLE Lock

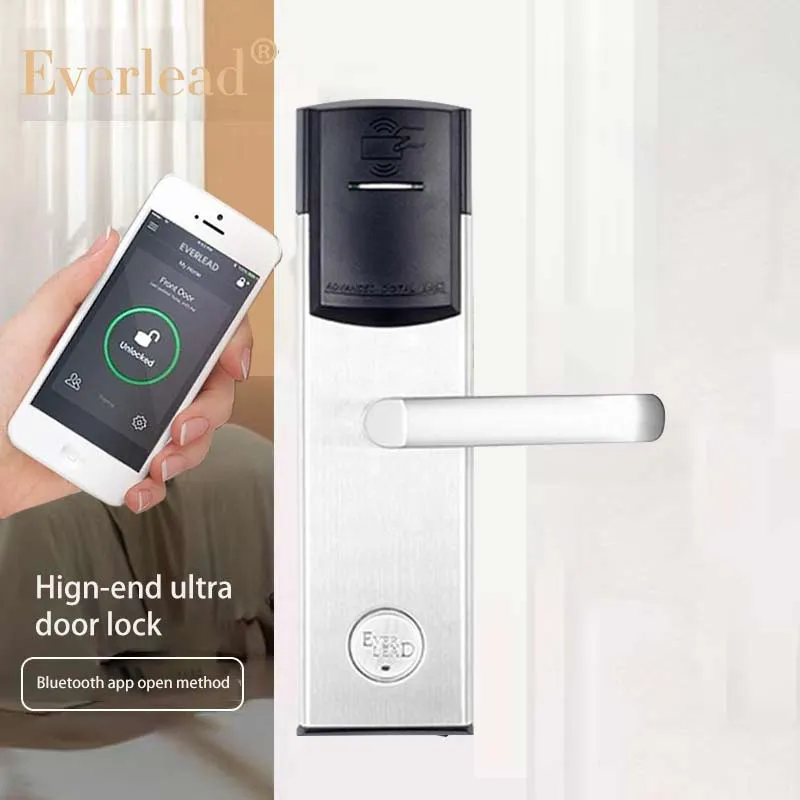

Digital MIFARE Lock

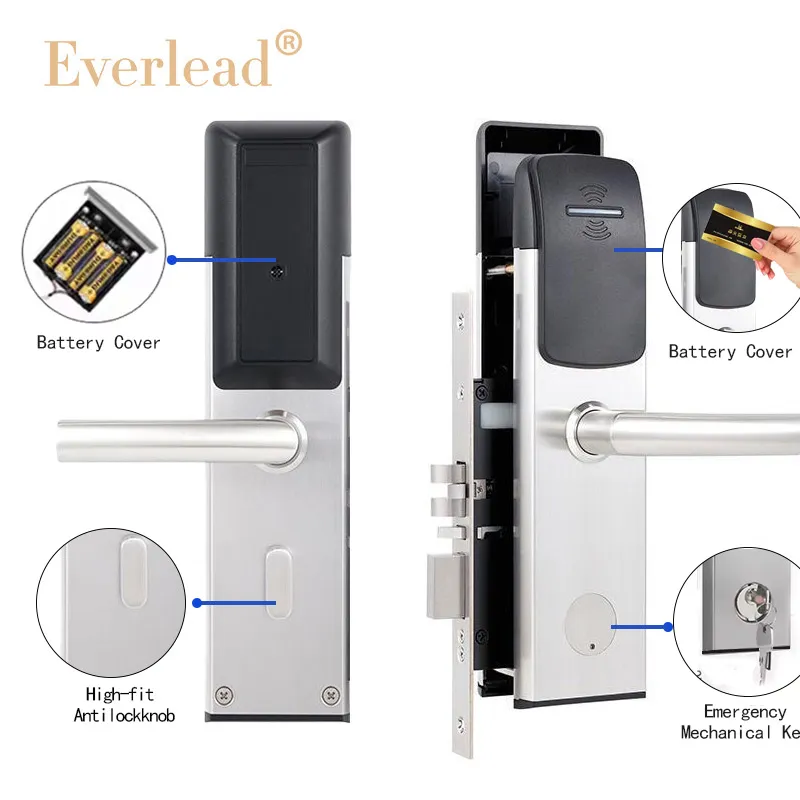

Smart Hotel Lock

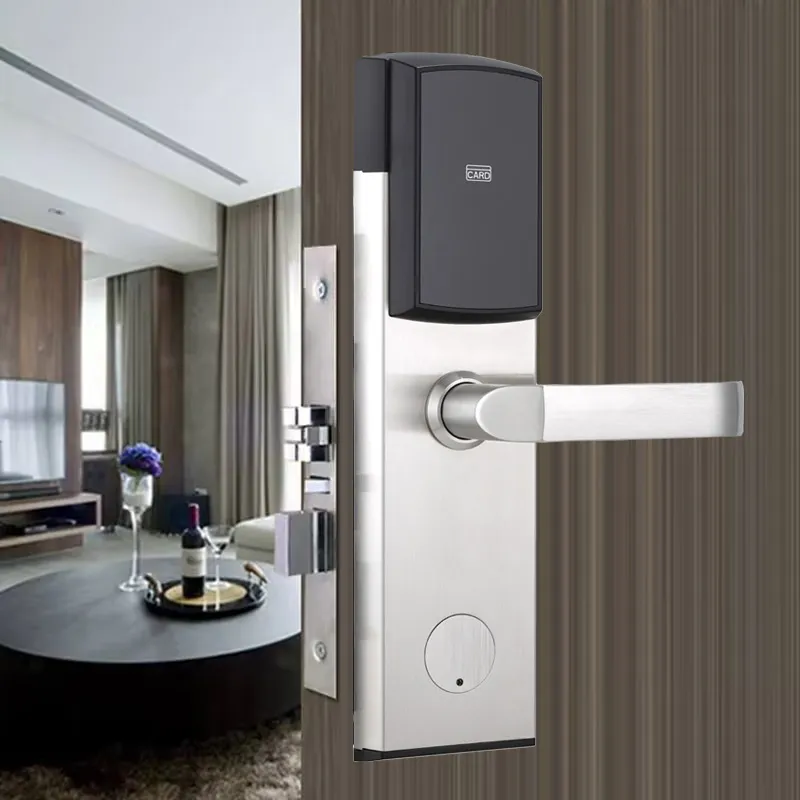

European Mortise Lock

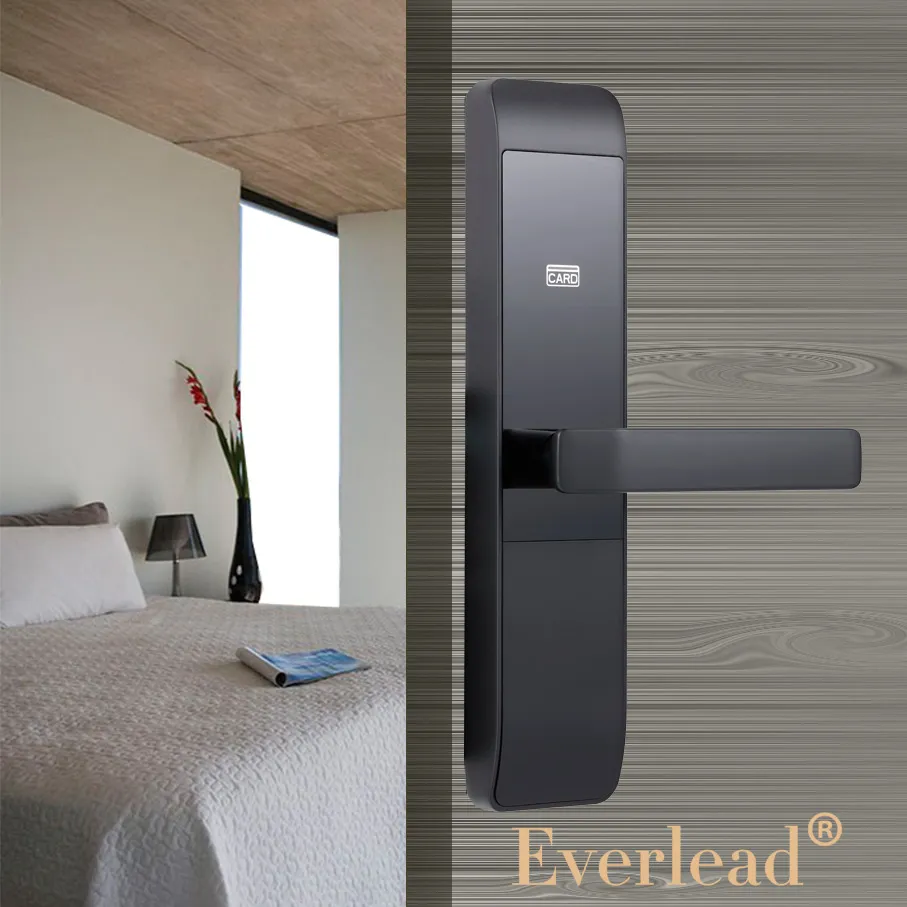

Stainless Steel Electric Lock
Hotel Sign Panel
Frequently Asked Questions
What standard of lock mortise is this?
This is the standard ANSI mortise. It is suitable for more than 90% of locks in the market, making it very easy and convenient to replace old locks with our system.
Is it difficult to install these door locks?
They are designed for easy installation. We also provide comprehensive tutorials and guides to assist you during the installation process.
Can you provide samples?
Yes, we can provide samples. The sample charge can be deducted from your total when you place a bulk order in the future.
What products can I purchase from you?
We offer a wide range of security solutions including Hotel Door Locks, Fingerprint Digital Locks, WIFI/Bluetooth Smart Locks, Face Recognition Locks, and various accessories.
What is the typical delivery timeframe?
Sample orders typically take 5-7 working days. Bulk orders are usually delivered within 25-30 working days after receipt of payment.
What kind of after-sales service do you provide?
We offer a one-year warranty covering factory defects, which includes product training, partial repairs, and technical support/spare parts during the warranty period.
