Advanced Security Solution for High-End Access Control
Our smart locking system provides the perfect answer to key management and security challenges.
| Lock core material | SUS304 Stainless steel |
| Lock body material | Electronic/mechanical cylinder |
| Operating voltage | 12VDC |
| Operating environment | Temperature (-40°C~80°C), Humidity (20%~98%RH) |
| Unlocking times | ≥100,000 times |
| Protection level | IP65 |
| Encoding digits | 128bit (No mutual opening rate) |
| Encryption Technology | Digital encoding technology & encrypted communication |
Create locks without power or wiring makes installation simpler and efficient.

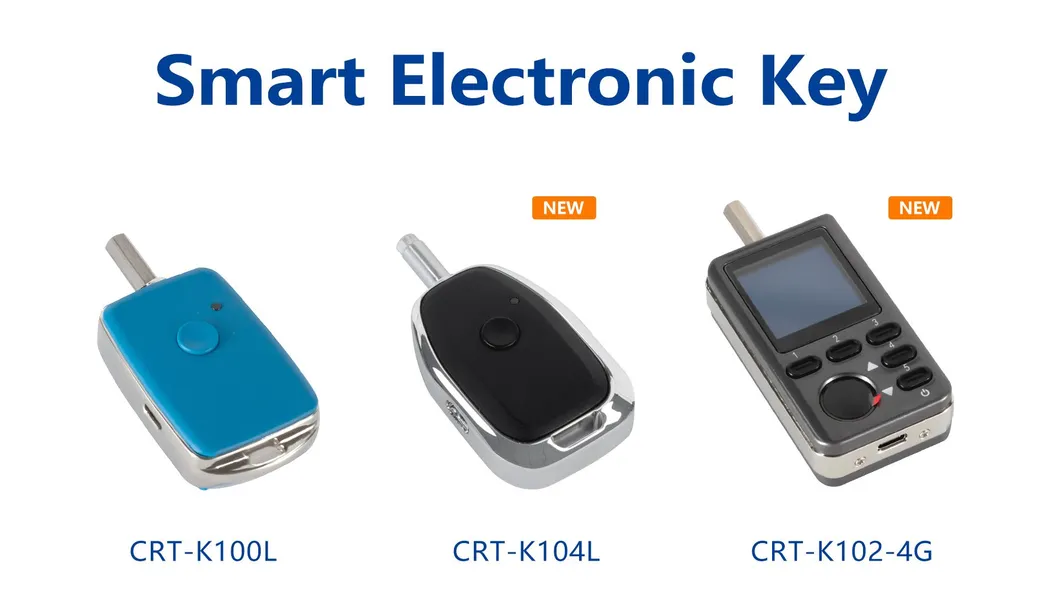

| Feature | CRT-K100L/K104L | CRT-K102-4G |
|---|---|---|
| Battery Capacity | 500mAh | 500mAh |
| Unlock Times per Charge | 1000 times | 1000 times |
| Communication | Type-C / Bluetooth | Type-C / Bluetooth / 4G |
| Fingerprint ID | × | √ |
| Visual Screen | × | √ |
| Remote Authorization | × | √ |

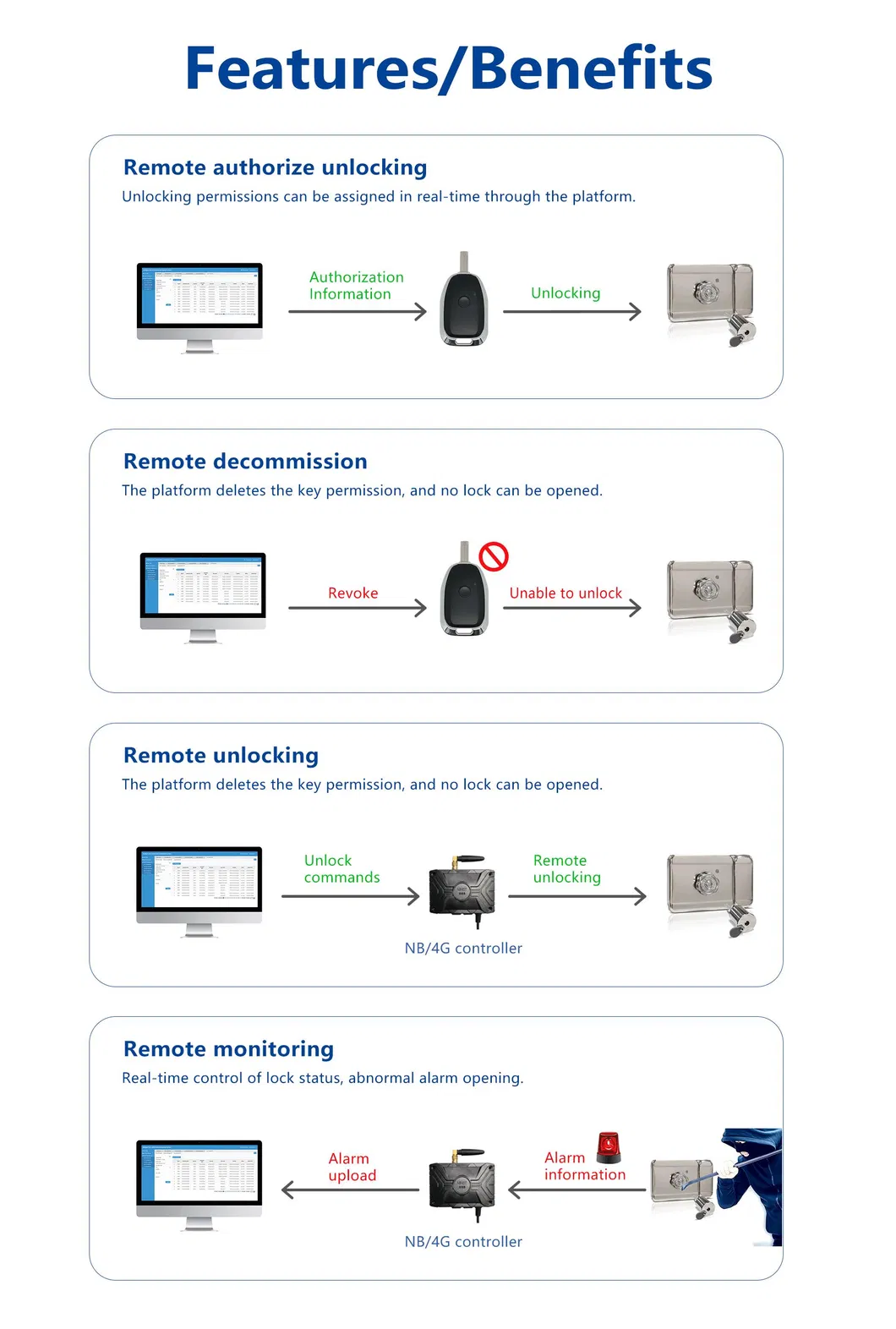

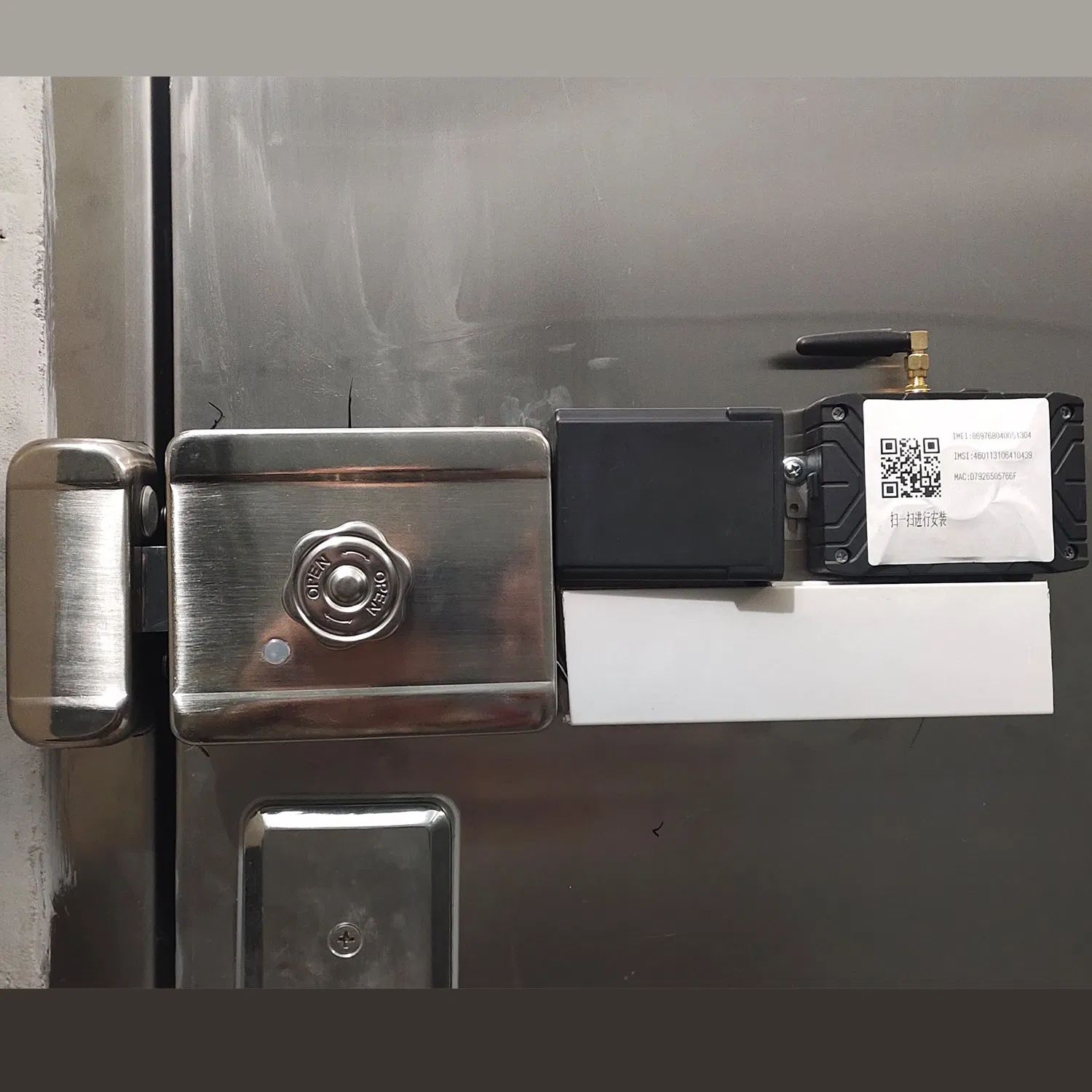

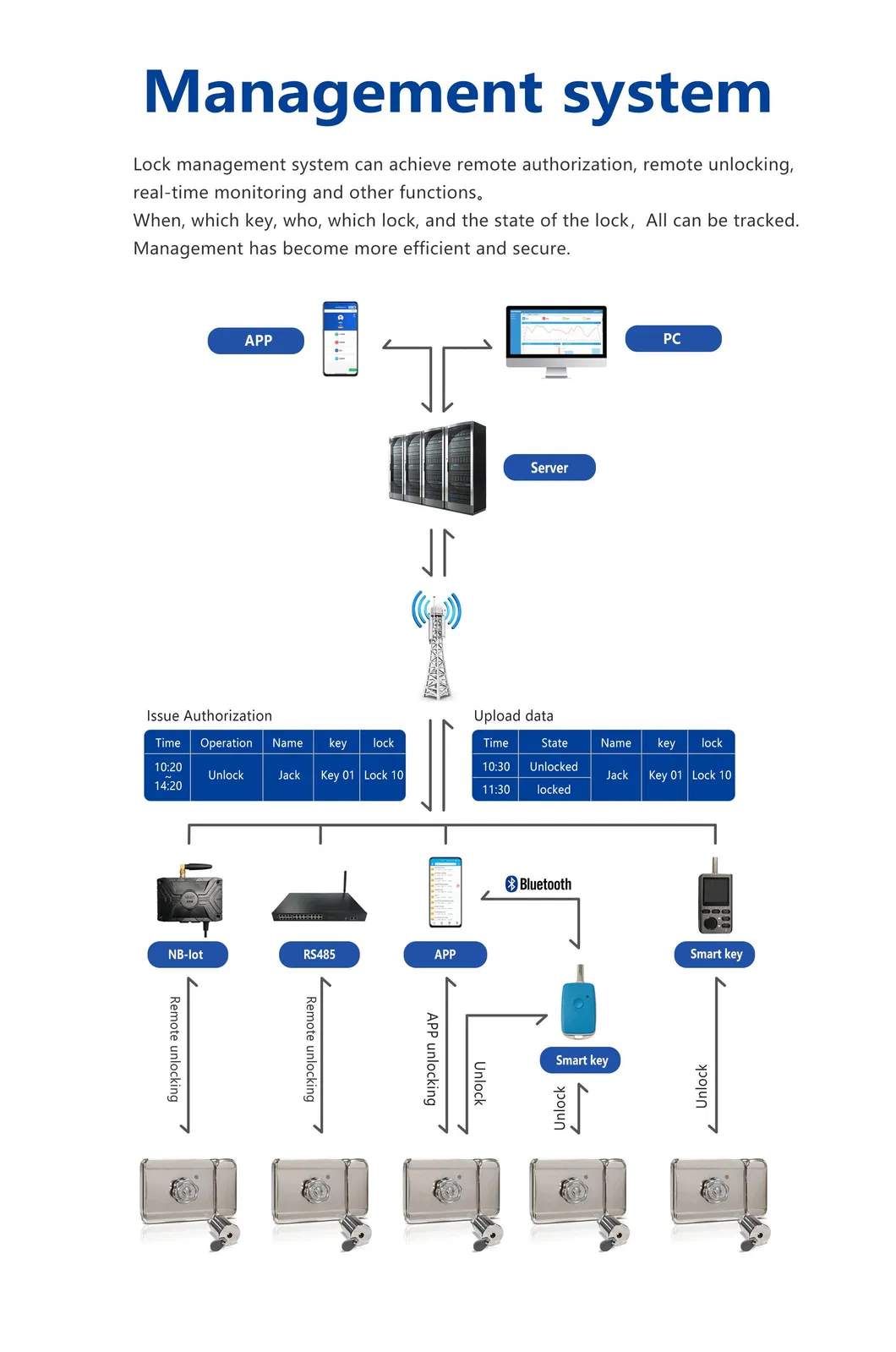

The Smart Passive Electronic Lock System is composed of passive locks, smart electronic keys, and intelligent management software. A single key can open multiple kinds of locks, and every action is recorded for tracking.

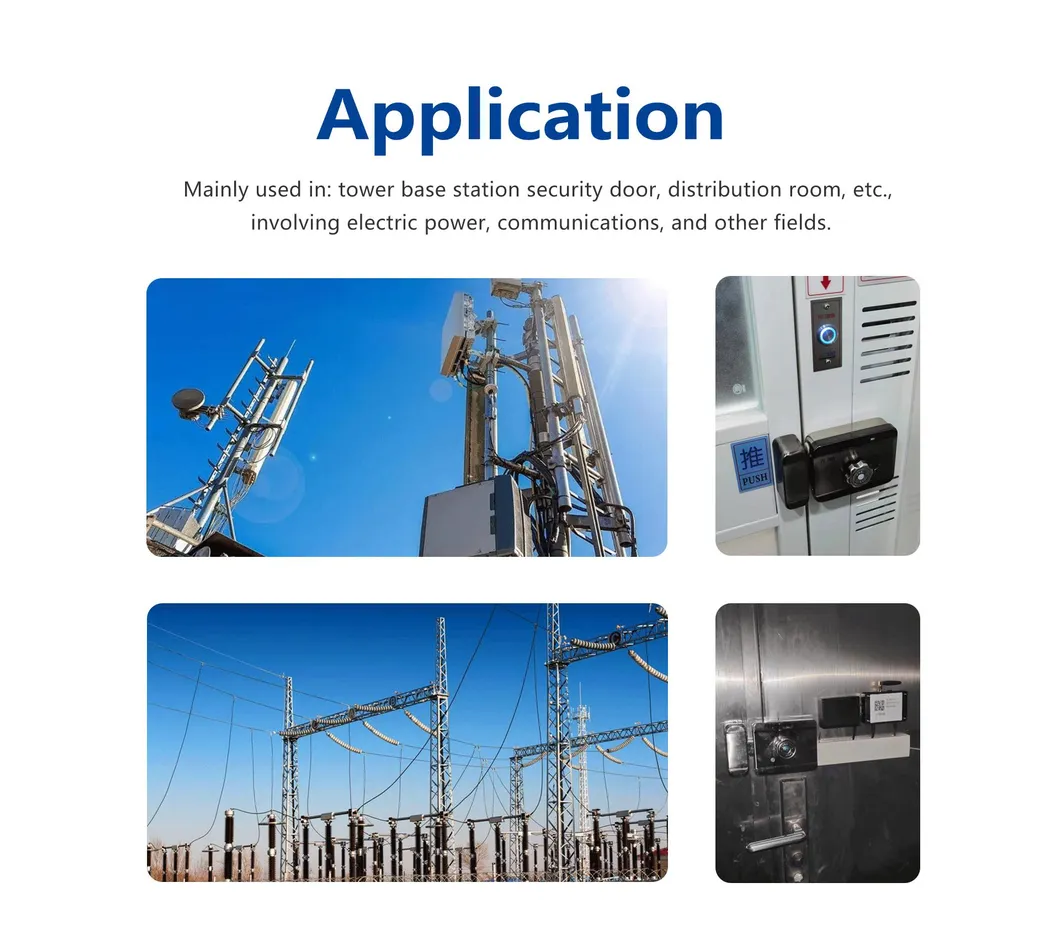

Widely used in mobile communication base stations, outdoor control cabinets, optical cable transfer boxes, and enterprise facilities. We provide solutions for telecom towers and public infrastructure.
