European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
1 / 5
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise

European Style Slim Fingerprint Digital Door Lock with 2885 Mortise

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
JCF3373
Material
Aluminum Alloy
Type
Combination Lock
Style
Modern
Shape
Mortise Door Lock
Anti-theft Standard
A
Part
Lock
Backset
3585
Door Thickness Fits
30-60mm
Lock Cylinder Length
65mm
Usage
Household Door Locks, Bedroom, Channel Lock
Color
Silver, Black
Connection
Bluetooth 4.0BLE
APP Name
Ttlock
Unlock Way
Fingerprint, Password, Card, Key, Ttlock APP
Fingerprint User
100PCS
IC Card User
13.56MHz MIFARE Card, 100PCS
Power Supply
4PCS AAA Batteries
Working Temperature
-25~70 Degree
Low Voltage Alarm
Support
Waterproof Grade
IP54
Fit Door Thickness
30-110mm
Fit Door Type
Wooden Door, Aluminum Door, Steel Door
Transport Package
OEM Box
Origin
China
HS Code
8301400000
Production Capacity
100000PCS/Month
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
3.000kg
Lead Time
3 days (1 - 100 Pieces)
To be negotiated (> 100 Pieces)
Product Description
European Style Slim Fingerprint Digital Door Lock with 2885 Mortise
  • Advanced 5-in-1 Keyless Entry Smart Door Lock: Smart phone + Fingerprint + Code + Card + Key.
  • Support Mortise: 3585, 4085, 4585, 5085, 6085, 7085.
  • High Quality: Built with robust zinc alloy.

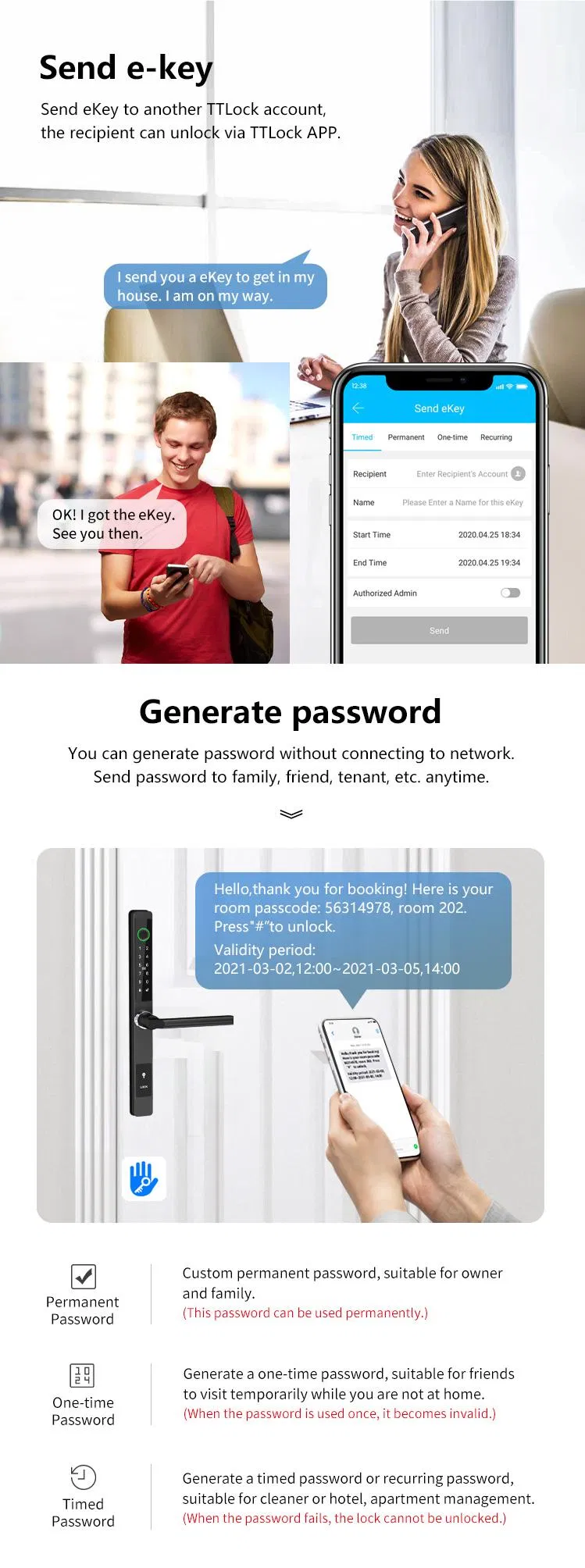

  • Tuya WiFi App: Supports remote control and unlock records access. The unlock password can be authorized through the App with customizable validity periods.
  • Fast Access: Recognizes your fingerprint in just 0.5 seconds, and unlocks in 1 second. Faster than using keys.
  • Emergency Power: Unlock your Smart Lock using a portable charger when it is out of power.

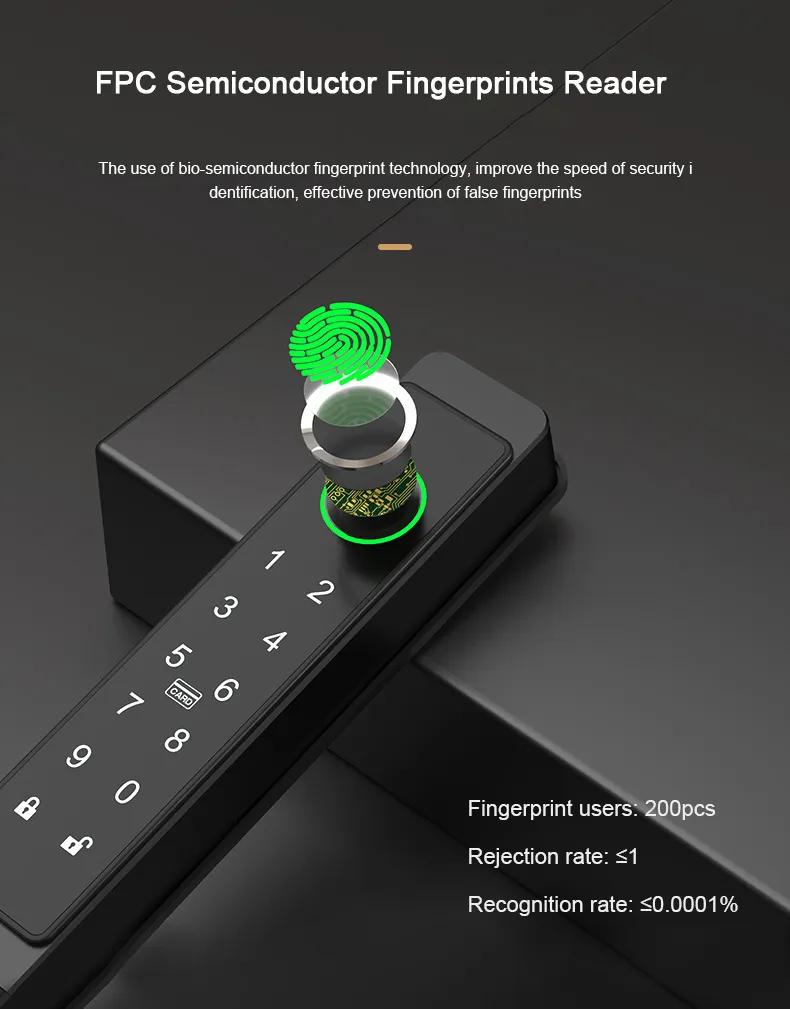

  • FPC Fingerprint Reader: Delivers optimal security performance.
  • Compatible Door Types: Wooden door, stainless steel door, bronze door, double door, and old-fashioned security doors.
  • Warranty Service: 1-year warranty and free lifetime technical support.
  • OEM/ODM Support: Ready to customize branded products according to your requirements.

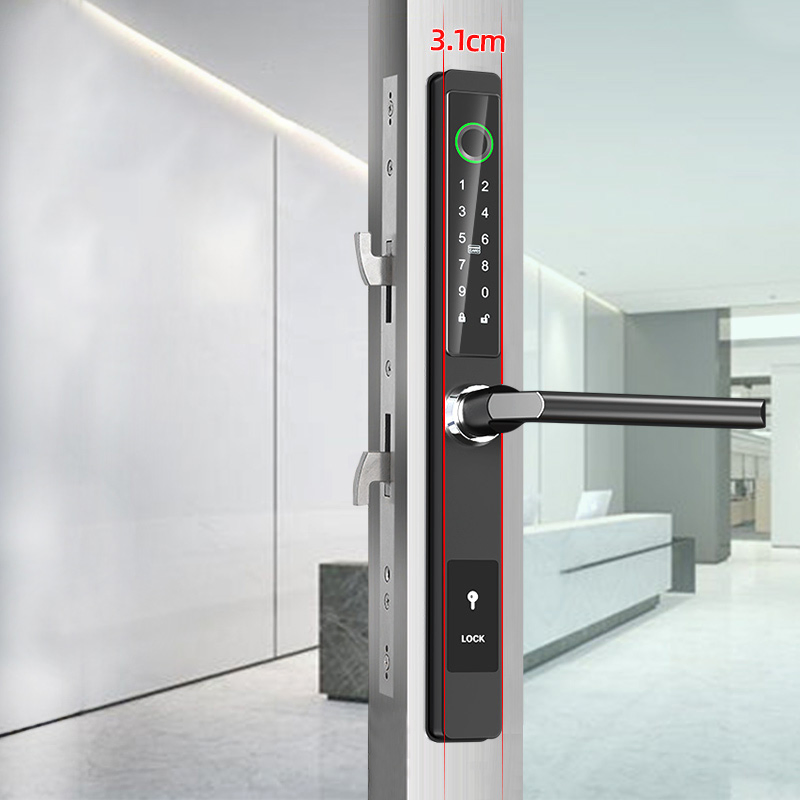

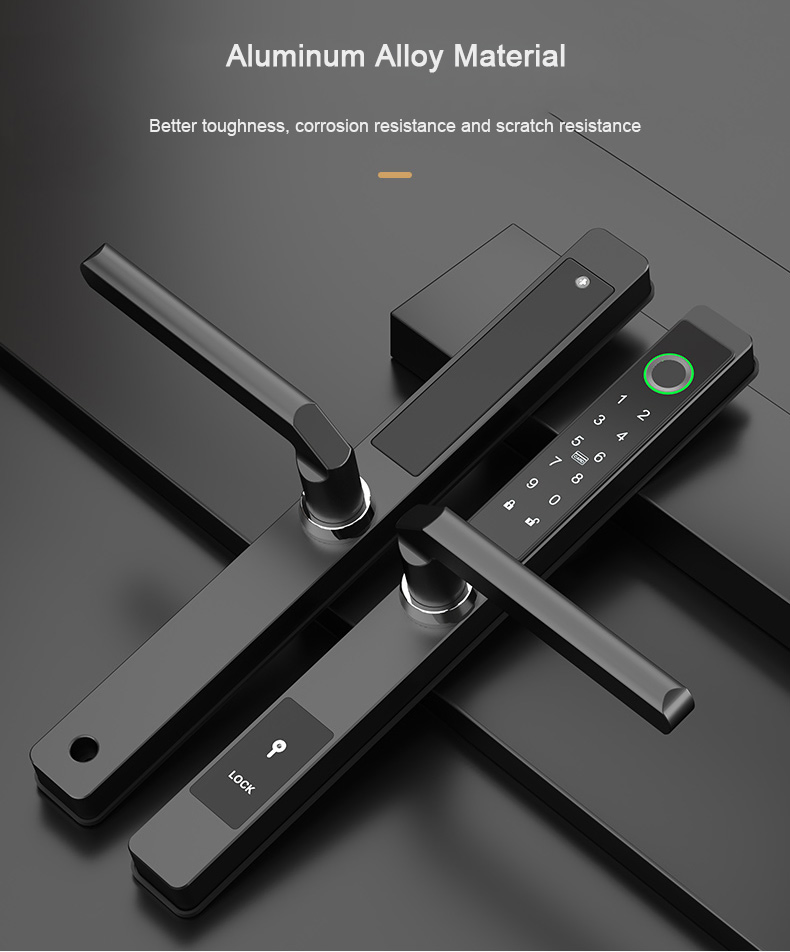

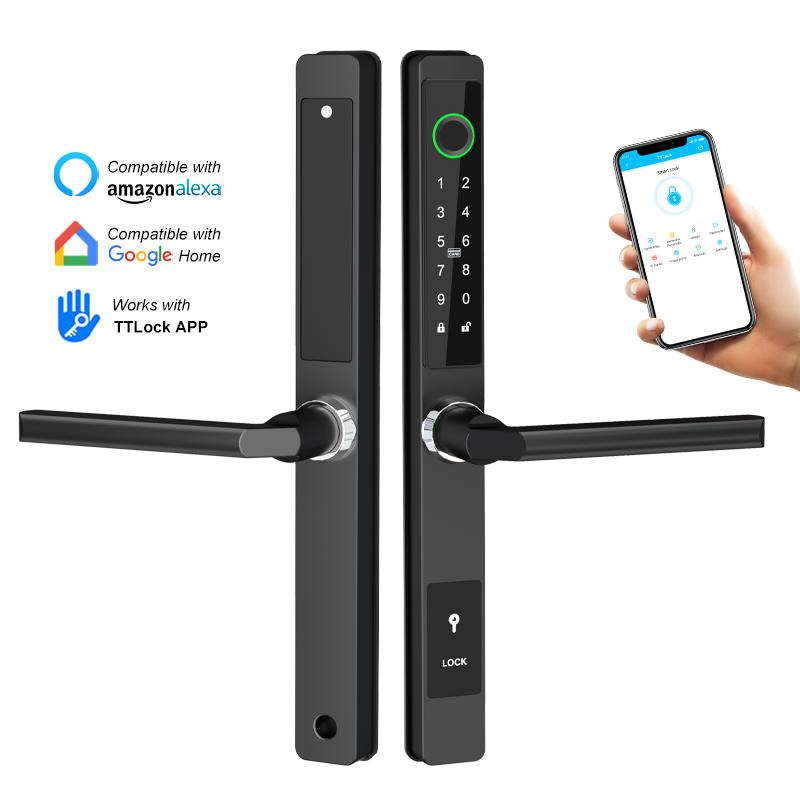

European Style Slim Fingerprint Digital Door Lock with 2885 Mortise Product Front View

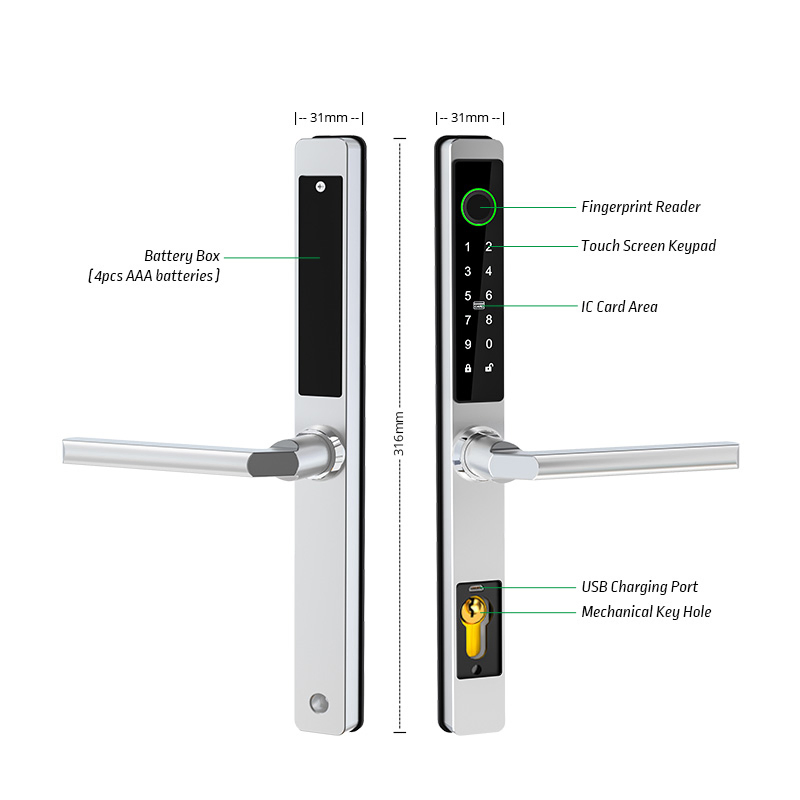

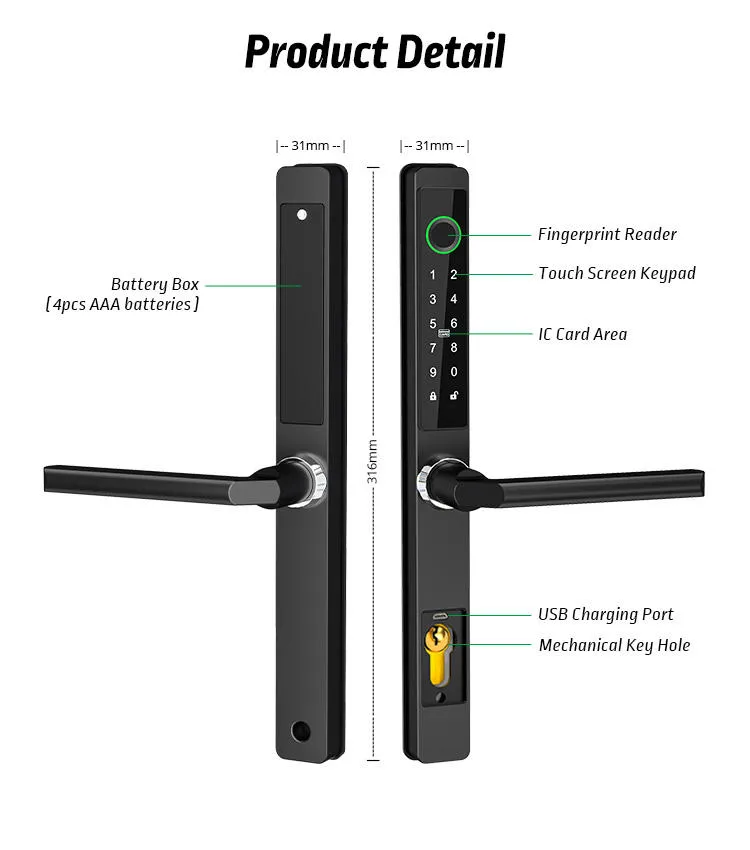

European Style Slim Fingerprint Digital Door Lock Dimension Details
Specification Details
Material Aluminum alloy

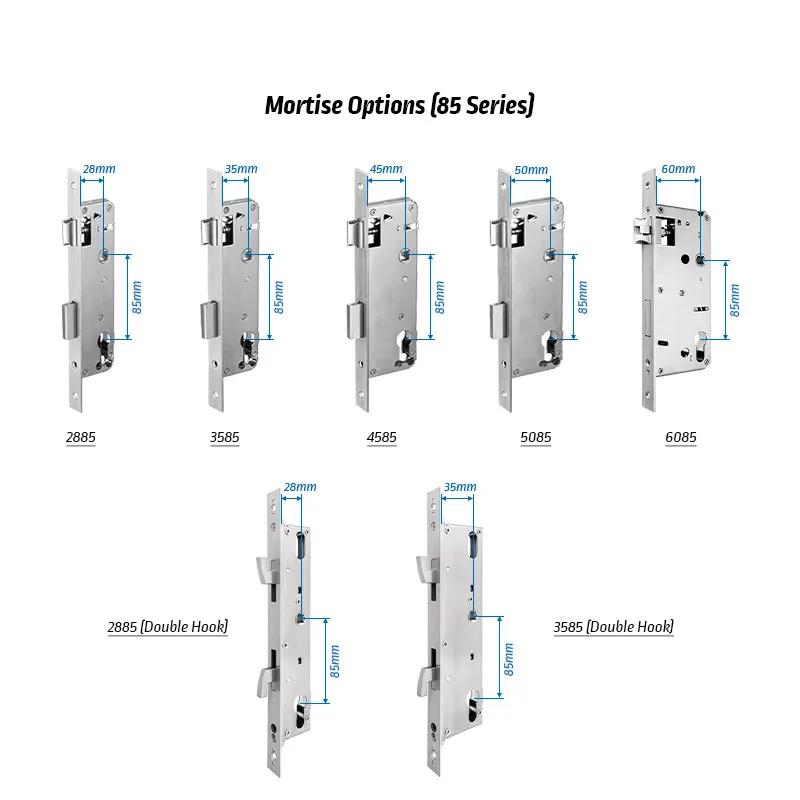

Mortise 2885/ 3085/ 3585/ 4585/ 6085/ 7085
Unlock way Fingerprint, password, card, keys, TTlock app
Fingerprint users 100pcs
Password users Fixed password: 100pcs
Temporary password: unlimited
IC card users 100pcs
Card type 13.56mhz mifare card
App name TTlock
Support OS Android 5.0/ IOS7.0 above
Connection Bluetooth 4.2, Wifi
Power supply 4pcs AAA batteries
Working current 85~145mA
Working temperature -25~70°C
Working humidity 10%~95%RH
Waterproof grade IP54
Fit door thickness 30-110mm
Smart door lock application scenario
Access control systems display
Installation blueprint details
Structure and component assembly list

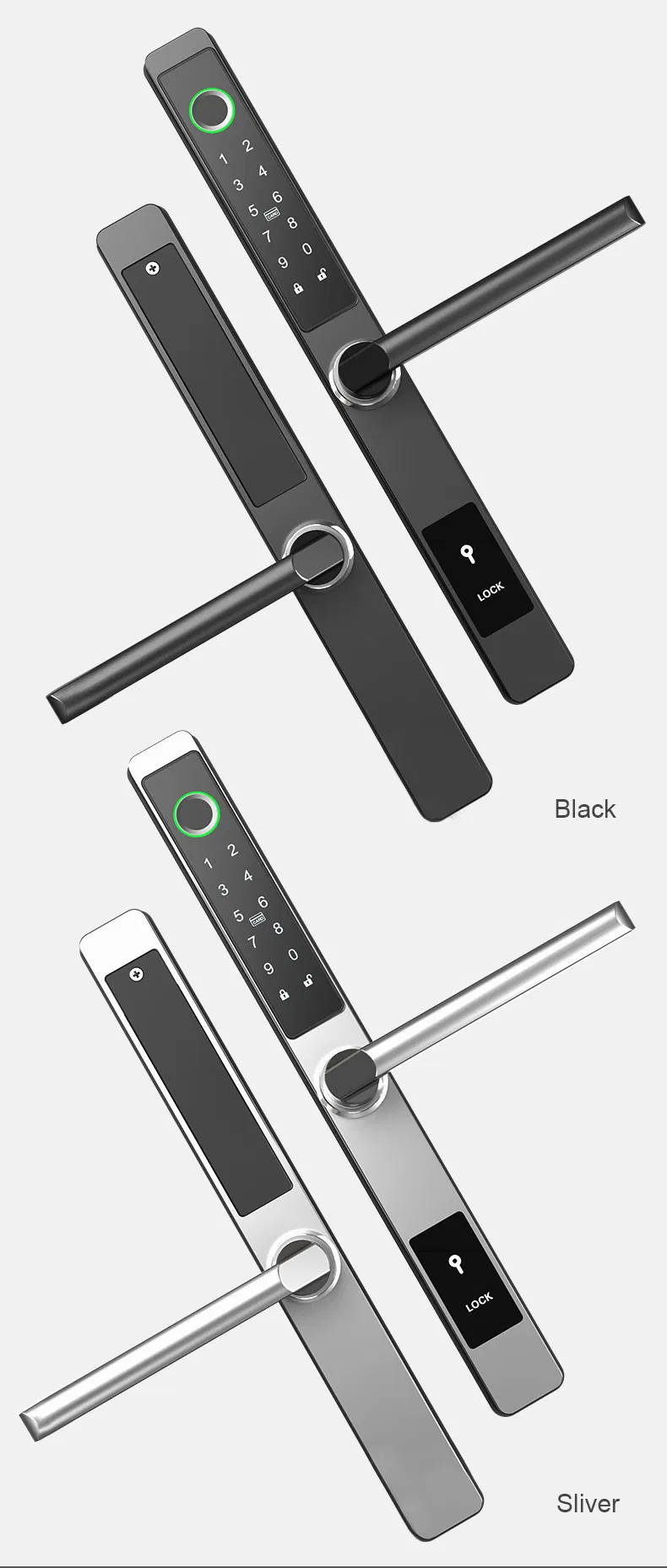

Multiple color options of the smart lock
Application of smart door locks on home doors
Slim design handle integration details
Fingerprint scanning layout display
Waterproof test demonstration
Packaging specifications details
Frequently Asked Questions

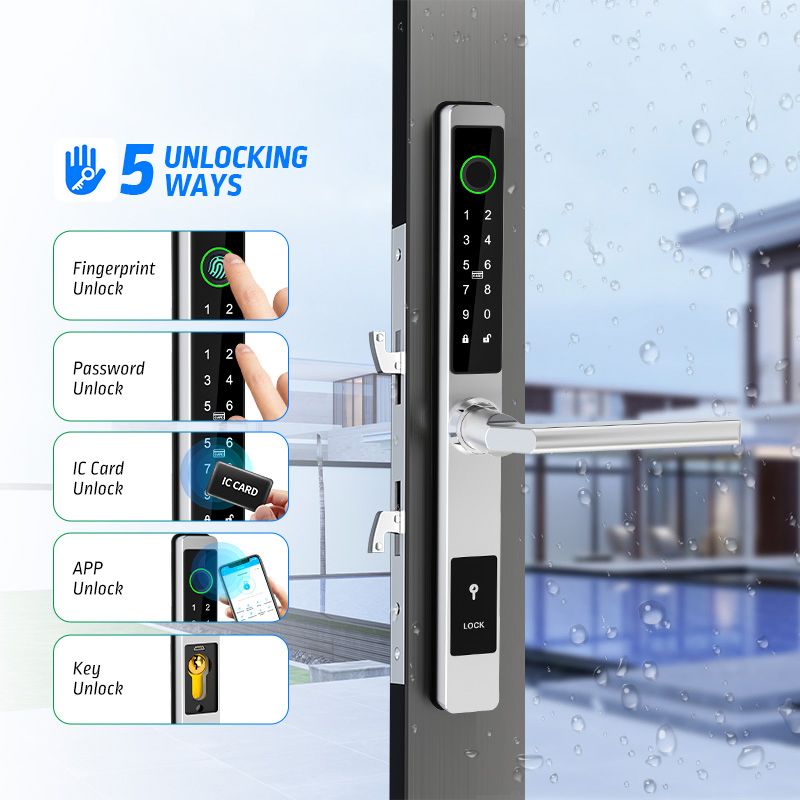

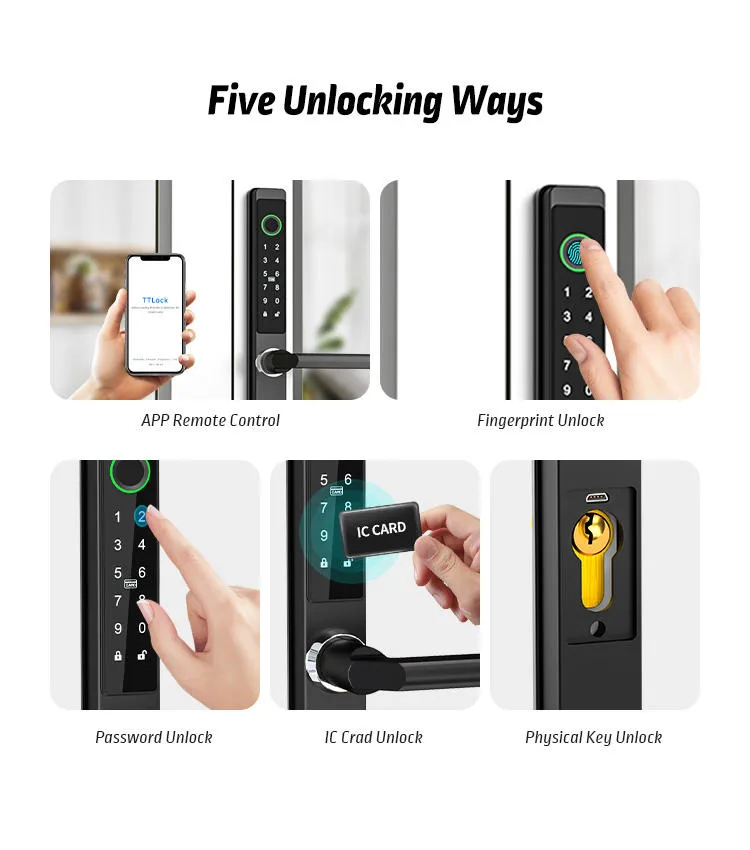

What access methods does this digital lock support?
This smart door lock features a 5-in-1 keyless entry system. You can unlock it using a smartphone app (TTlock/Tuya), fingerprint recognition, dynamic passcode, IC card (13.56MHz MIFARE), or a traditional mechanical backup key.
Is this lock compatible with narrow frame or European style doors?
Yes, this lock features a slim profile design specifically tailored for European style doors. It supports multiple mortise sizes, including 2885, 3085, 3585, 4585, 6085, and 7085.

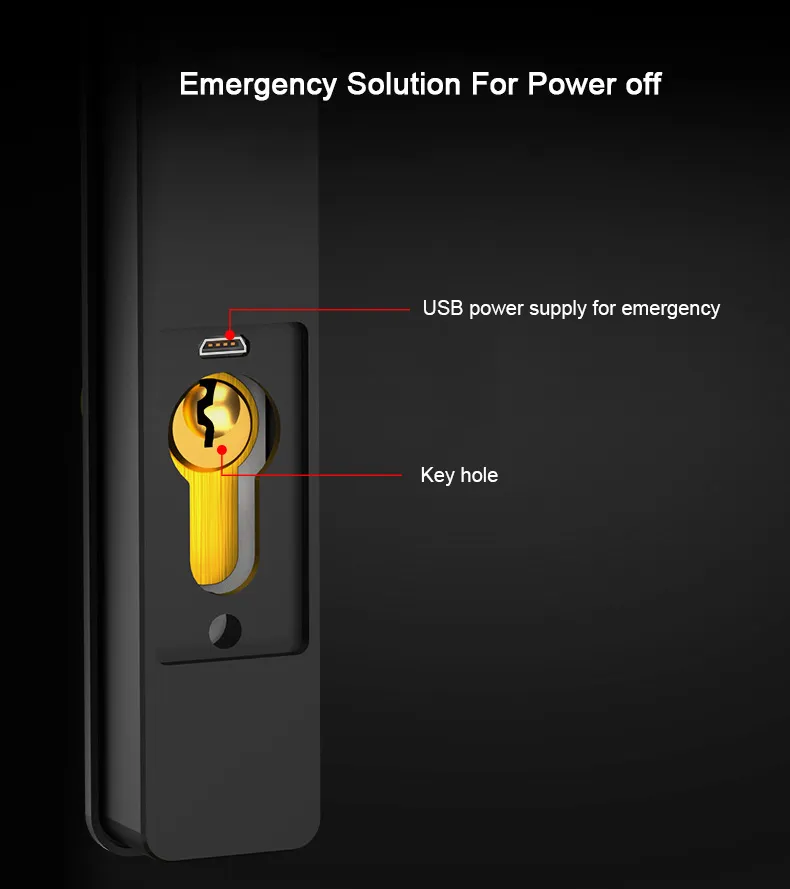

How does the emergency power supply feature work?
If the 4 AAA batteries run out of charge, you can plug in a portable power bank using a micro USB cable to temporarily power the lock and gain access, or simply use the physical override key.
What door thicknesses and materials is this lock suitable for?
The lock is designed to fit door thicknesses ranging from 30mm to 110mm. It works with a wide variety of door types, including wooden doors, aluminum profile doors, steel doors, bronze doors, and double doors.
How many user fingerprints and cards can the lock register?
The system can store up to 100 unique fingerprint profiles and up to 100 IC cards. You can also configure up to 100 fixed passwords, while temporary password generation remains unlimited.

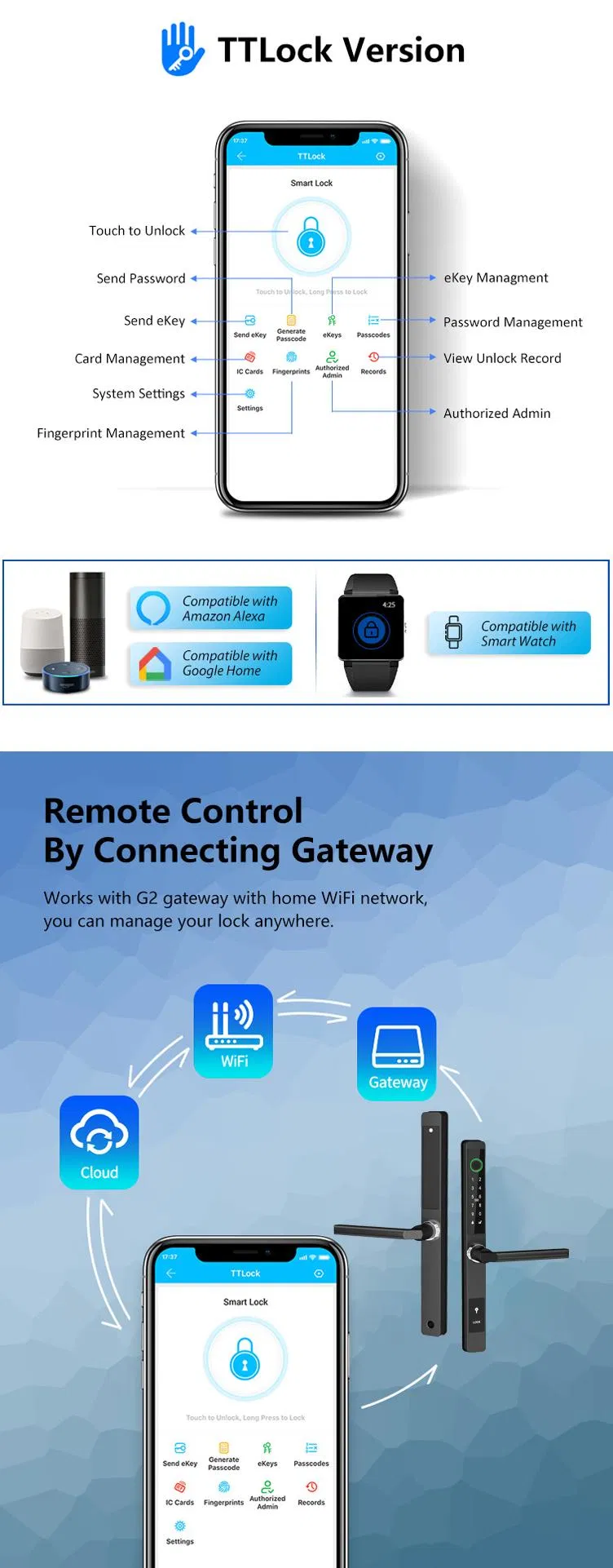

What application options are available for remote management?
The smart lock is compatible with the TTlock and Tuya apps, supporting Bluetooth 4.2 and Wi-Fi connectivity. This allows users to check access logs, monitor unlock records, and manage temporary passwords remotely.
