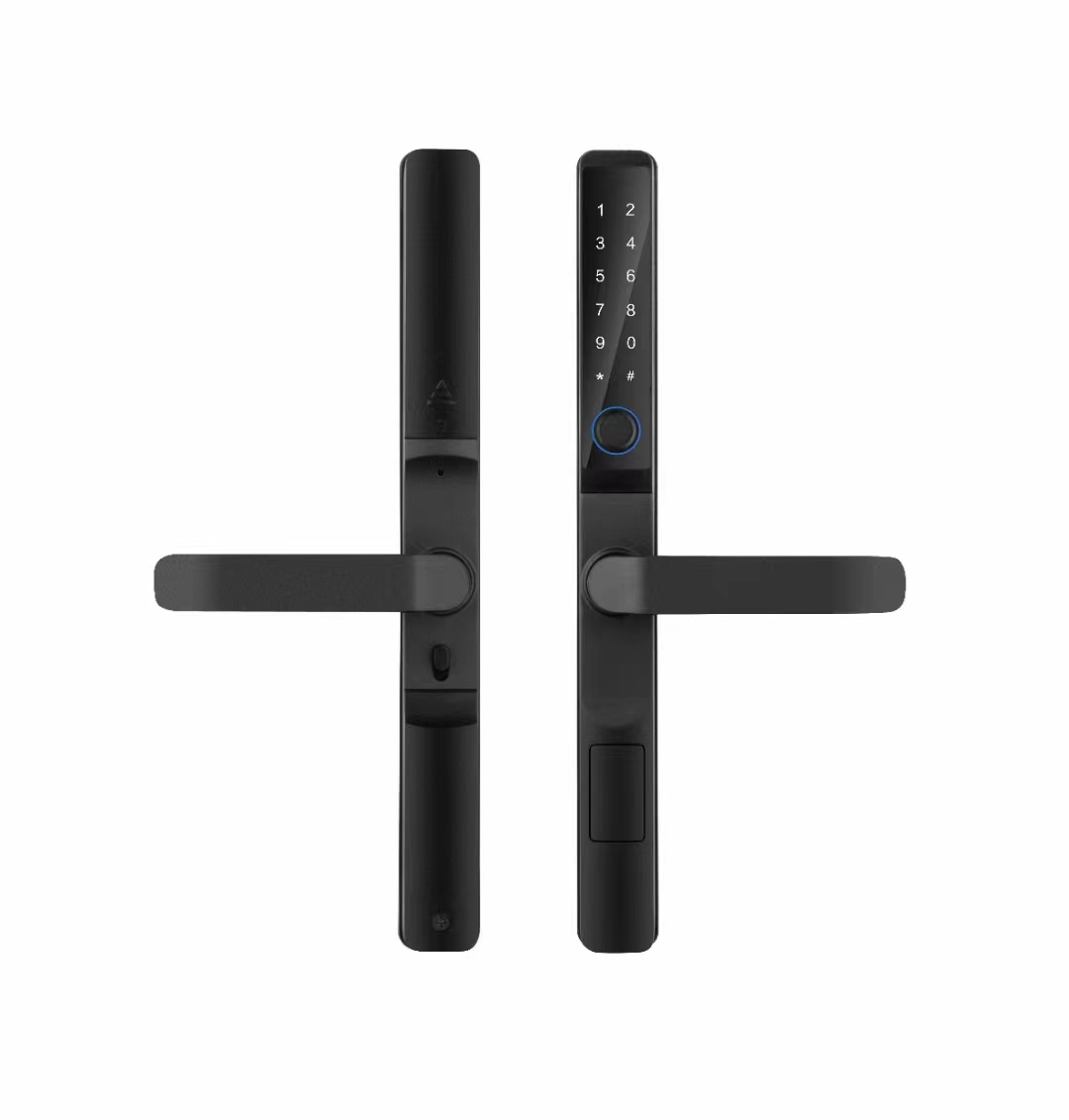

Slimline Aluminium Lock Waterproof IP66 - Euro 85mm/92mm Centres Mortise TUYA & TTLock Universal Narrow Smart Door Lock
Product Parameters
- Color: Black / Silver
- Material: High-quality Aluminum alloy

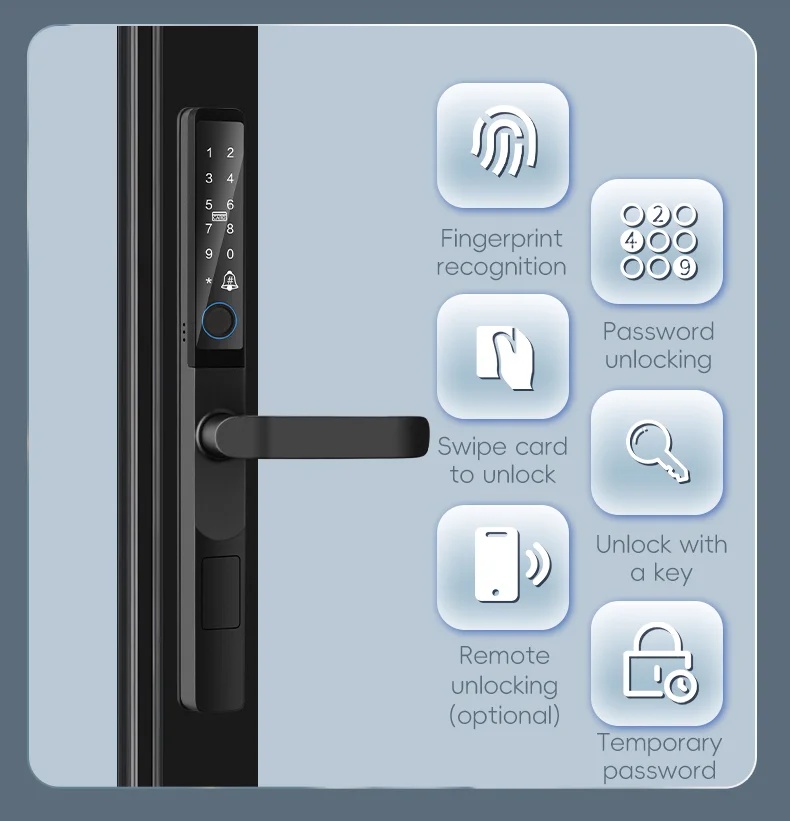

- Unlock Ways: Fingerprint, Password, Card, Mechanical Key, Tuya WiFi or TTLock App
- Door Thickness Compatibility: 40mm - 75mm
- Battery Power: 4 * AAA Batteries

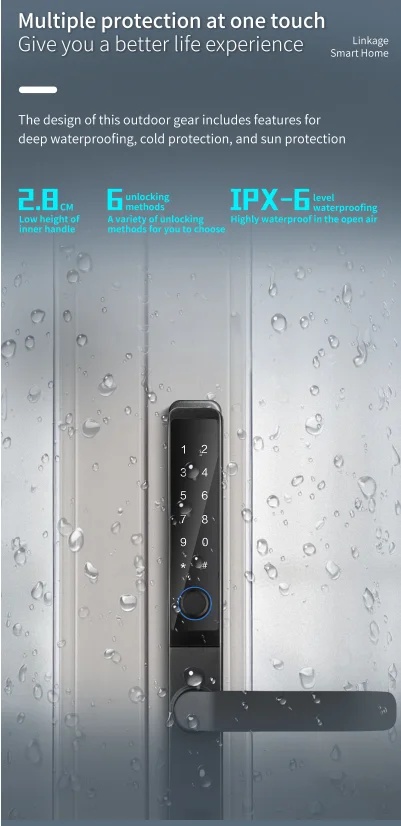

- Waterproof Rating: IP66
- Product Size: 30mm * 315mm * 20mm
- Mortise: Default 3585 included (92mm compatible)
- Handle Options: Long handle and short handle
- Working Temperature: -35°C ~ 55°C
💡 Compatible with Israel 90mm mortise for smart door locks.
💡 Anti-lock function: When engaged, the handle cannot be pressed from the inside to unlock.

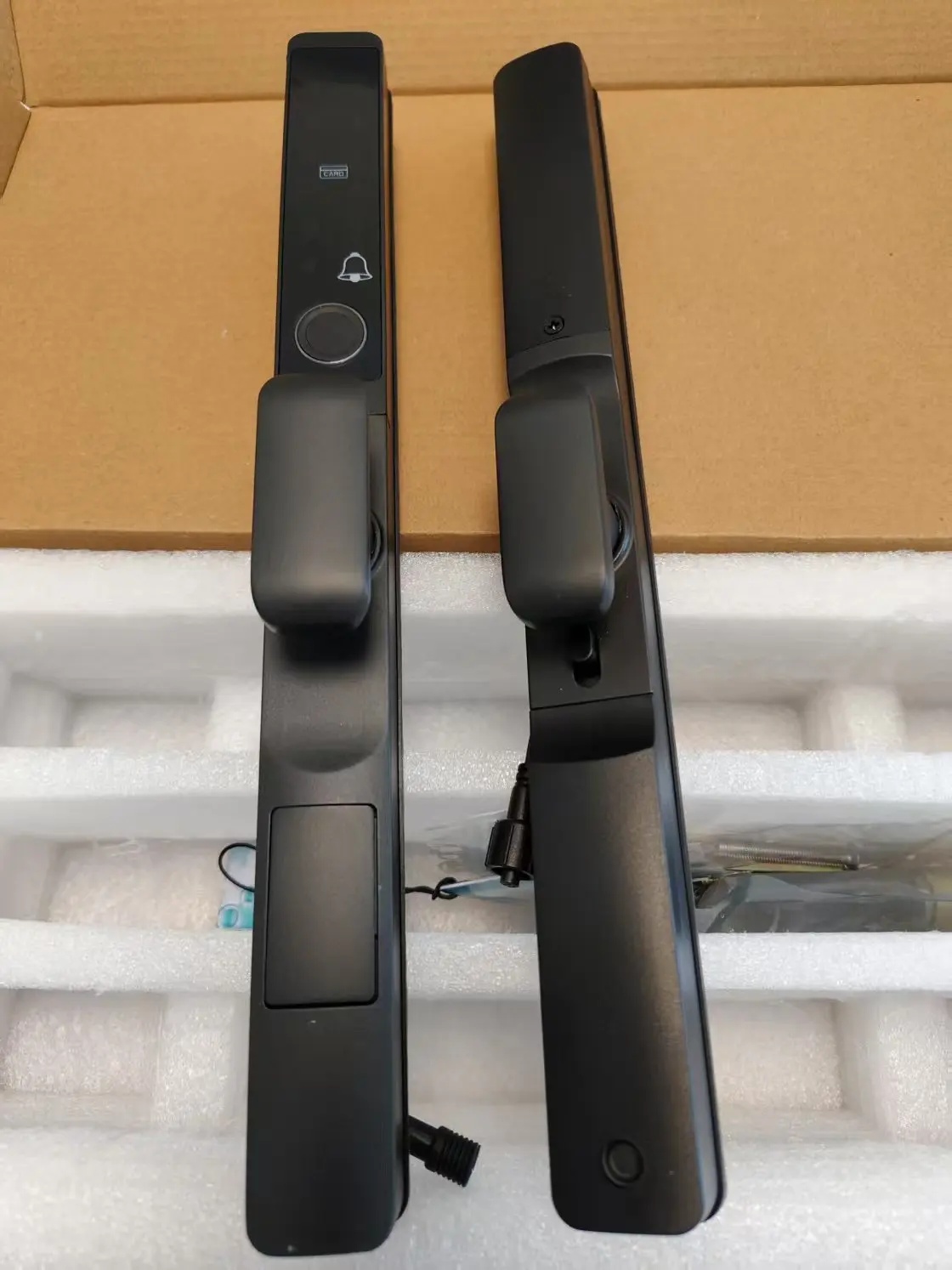

Handle Options

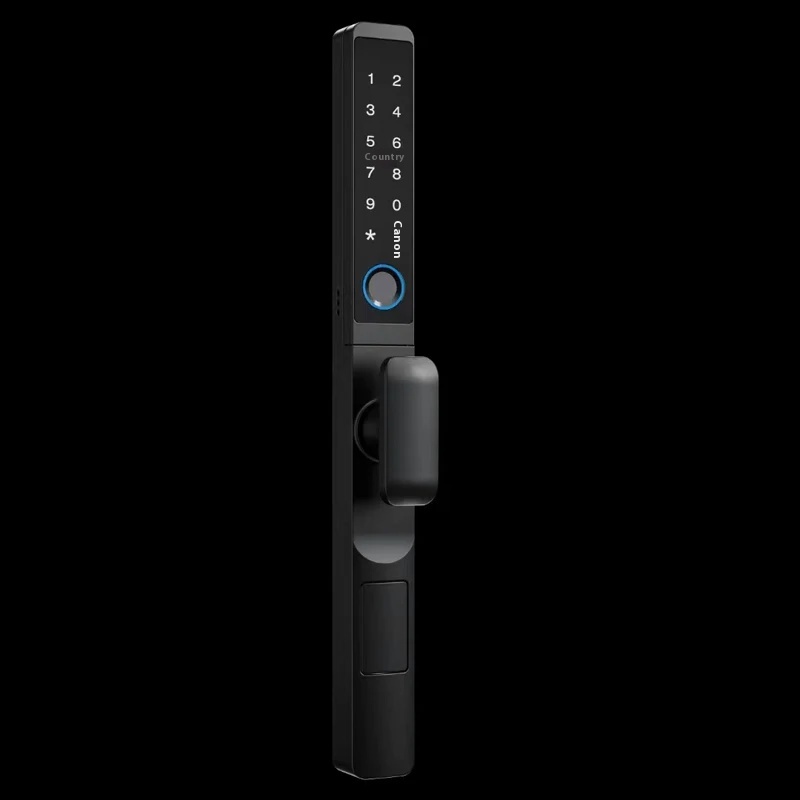

This model is available with a short handle configuration for specific door designs.

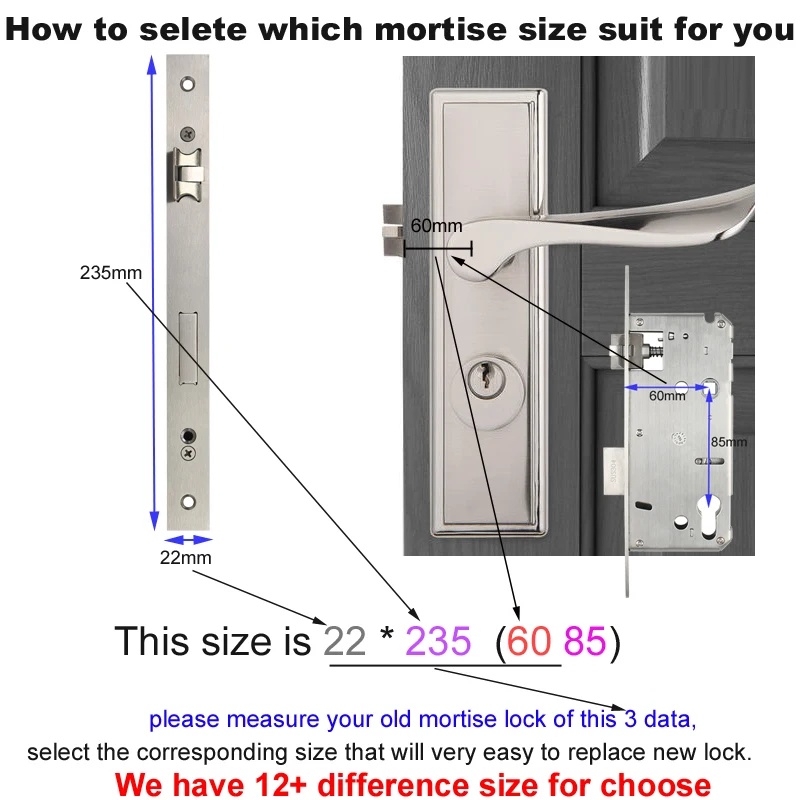

Mortise Selection Guide

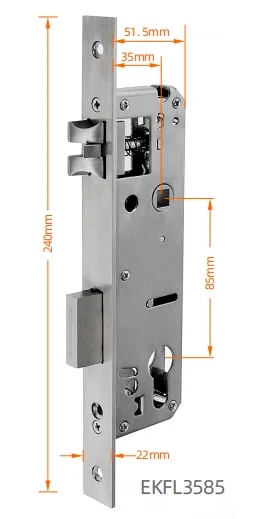

1. 85mm Regular Mortise
The 85mm regular mortise is a single point type. If you require a specific backset or multi-point type, please specify your requirements.

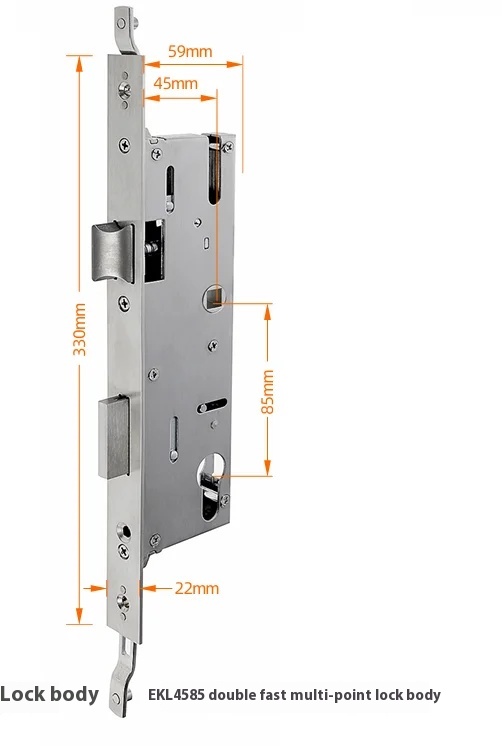

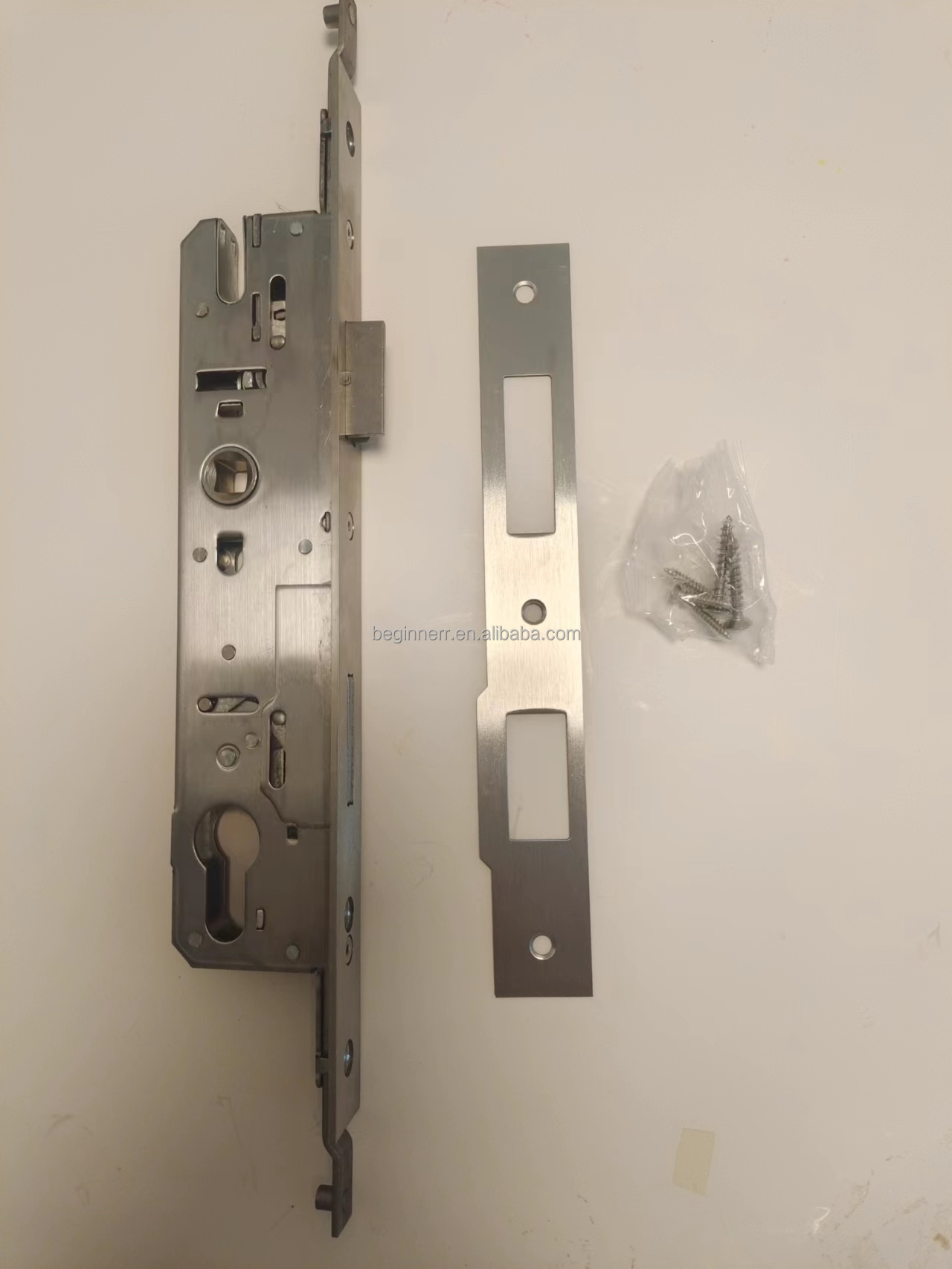

2. 4585 Multi-point Mortise (22*330mm)

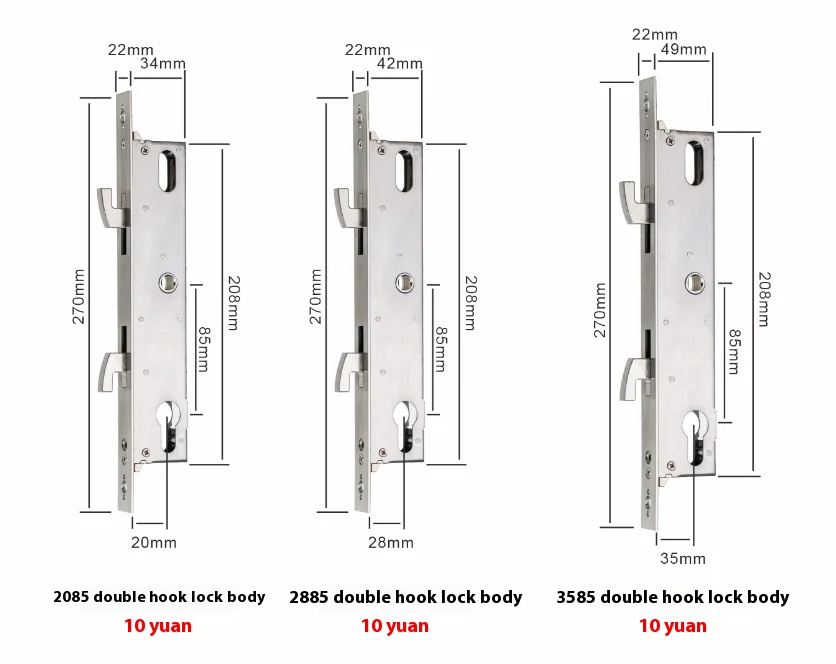

3. Double Hook Mortise for Sliding Doors (22*270mm - 3585)
4. 3092/3592 Regular and Multi-point Mortise (22*270mm / 22*330mm)
Note: If you are replacing a mechanical lock, ensure you select the appropriate smart mortise, as standard mechanical mortises may not be compatible with smart electronic functions.

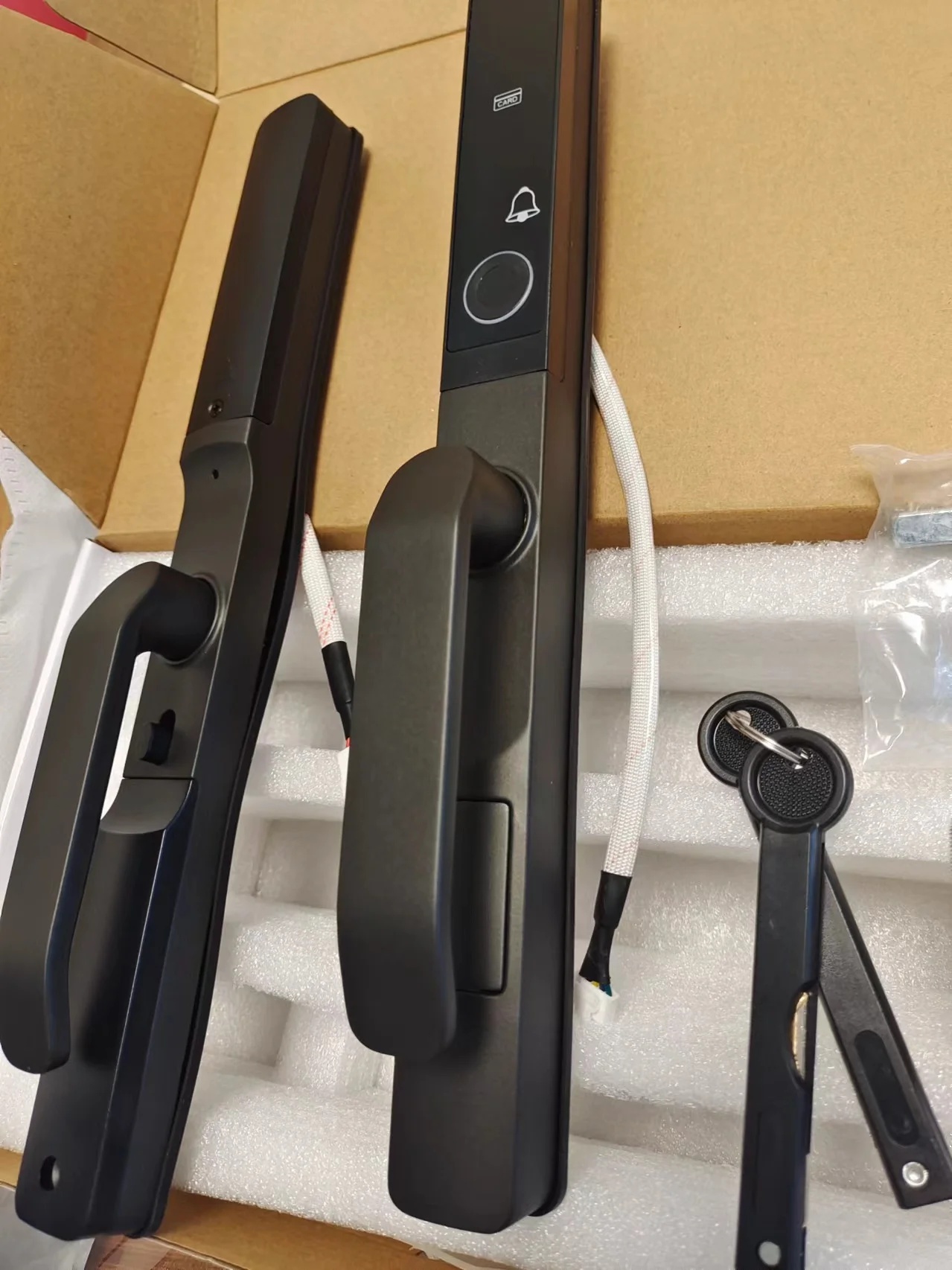

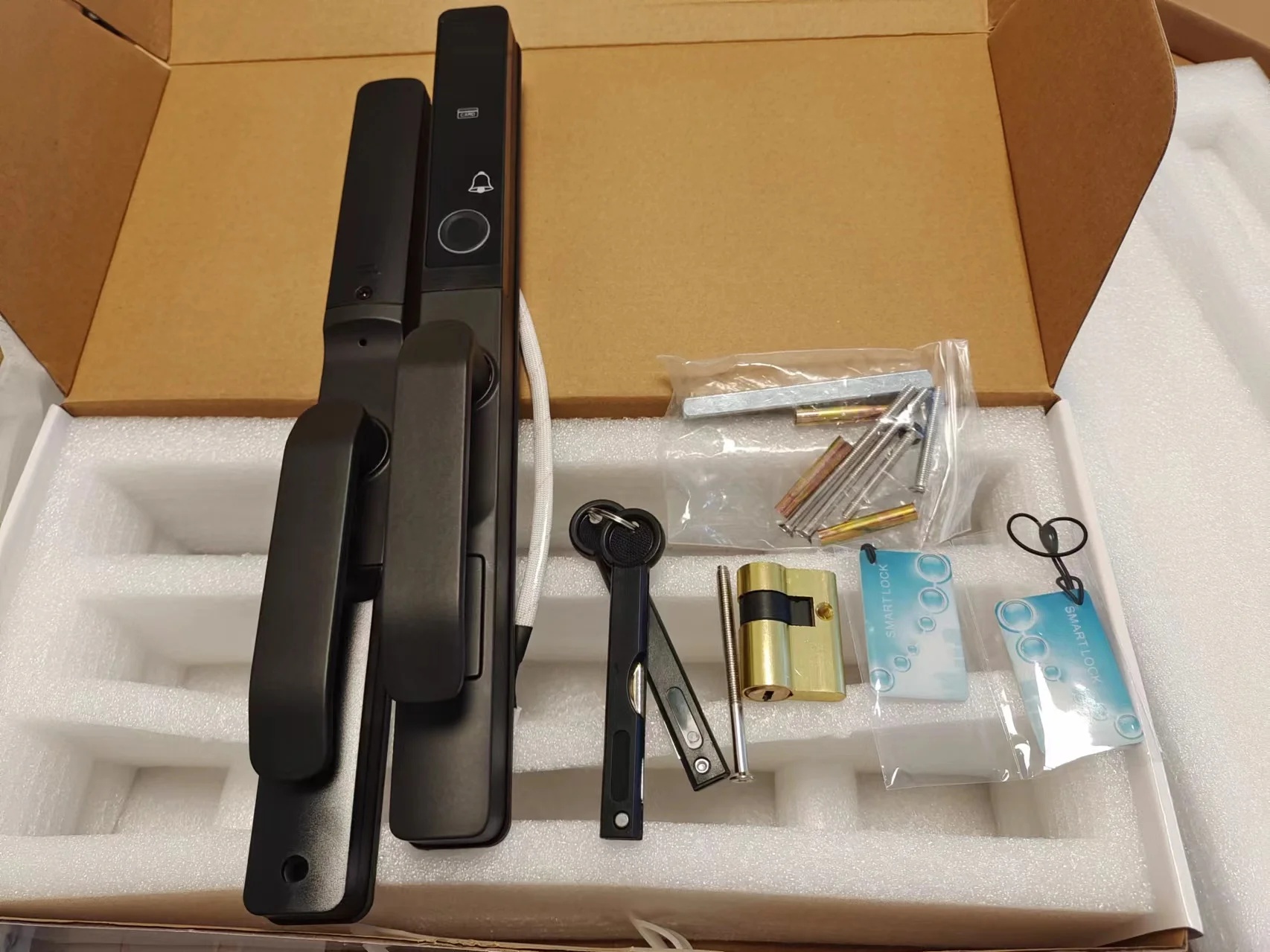

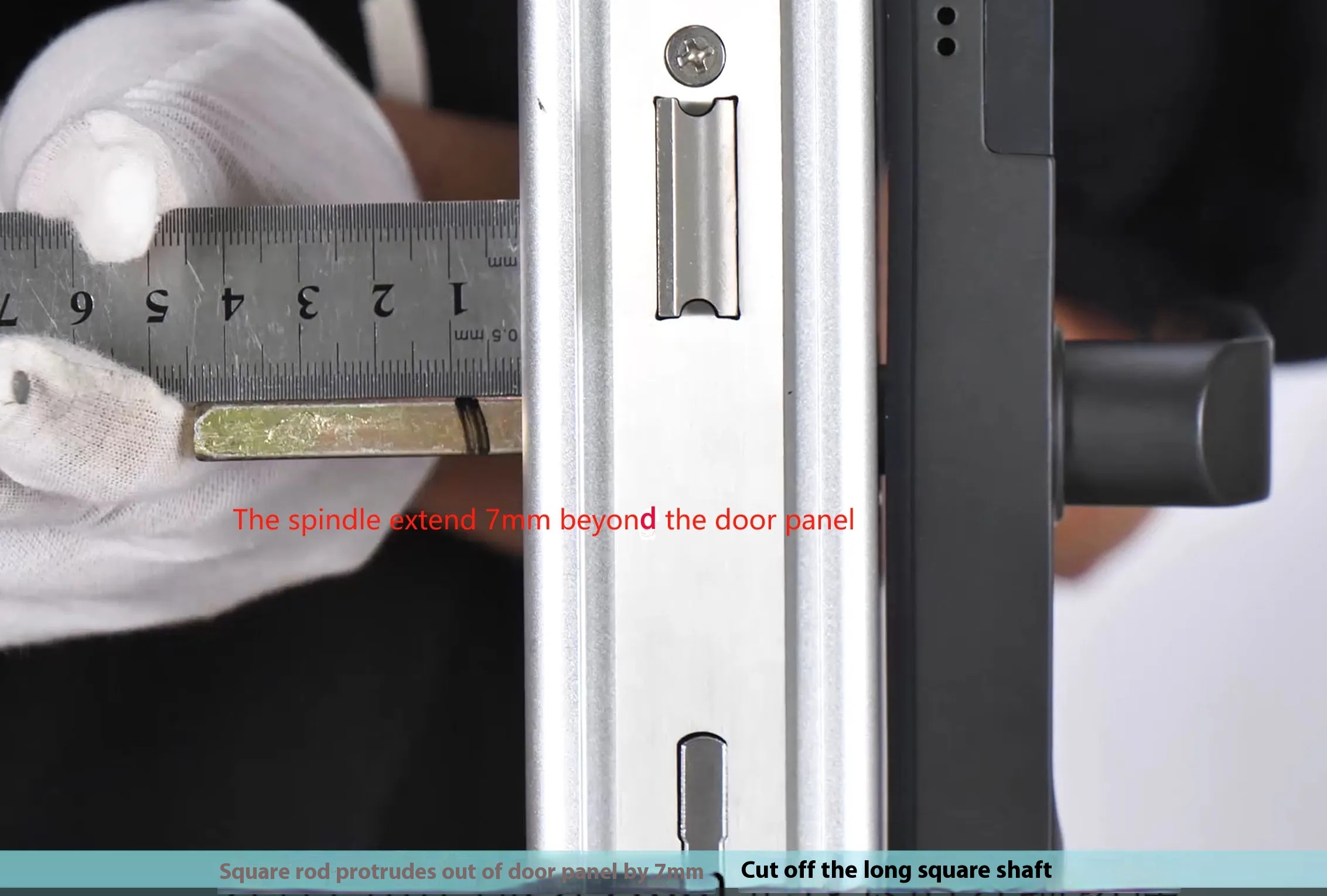

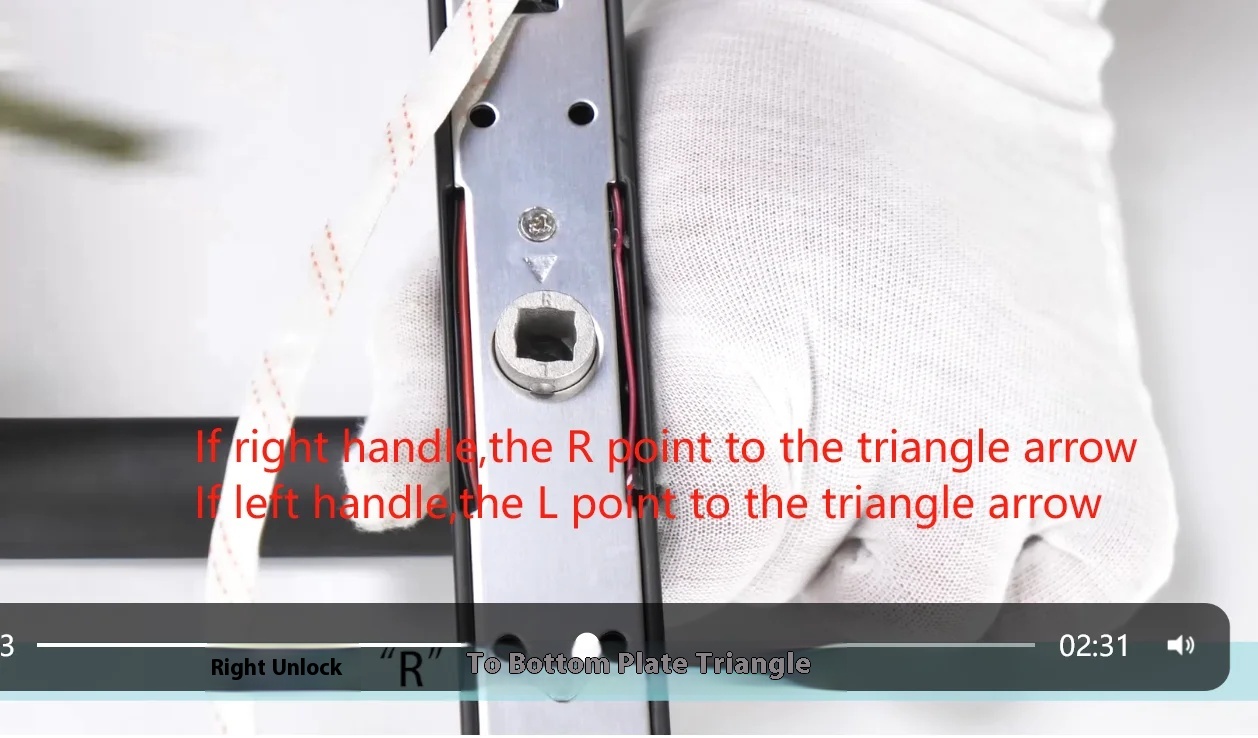

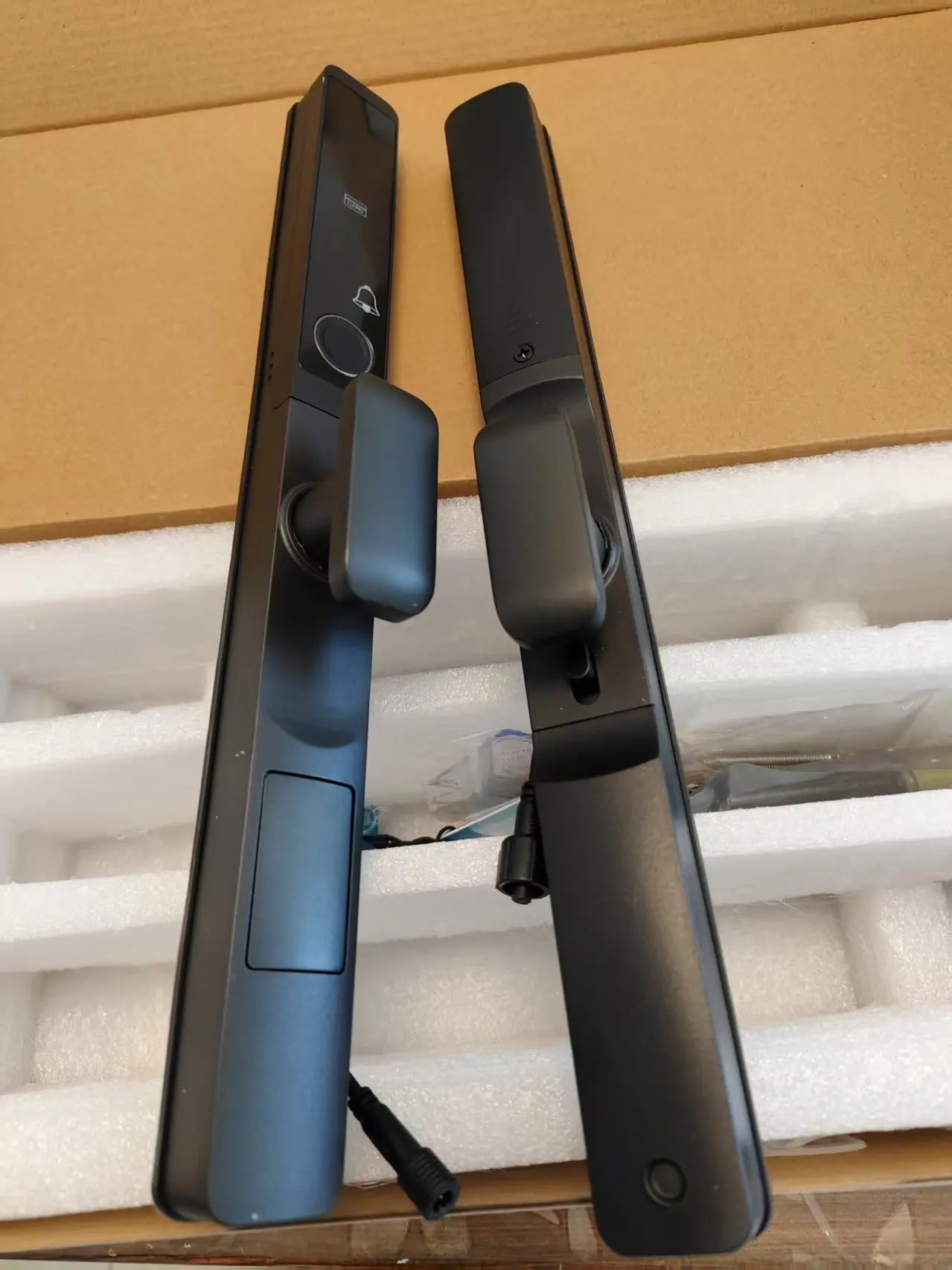

Installation Instructions
Specifications
| Data Storage Options | Cloud |
| Network | WiFi, Bluetooth |
| Lock Cylinder Grade | Grade C |
| Smart App Support | Tuya and TTLock App |
| Door Type Compatibility | Glass door, Sliding door, Grill door, Wooden door, Steel door, UPVC door |
| Model Number | A30 |
| Material | Aluminum Alloy |
Frequently Asked Questions
Q1: Is this smart lock suitable for outdoor use?
Yes, the lock features an IP66 waterproof rating and can operate in temperatures ranging from -35°C to 55°C, making it ideal for exterior doors.
Q2: What types of doors can this lock be installed on?
Its slim design (30mm width) makes it perfect for narrow-frame doors, including Aluminum, UPVC, sliding doors, grill doors, and standard wooden or steel doors.
Q3: How many ways can I unlock the door?
You can unlock the door using your fingerprint, a custom password, an IC card, a physical emergency key, or remotely via the Tuya or TTLock smartphone applications.
Q4: What happens if the batteries die?
The lock is powered by 4 AAA batteries. If they run out, you can use the physical emergency key or provide temporary power via a power bank to the emergency USB port.
Q5: Can I use my existing mortise with this smart lock?
While it is compatible with many 85mm and 92mm centres, we recommend using our specialized smart mortise to ensure full electronic functionality and security.
Q6: Does it support multi-point locking systems?
Yes, we provide various mortise options including 22*330mm and 22*270mm multi-point types to fit your existing door hardware.
