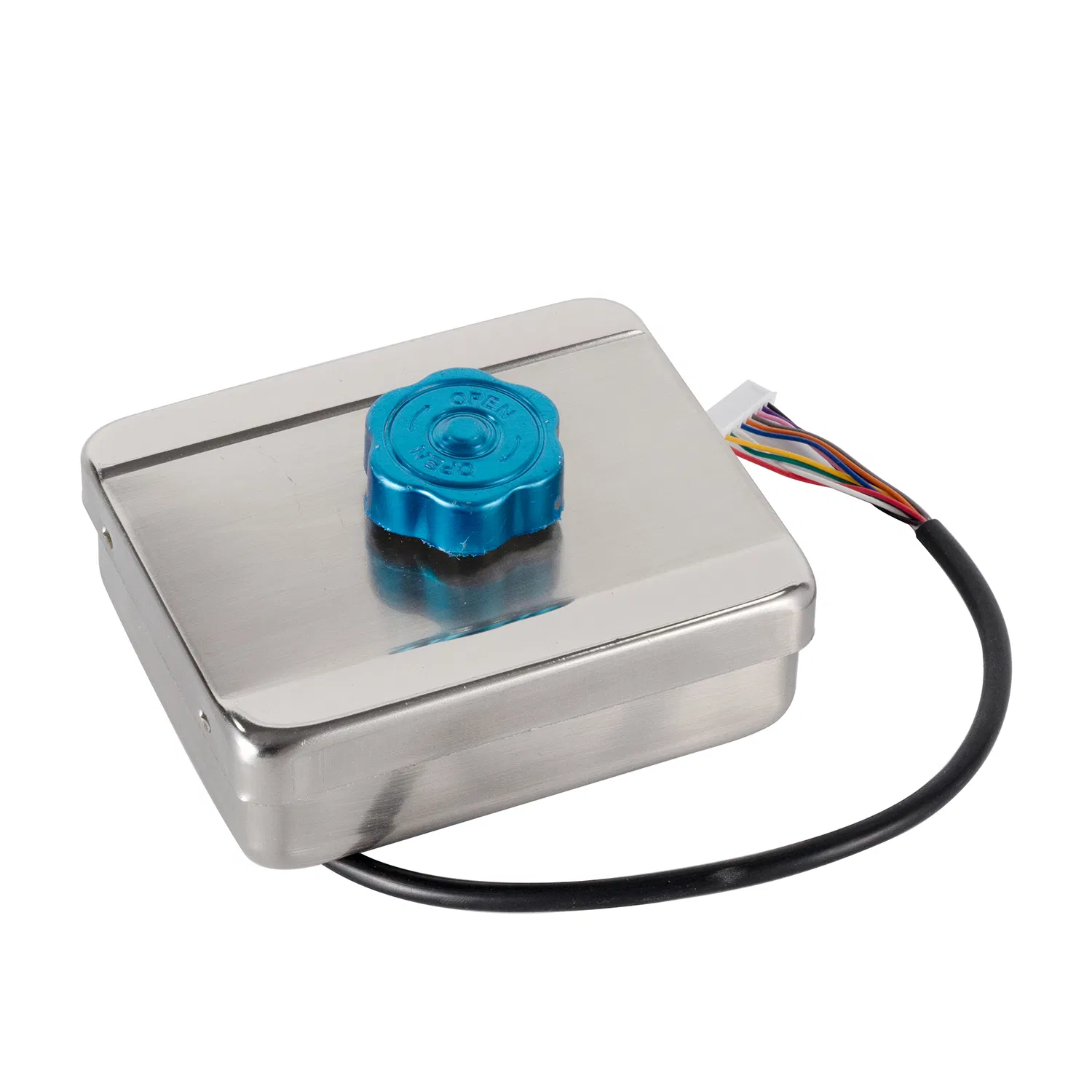

Wipan Lock
1 / 5
| Specification | Details |
|---|---|
| Lock core material | SUS304 Stainless steel |
| Lock body material | SUS304 Stainless steel |
| Operating Voltage | 12VDC |
| Operating environment | Temperature(-40°C~80°C), Humidity(20%-98%RH) |
| Unlocking times | ≥100000 |
| Protection level | IP65 |
| Encoding digits Number | 128 (No mutual opening rate) |
| Lock cylinder technology | 360°, Idle design to prevent violent opening, Storage Operations (Unlock, Lock, Patrol, etc.) Log |
| Encryption Technology | Digital encoding technology & encrypted communication technology; Eliminate technology activation |

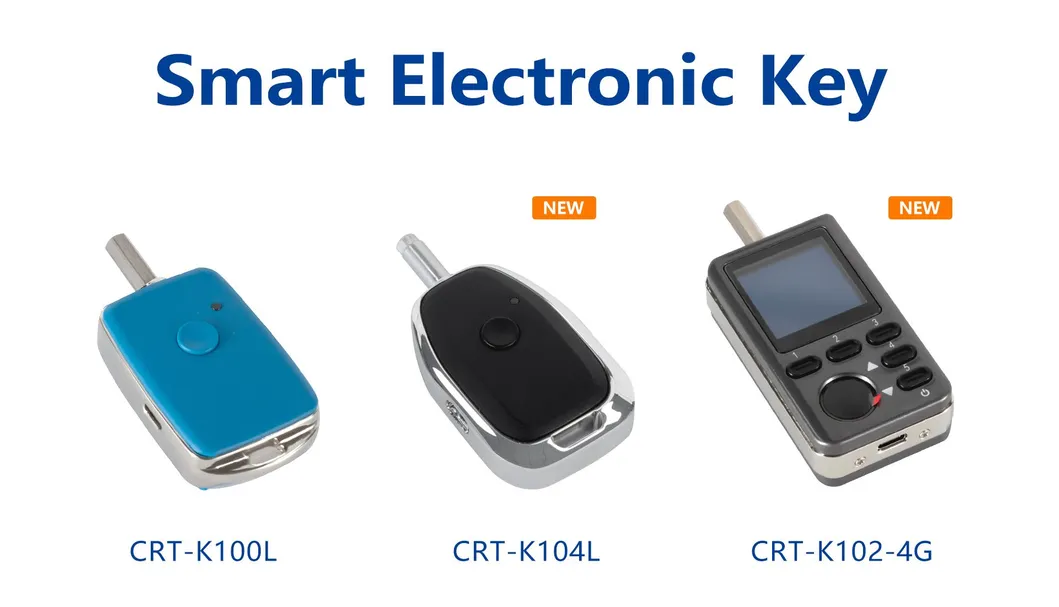

| Model | CRT-K100L/K104L | CRT-K102-4G |
|---|---|---|
| Operating voltage | 3.3V-4.2V | |
| Operating environment | Temperature (-40~80°C), Humidity (20%~93%RH) | |
| Battery capacity | 500mAh | |
| One charge for unlock times | 1000 times | |
| Charging time | 2 hours | |
| Communication interface | Type-C | |
| Unlock Record | 100000 pieces | |
| Protection level | IP67 | |
| Fingerprint identification | × | ✓ |
| Visual screen | × | ✓ |
| Date transfer | ✓ | ✓ |
| Remote authorization | × | ✓ |
| Voice+light prompt | ✓ | ✓ |
| Bluetooth | ✓ | ✓ |
| NB-iot/4G | × | ✓ |

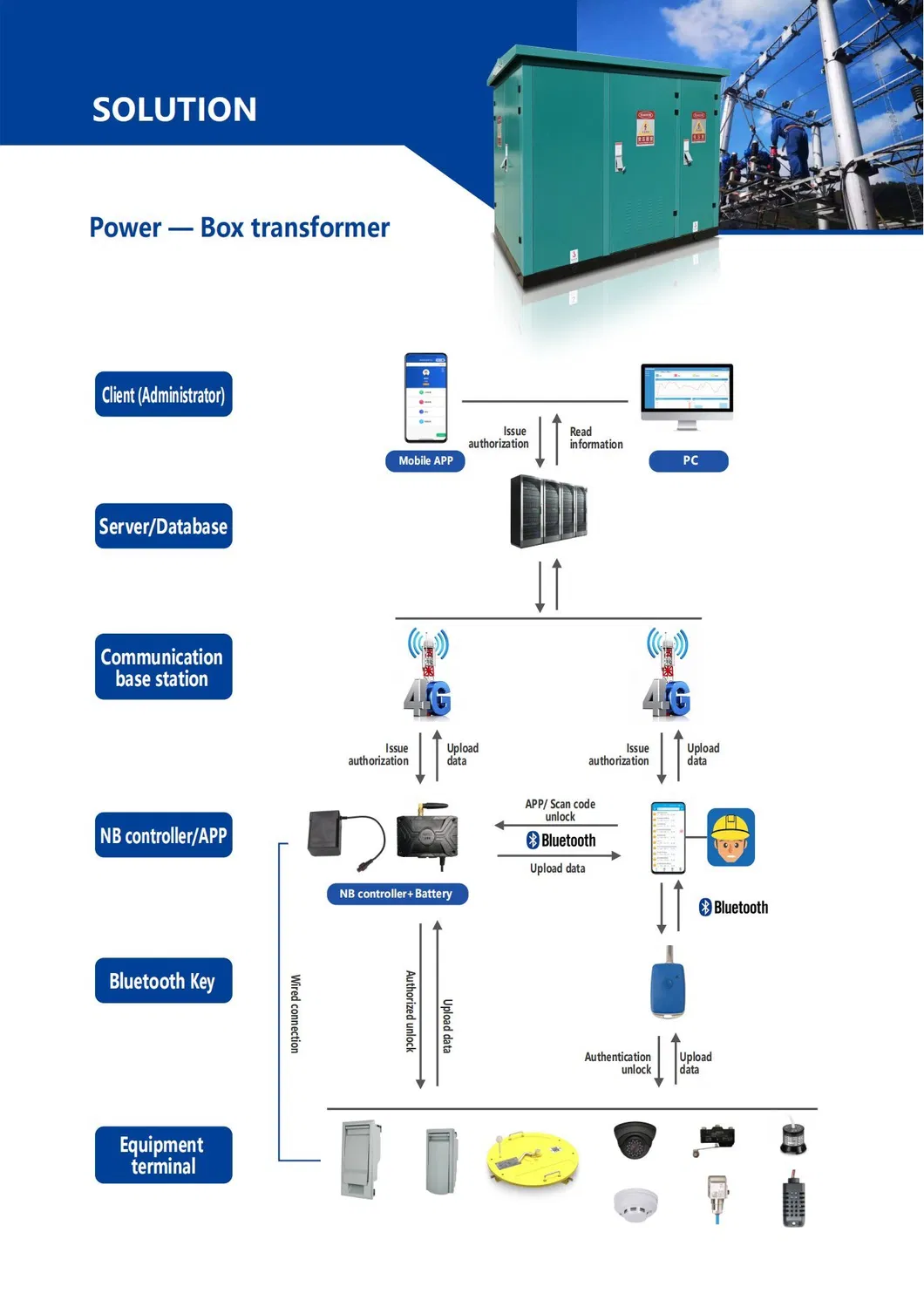

Smart Passive Electronic Lock System is composed of:

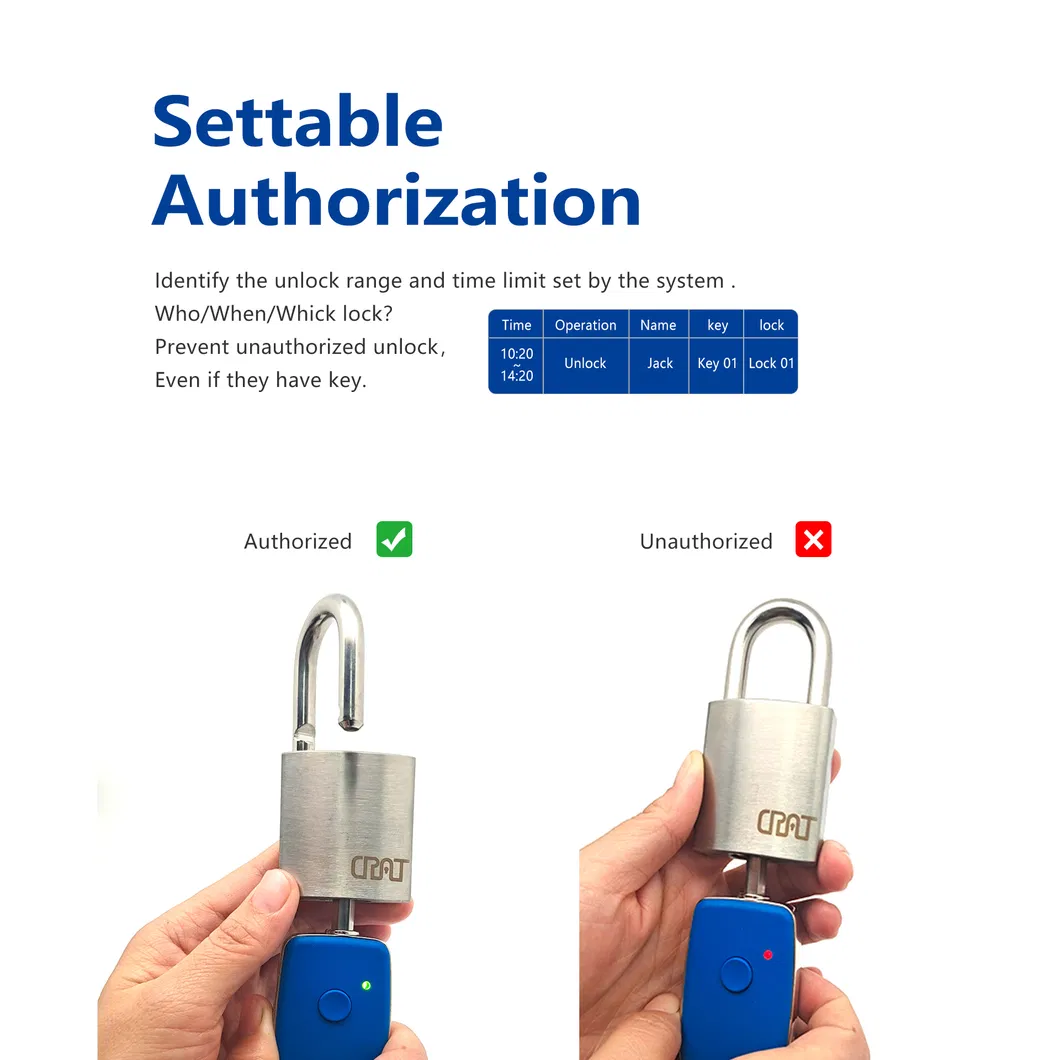

A key could open multiple kinds of locks. Electronic key will record unlocking and locking data. You could check the unlock report in smart lock software.
Smart lock widely used in mobile telecom towers and other units.
Our intelligent lock system is applied in the communication machine room cabinet, outdoor control cabinets, optical cable transfer boxes, communication base stations, and so on.
MAIN PRODUCTS: Passive smart lock, Electronic Wireless Intelligent lock, Communication base-station smart lock, Passive padlock, Bluetooth padlock, NB Intelligent Optical box lock, Intelligent manhole cover lock, Public passage Smart lock and the full range of smart locks.
We provide free standalone version lock software, also web-based lock software which is paid. And, we can customize the lock to your requirements.
One. And if you need customized the size or logo then the MOQ is 300.
Yes, we provide free stand-alone version lock software, also web-based lock software which is paid.
Yes, the smart passive electronic lock system has many kinds of locks available to meet your demand.
We are an SGS audited factory, with about ten years of manufacturing experience in smart locks.
Yes, we have a professional R&D team of about fifteen engineers.
