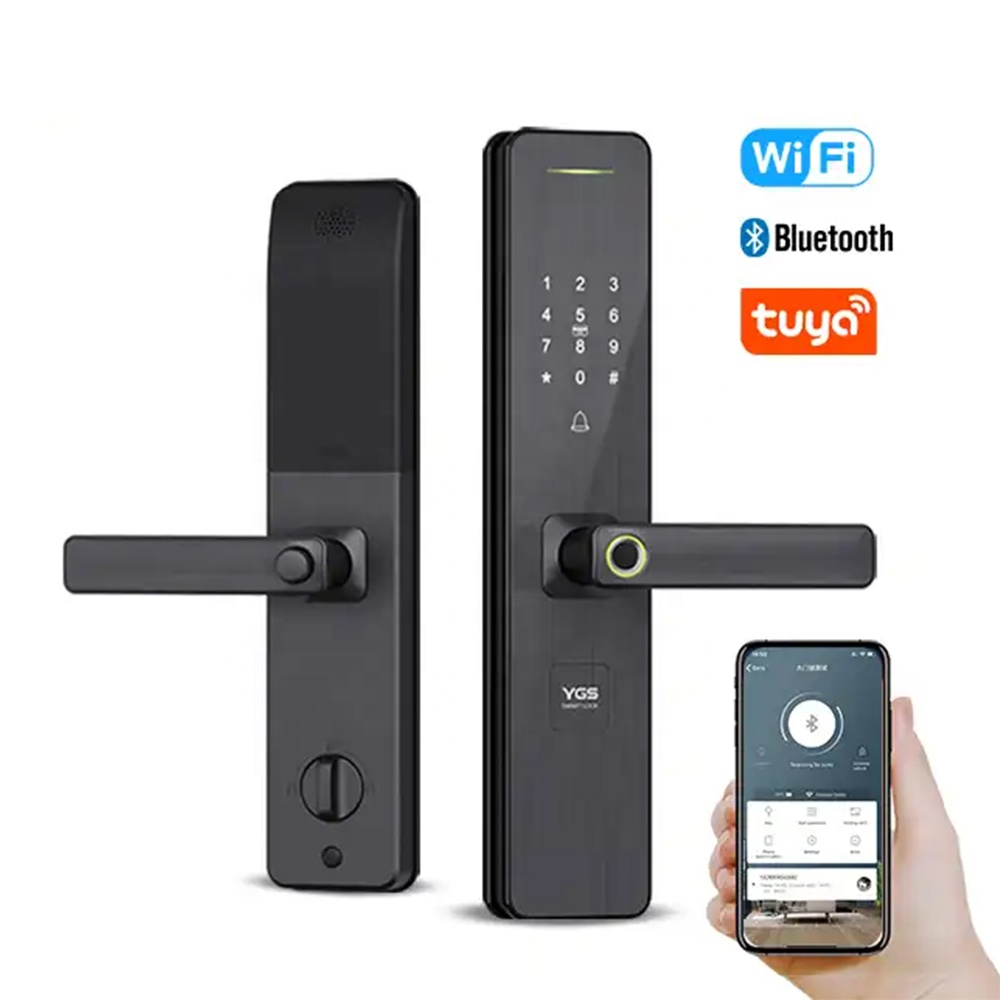

YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate
YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate
YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate
YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate
YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate
1 / 5
YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate
YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate
YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate
YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate
YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate

YGS Raykube Smart Lock R-Fg5 Deadbolt Lock App Electr Airbnb Gate Wifi Front Door 80Mm Encode Existing Key Exterior Gate

Send Inquiry

Product Description

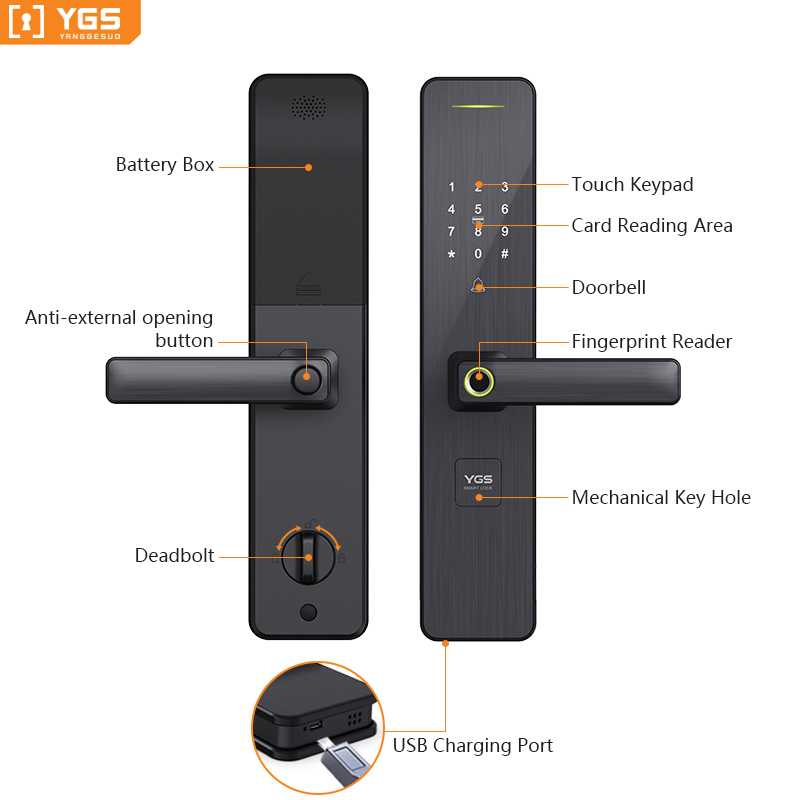

Smart Lock R-Fg5 Deadbolt Front Door System

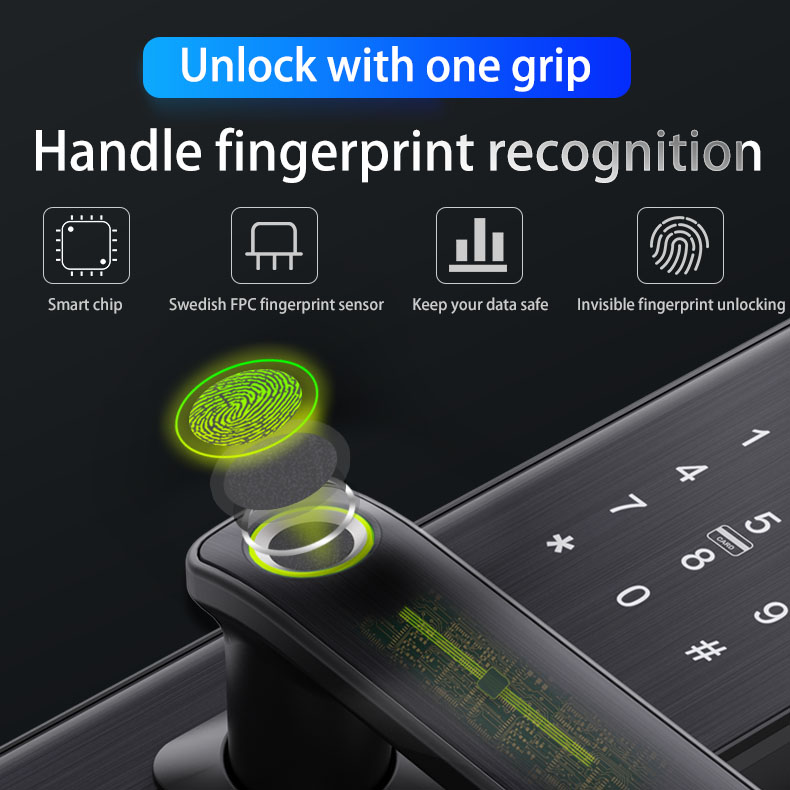

Smart Lock View 1

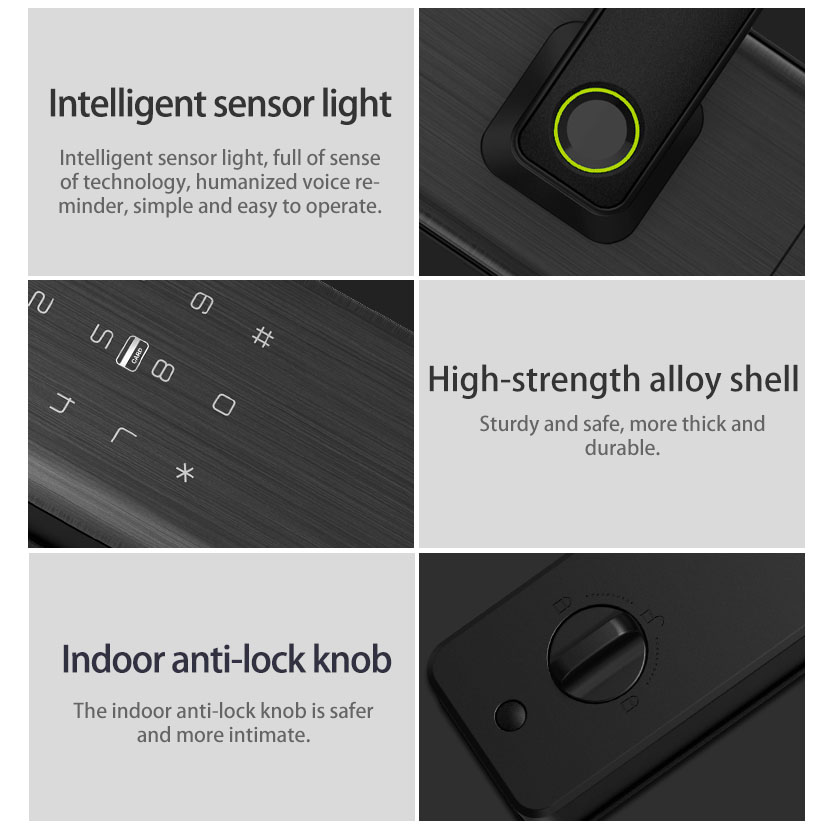

Smart Lock View 2

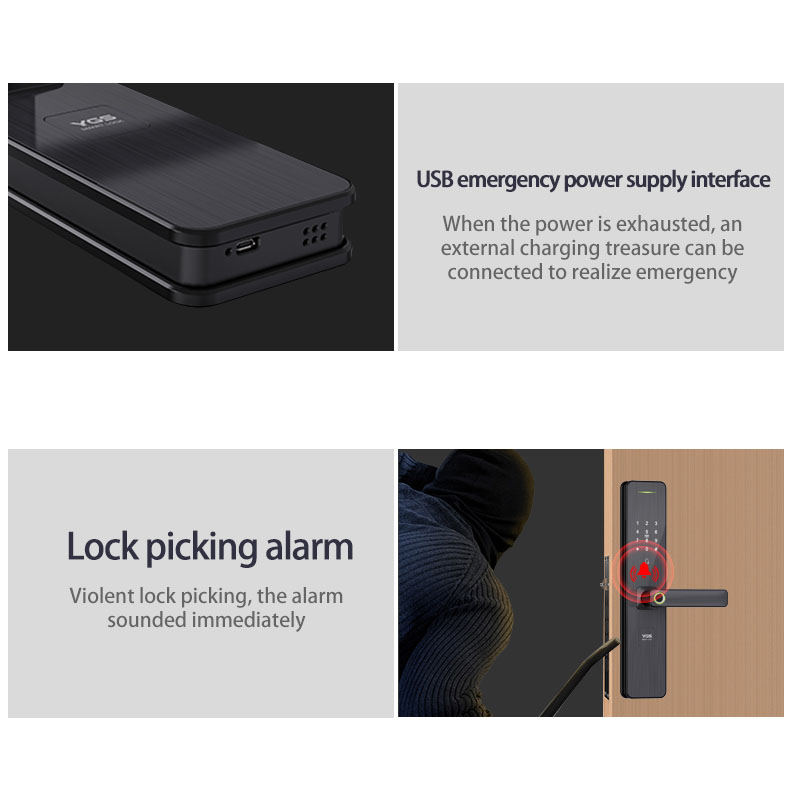

Smart Lock View 3
Technical Parameters
Access solutionFingerprint / Password / Mechanical key / Card
Power supplyDC4.5V-6.5V, four 1.5V AA alkaline batteries
Battery lifeOver 15,000 times
Static current< 20 uA
Dynamic current< 150 mA
Storage temperature-20°C to +55°C
Storage humidity10-90% RH
Working temperature-20°C to +55°C
Working humidity20-95% RH
Card reading distance0-5cm
Reading & Writing time< 0.25s
Data keepingOver 10 years
Reading & Writing wayNon-touched closer induction
Key Features

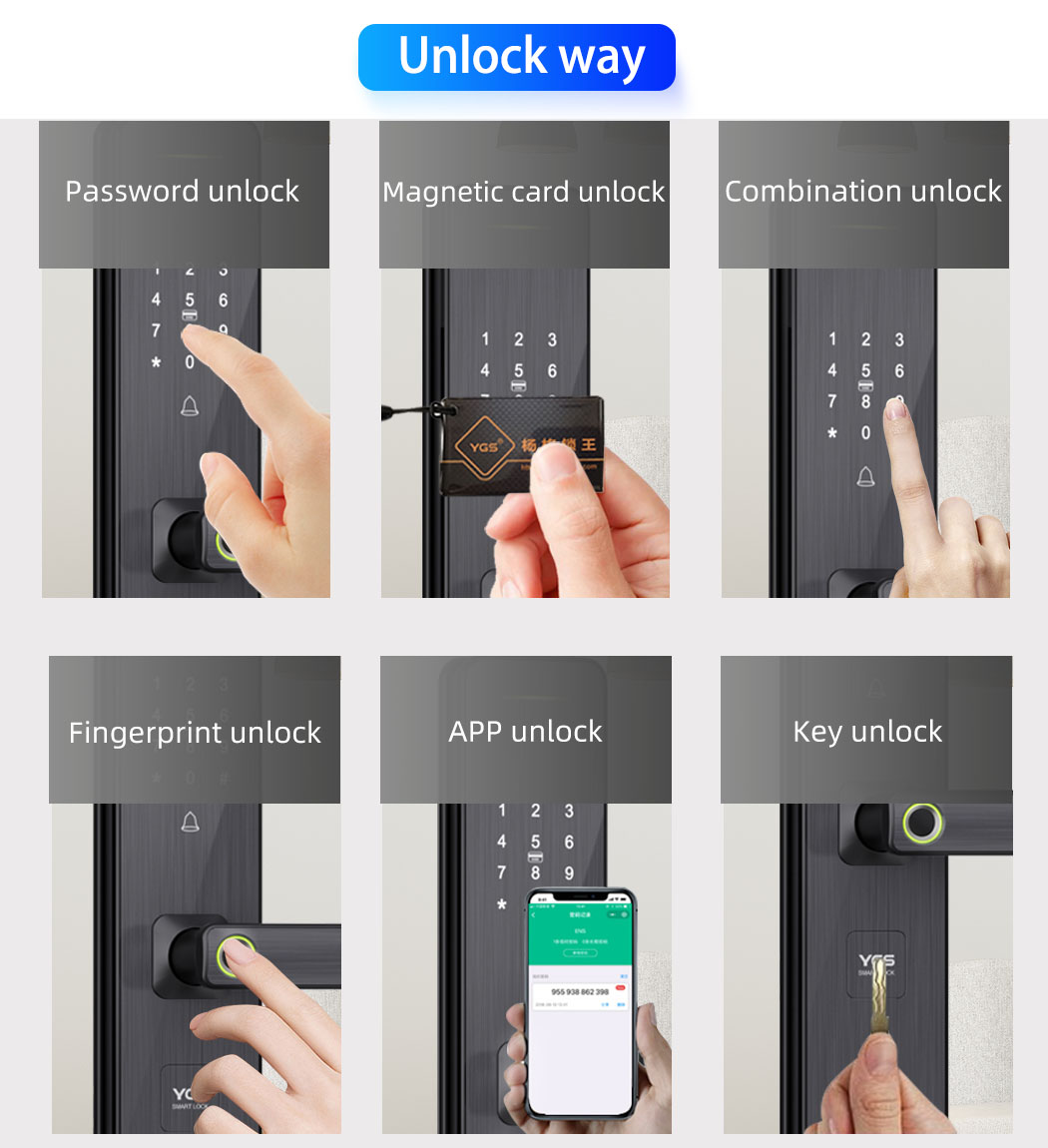

✔ 4 advanced access solutions: Fingerprint, password, mechanical key, and card;
✔ Available Finishes: Silver, Black, Antique copper;
✔ High-performance motor with durability exceeding 500,000 cycles;
✔ Anti-tamper trim handle with free moving clutch mechanism;
✔ Multi-alarm system: Low power, door ajar, and anti-tampering alerts;
✔ Enhanced security: System locks for 3 minutes after 5 continuous wrong inputs;
✔ User Capacity: Up to 500 total (120 fingerprints + passwords + cards);
✔ Emergency override mechanical key unlocking available.

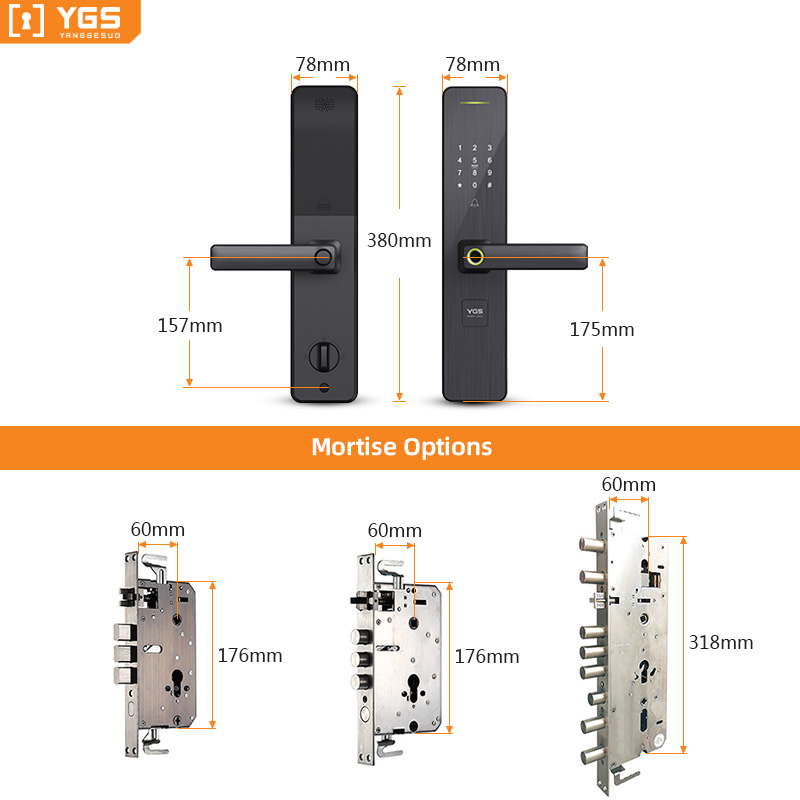

Mortise & Drawing Specifications

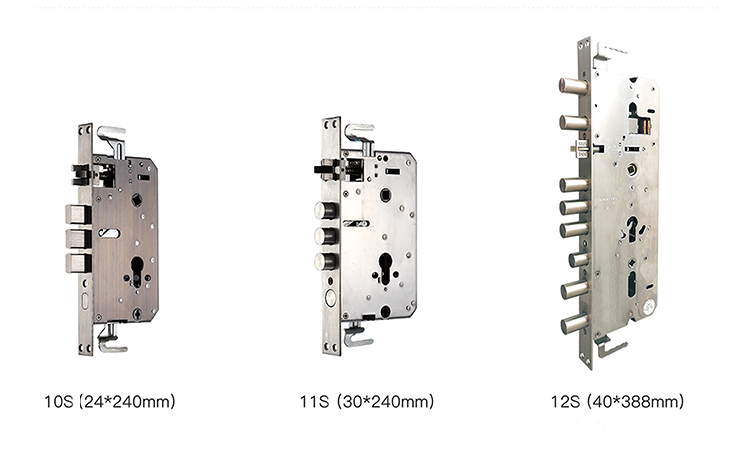

Mortise Diagram Smart Lock Banner

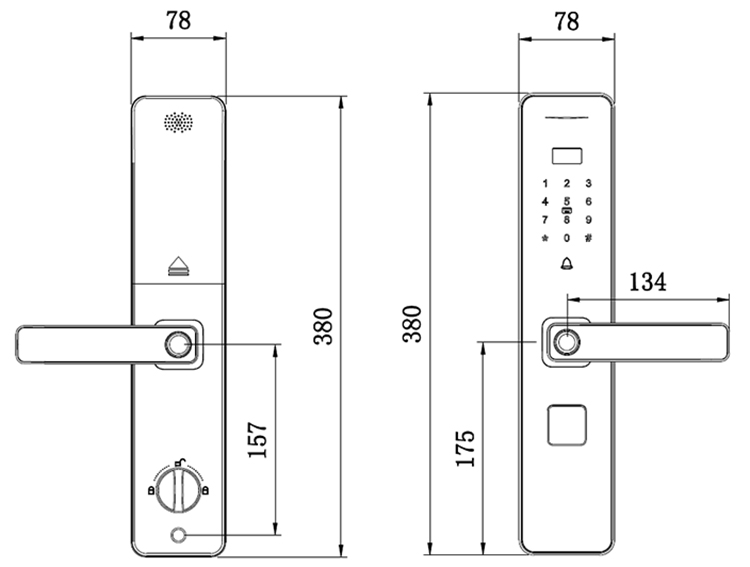

Product Drawing 1
Product Drawing 2
Manufacturing & Exhibition

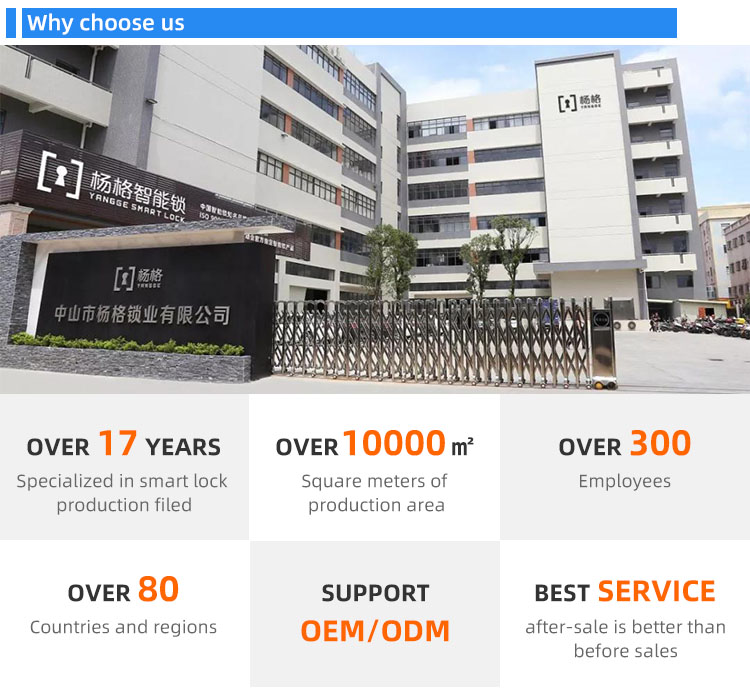

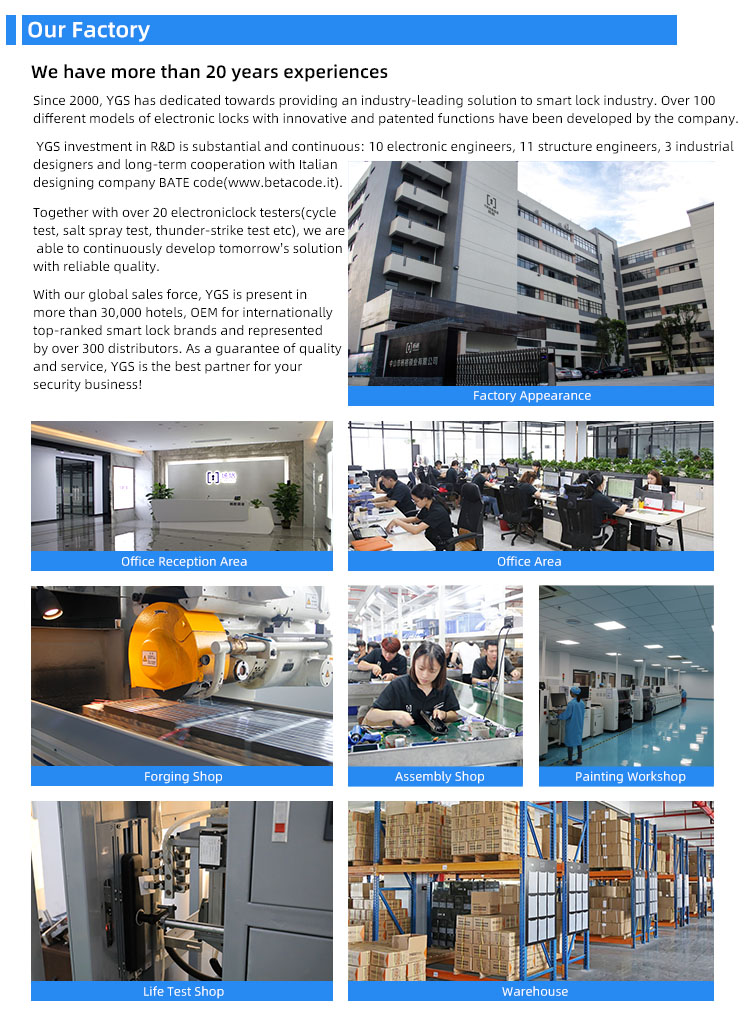

About Manufacturing Facility Details
Global Exhibition
Exhibition Presence
Certifications
Industry Certifications
Frequently Asked Questions
1. Are you a trade company or a manufacturer?
We are an ISO, CE, and RoHS approved manufacturer specialized in smart door locks. We offer professional OEM & ODM services tailored to your needs.
2. What is your Minimum Order Quantity (MOQ)?
There is no MOQ for standard inventory items. For custom OEM orders, the MOQ is 100 pieces.
3. What is the estimated delivery date?
The delivery date typically ranges from 5 to 45 days after the receipt of payment, depending on order size and customization.
4. What are your standard payment terms?
Our standard terms are a 30% deposit in advance and the remaining 70% balance settled before shipment.
5. Can I request product samples?
While we do not provide free samples due to high demand, the sample charge can be fully deducted from your total amount once a mass production order is placed.
6. How much experience do you have in the industry?
Our technical and design teams have been providing industry-leading smart lock solutions since 2000, operating from a modern R&D and manufacturing facility.
