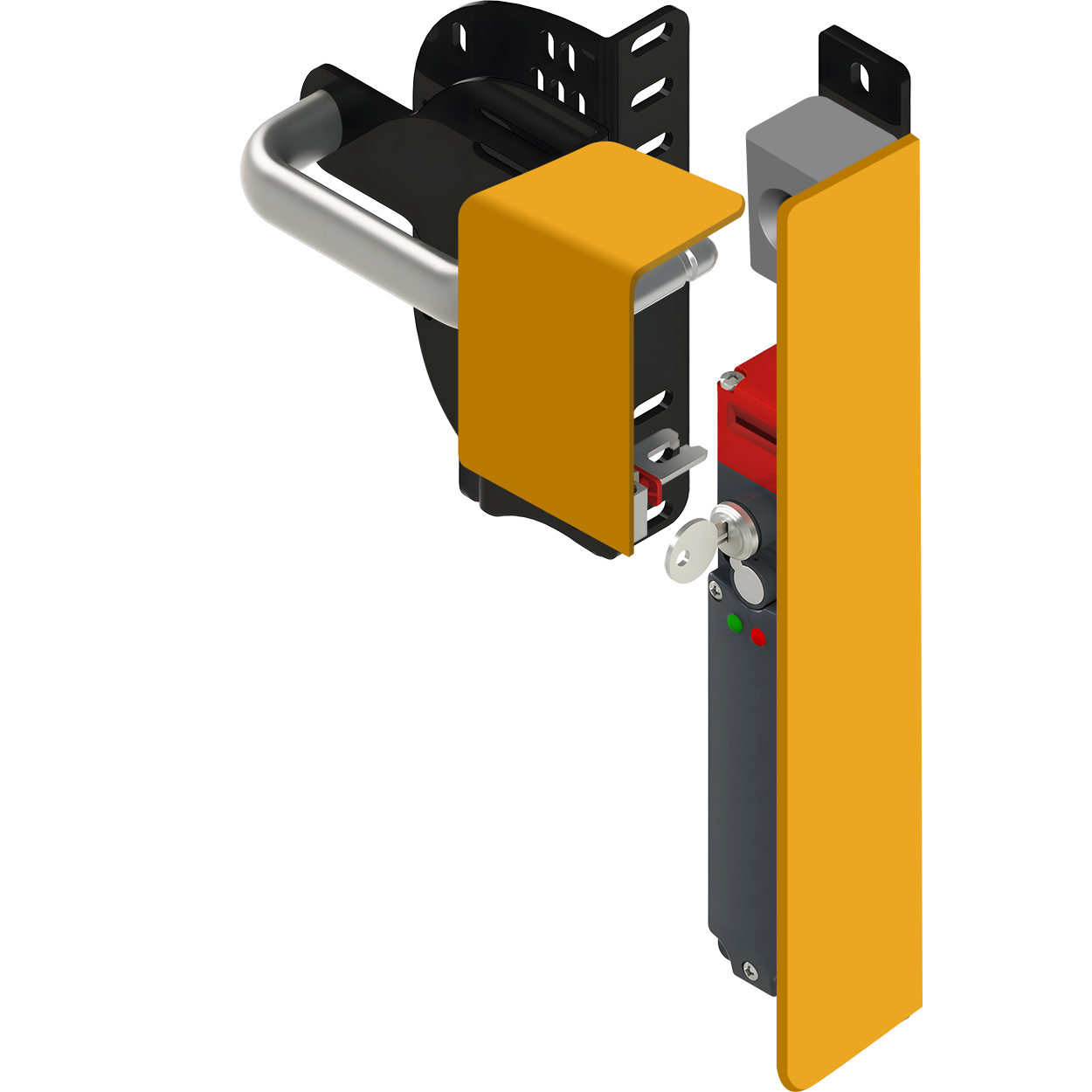

SURLOCK Durable Aluminium Door Locking System Patented Safety Function For Protective Grilles & Machine Safety Doors

Product Description

Product Description

The system offers a high level of security and flexible integration into industrial applications. It features a separately locked safety switch as standard, three M20 x 1.5 cable entries in a metal housing with protection class IP67, as well as an operating mode D with actuator locking in case of power failure.

Power Supply: 24 V AC/DC provided for reliable operation.
Indicators: Two LED indicators (red/green) freely connectable by the user.
Switching Blocks: Includes 1 NC + 1 NO (actuator activated) and 1 NO + 1 NC (electromagnet activated).
Advanced Head: Features a rotatable head and forced opening (Positive Opening).

The system includes a VF KEYF21 corner actuator. As an alternative to SURLOCK, safety locking systems from other manufacturers such as Siemens, Pilz, Sick, Euchner, and other common switching systems can be offered and directly integrated into safety doors or custom solutions.

SURLOCK Safety Switch

SURLOCK Sicherheitsschalter kompatibel

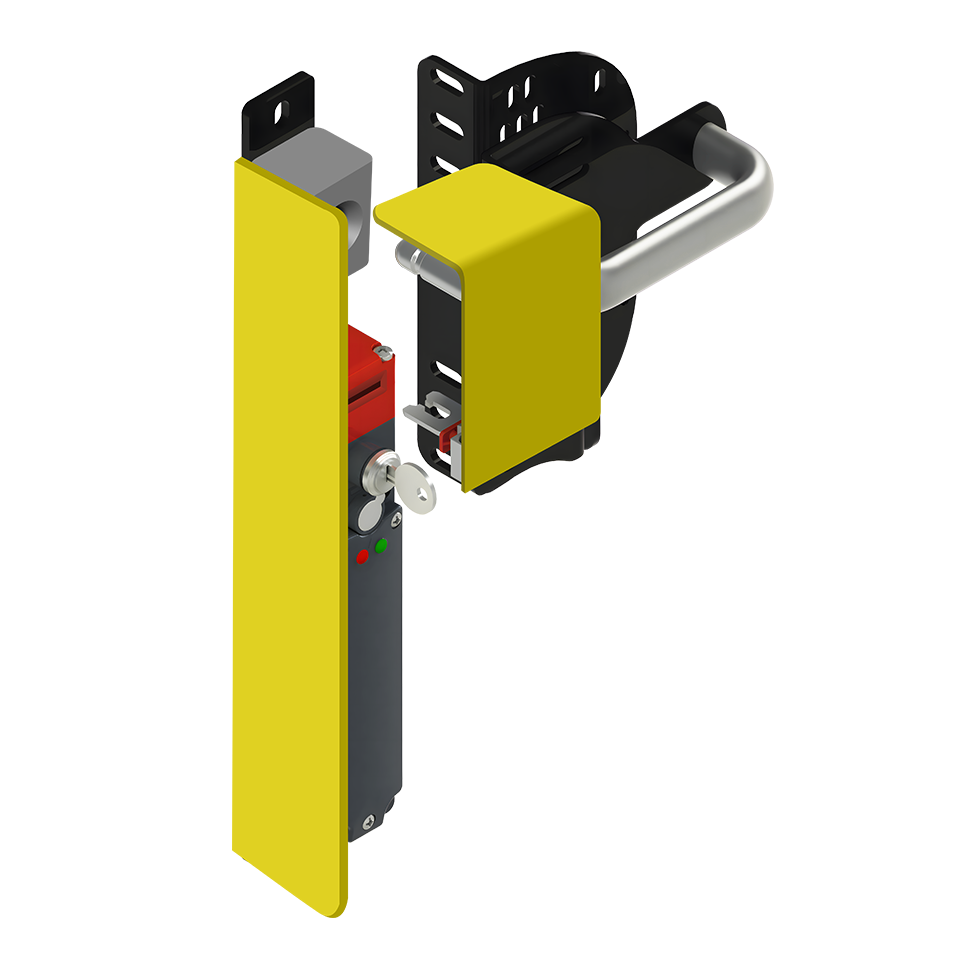

SURLOCK Safety Switch Mechanism

SURLOCK Sicherheitsschalter kompatibel

SURLOCK Safety Switch Components

SURLOCK Sicherheitsschalter kompatibel

SURLOCK Safety Switch Installation

SURLOCK Sicherheitsschalter kompatibel

Specifications
Attributes Details
Manufacturer SURLOCK
Material Steel
Protection Class IP67
Housing Metal
Cable Entries 3 x M20 x 1.5
FAQ
What is the protection rating of the SURLOCK housing?
The system features a metal housing with an IP67 protection class, ensuring high durability in industrial environments.
What happens during a power failure?
The system includes an operating mode D which ensures actuator locking even in the event of a power failure.
Can I monitor the status of the switch visually?
Yes, the system is equipped with two LED indicators (red and green) that can be freely connected by the user for status monitoring.
What types of switching blocks are included?
It includes one block with 1 NC + 1 NO activated by the actuator, and another with 1 NO + 1 NC activated by the electromagnet.
Is this system compatible with other brands?
Yes, it is designed for flexible integration and can be offered as an alternative to systems from Siemens, Pilz, Sick, and Euchner.
What type of actuator comes with the system?
The standard package includes a VF KEYF21 corner actuator and features a rotatable head with forced opening.
