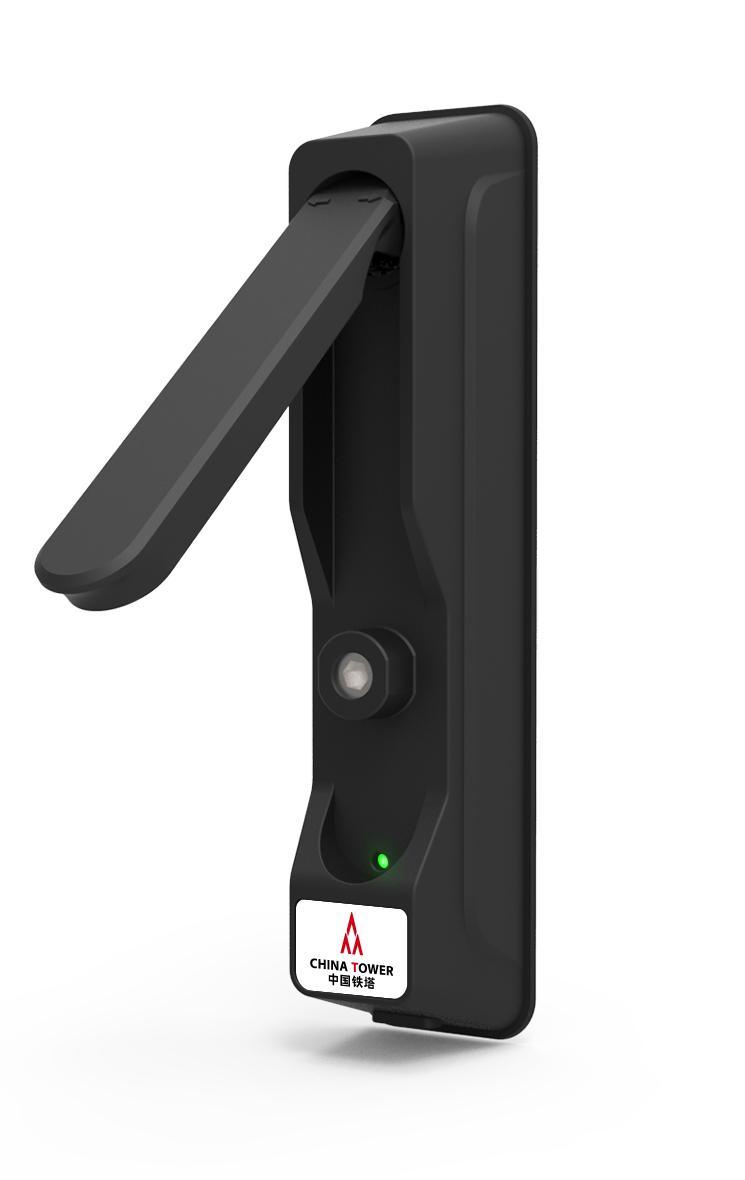

Bluetooth Function Security Smart Key Management Digital Cabinet Lock

1 / 5

Bluetooth Function Security Smart Key Management Digital Cabinet Lock

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model

CRT-MSJ

Certification

RoHS, CCC, FCC, CE

Principle

Electronically Controlled Lock

Protection

IP68

Encryption

AES-128 Technology

Material

Zinc Alloy / Stainless Steel

Packaging & Delivery

Package Size

46.00cm * 23.00cm * 14.00cm

Gross Weight

17.000kg

Product Description

🛡️ Are you worried about thieves or constantly losing keys?

🔑 Tired of managing too many keys or troublesome charging requirements for electronic locks?

📊 Need to track lock records and manage temporary access authorities? We have the solution.

Technical Parameters

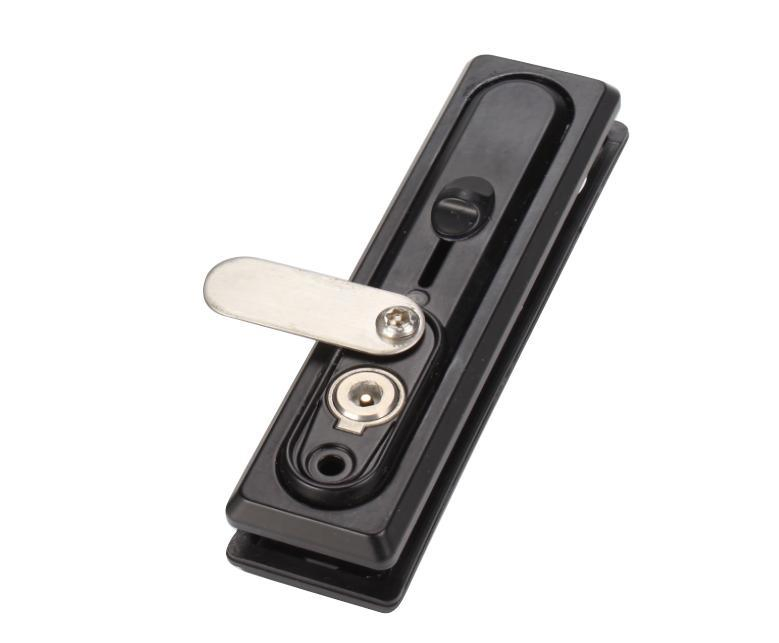

Lock core material	SUS304 Stainless steel
Lock body material	Zinc alloy spray plastic + SUS304
Operating Voltage	3V-5.5V
Operating environment	Temp (-40°C~80°C), Humidity (20%-98%RH)
Unlocking times	≥ 50,000
Encoding digits	128 (No mutual opening rate)
Lock cylinder tech	360° Idle design, prevents violent opening

Create locks without power or wiring makes installation simpler and efficient.

Key Parameters Comparison

Feature	Standard Model	Advanced Model (4G)
Operating voltage	3.3V-4.2V
Battery capacity	500mAh
Unlocks per charge	1000 times
Charging interface	Type-C
Protection Level	IP67
Fingerprint ID	×	√
Visual Screen	×	√
Bluetooth / 4G	Bluetooth	Both

System & Software

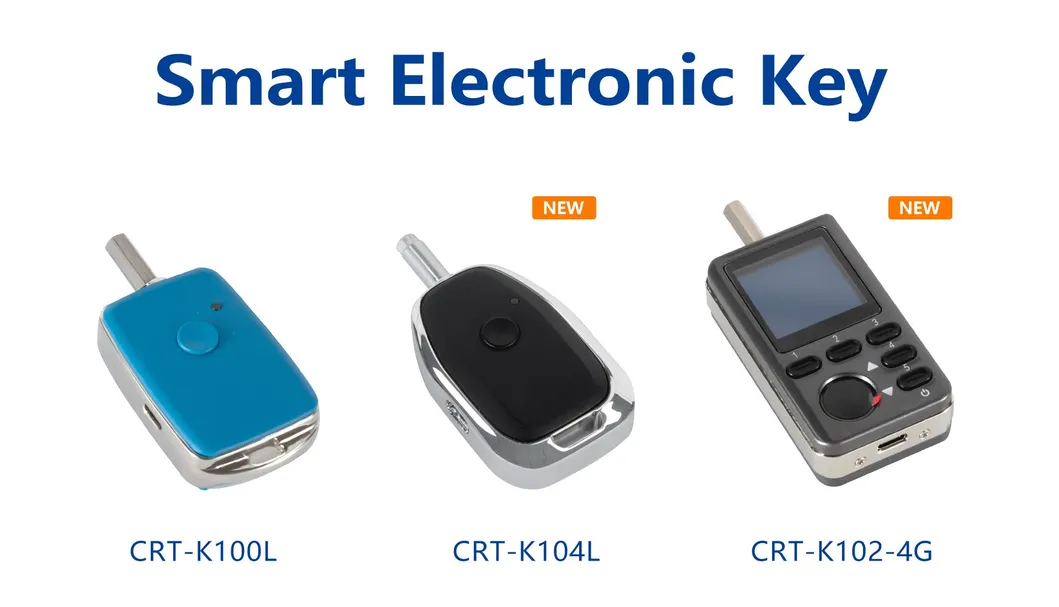

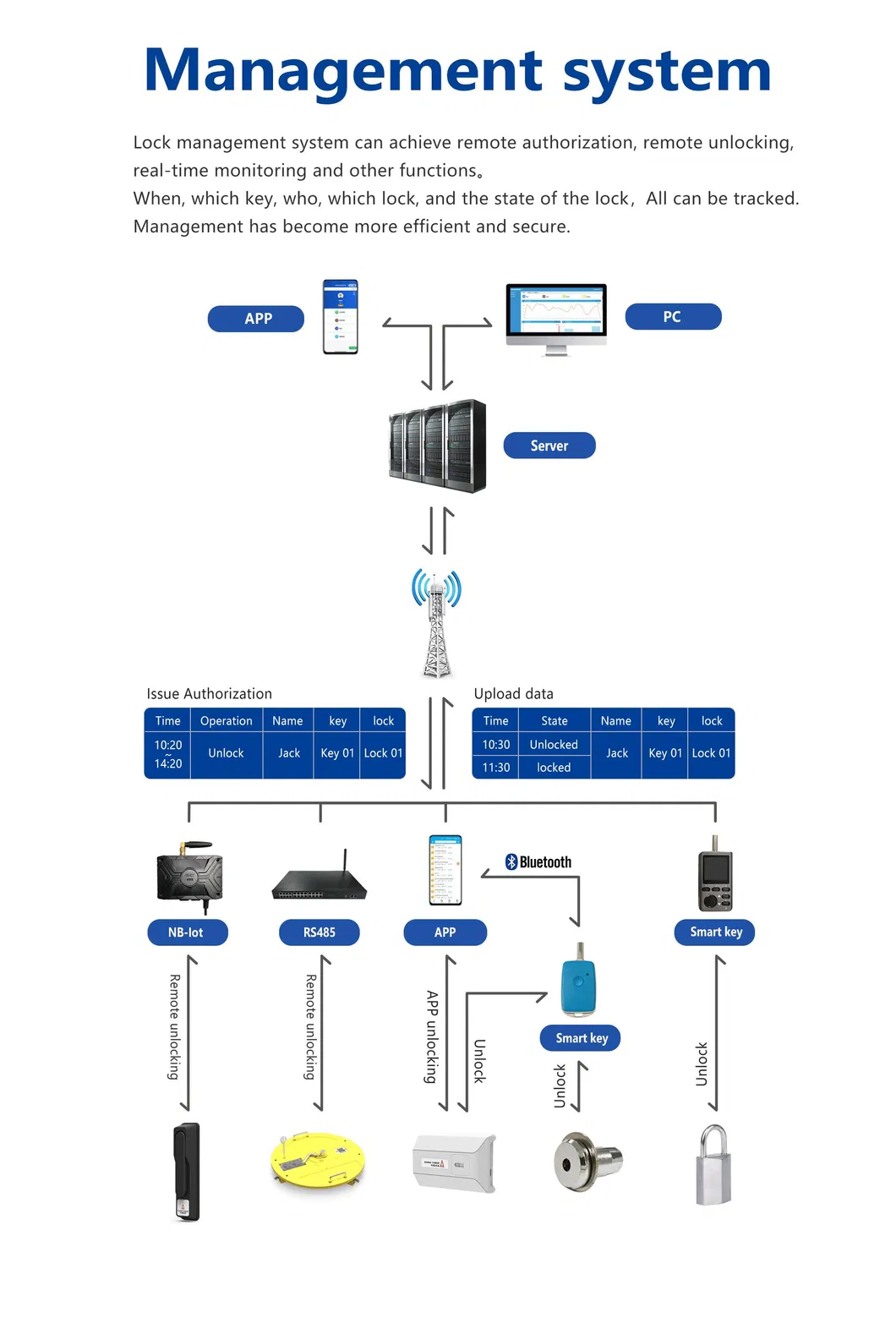

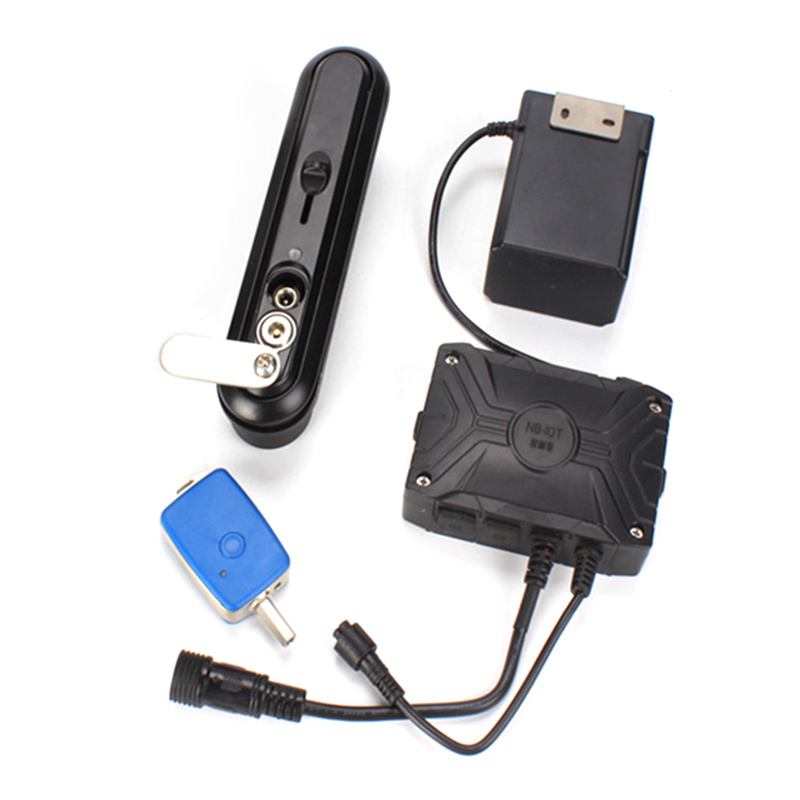

The Smart Passive Electronic Lock System consists of passive locks, smart electronic keys, and intelligent management software.

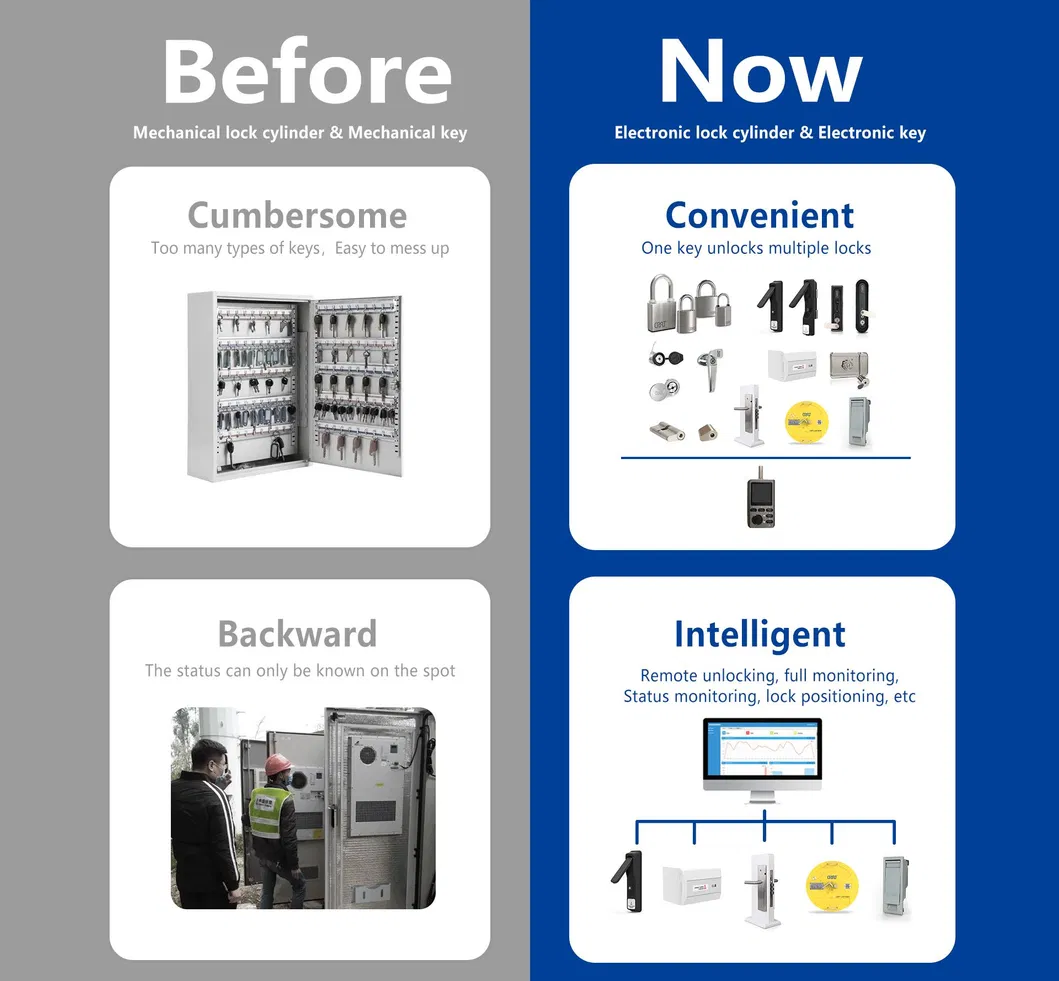

✓ One key can open multiple kinds of locks.
✓ Keys record all unlocking and locking data for audit reports.

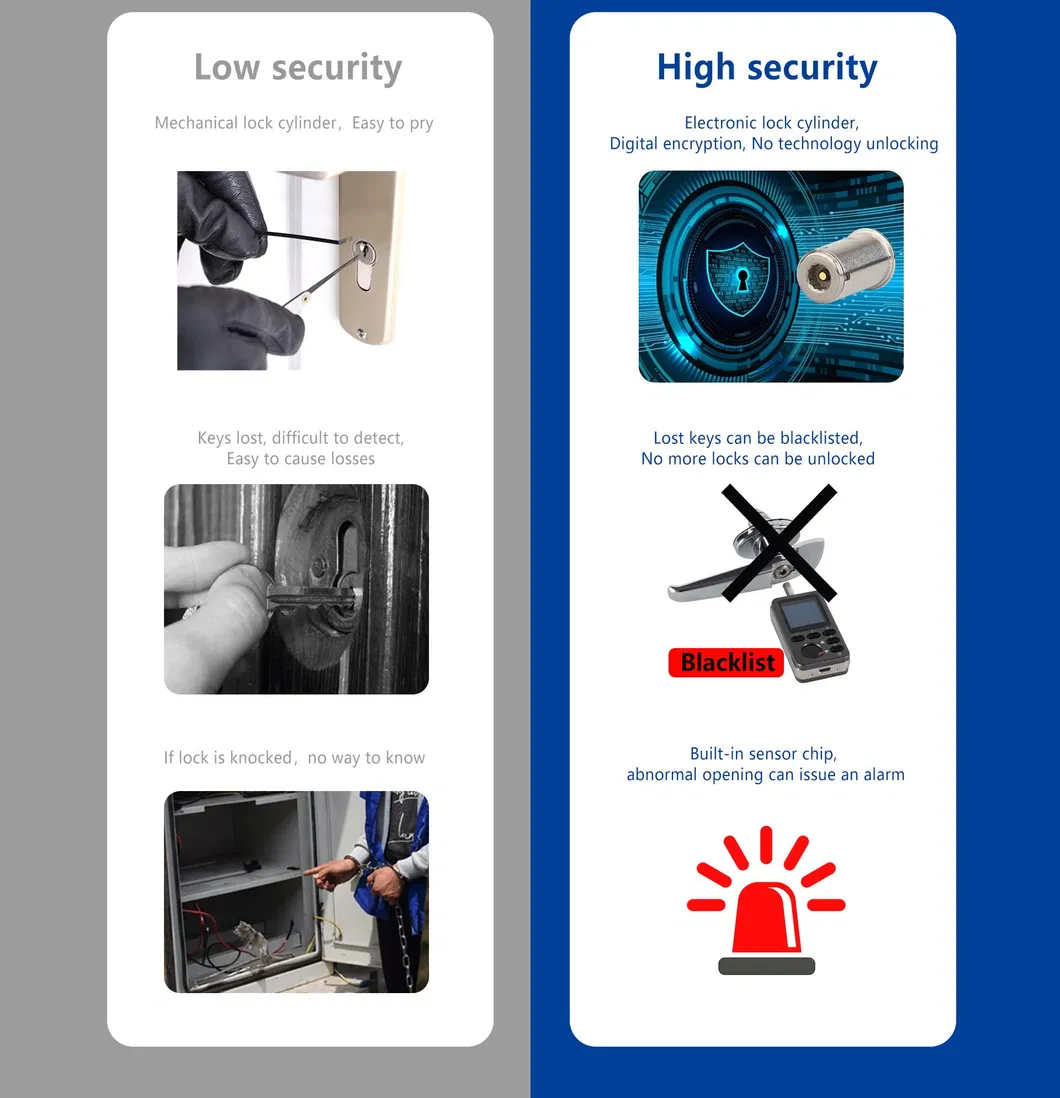

✓ Lost keys can be swiftly disabled via blacklist management.
✓ Map-based management makes every lock clearly visible.

Industrial Applications

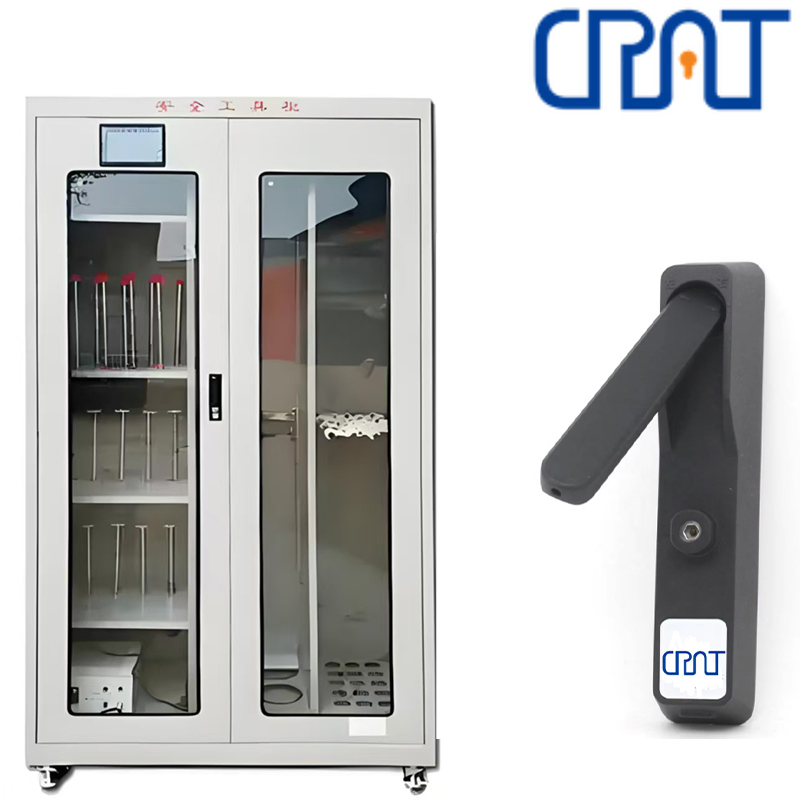

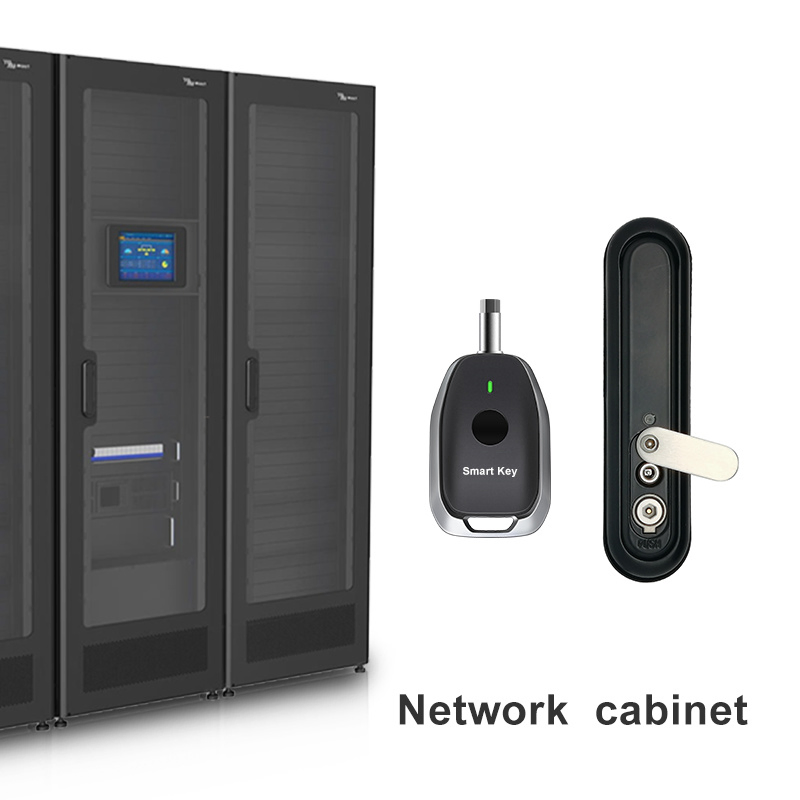

Widely used in communication machine rooms, outdoor control cabinets, optical transfer boxes, base stations, and manhole covers.

Frequently Asked Questions

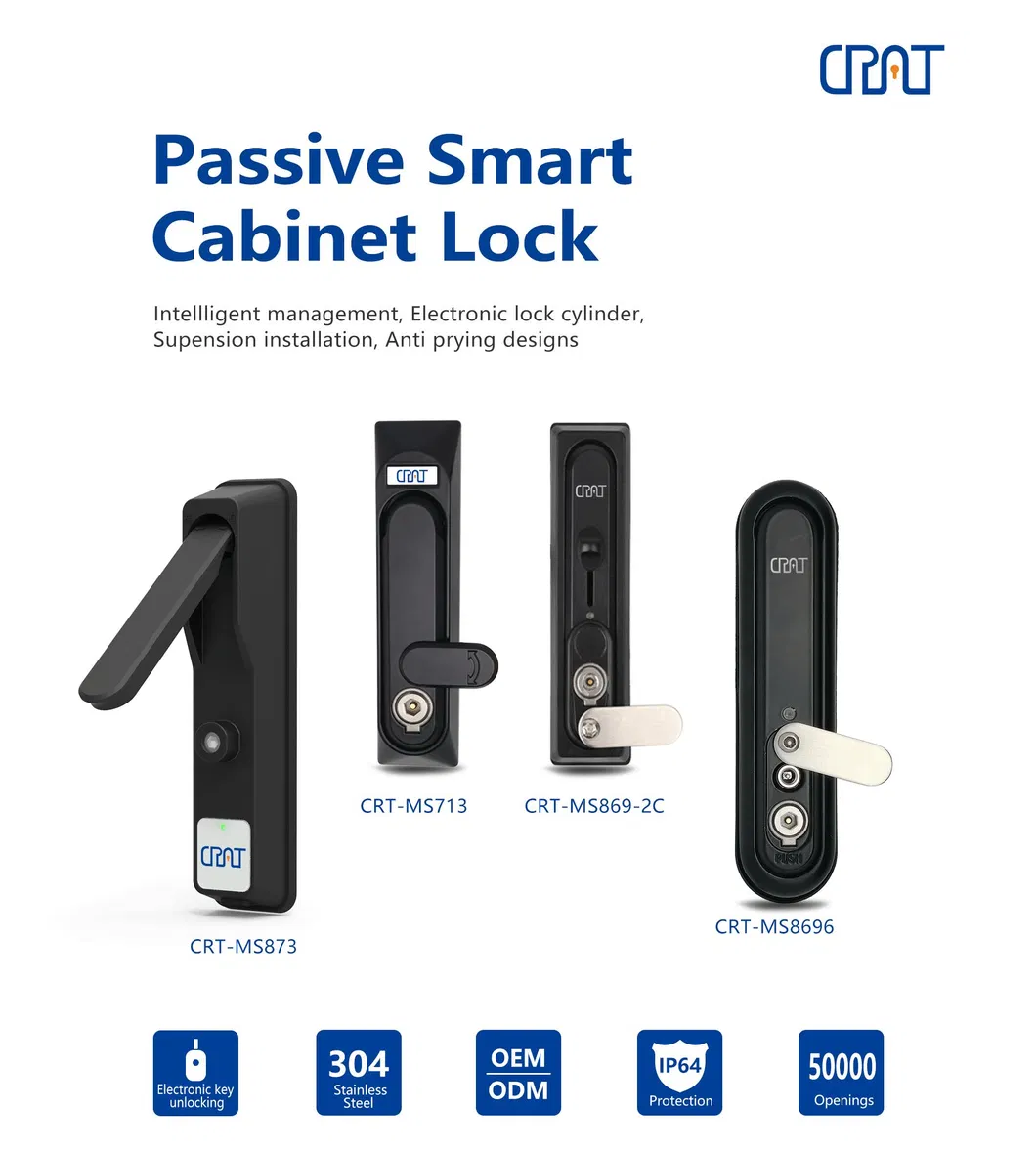

What is a passive smart lock?

A passive smart lock does not require an internal battery or external wiring. It receives power directly from the smart electronic key during the unlocking process.

How do I manage a lost key?

Through the management software, you can immediately add the lost key to a blacklist. Once updated, the key will no longer have authorization to open any locks in the system.

Can one key open different types of locks?

Yes, the system allows a single smart key to be authorized for various types of locks, including padlocks, cabinet locks, and manhole locks, reducing the number of keys needed.

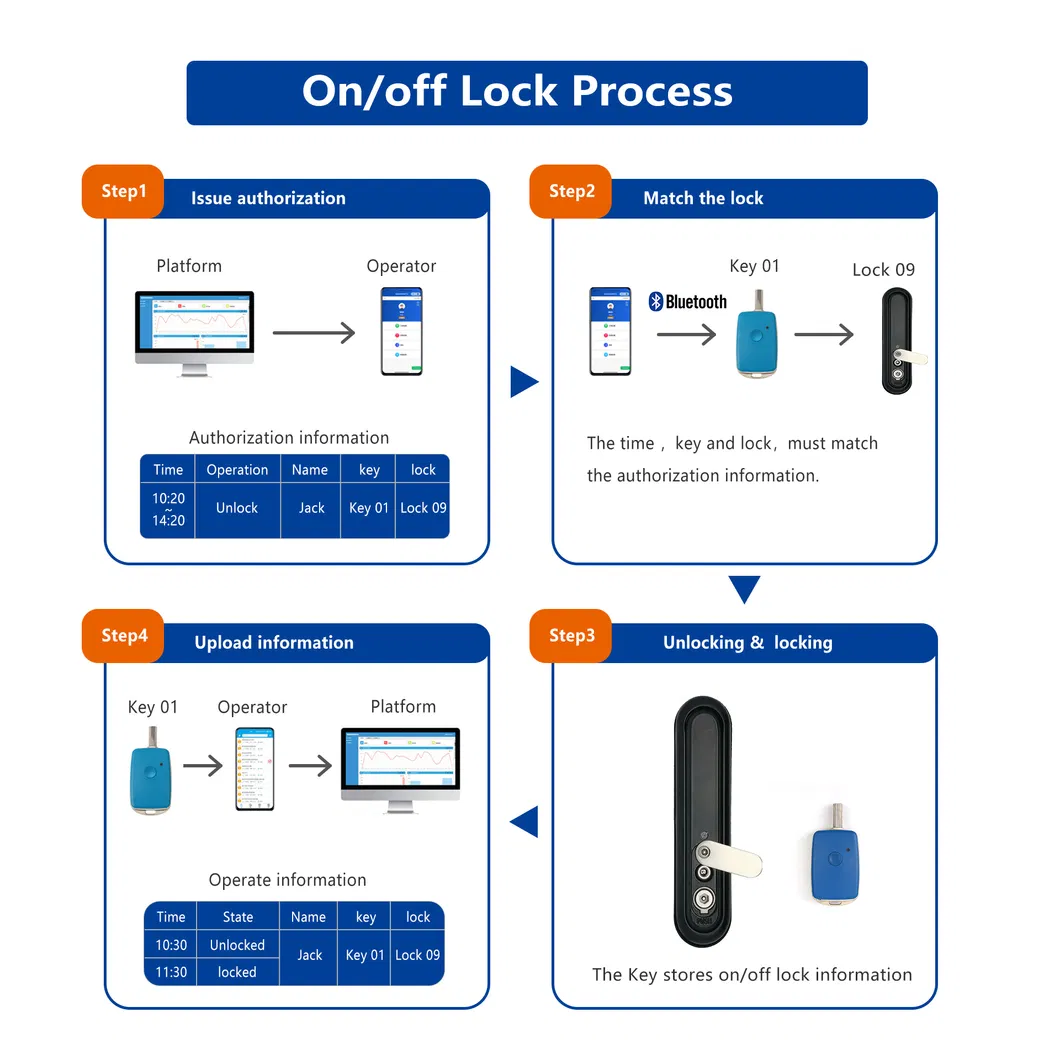

Is the unlocking record traceable?

Absolutely. Every time a lock is opened or closed, the smart key records the event. This data is uploaded to the software for audit reports and security tracking.

What is the protection level of these locks?

The locks are designed for harsh environments, featuring IP67 or IP68 protection levels, making them waterproof and dustproof for outdoor use.

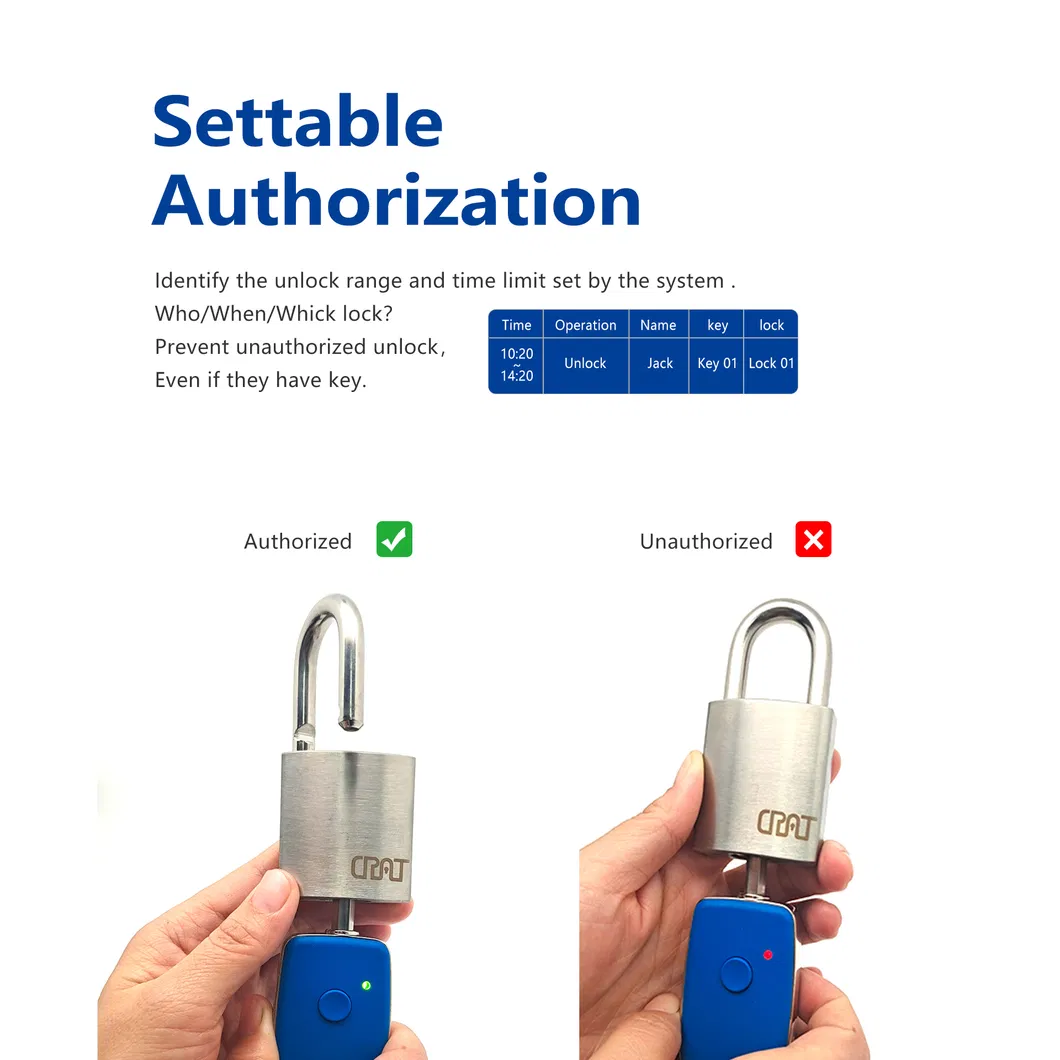

Does the software support remote authorization?

Yes, advanced models with 4G or Bluetooth connectivity support remote authorization, allowing managers to assign access permissions to individuals in real-time.
