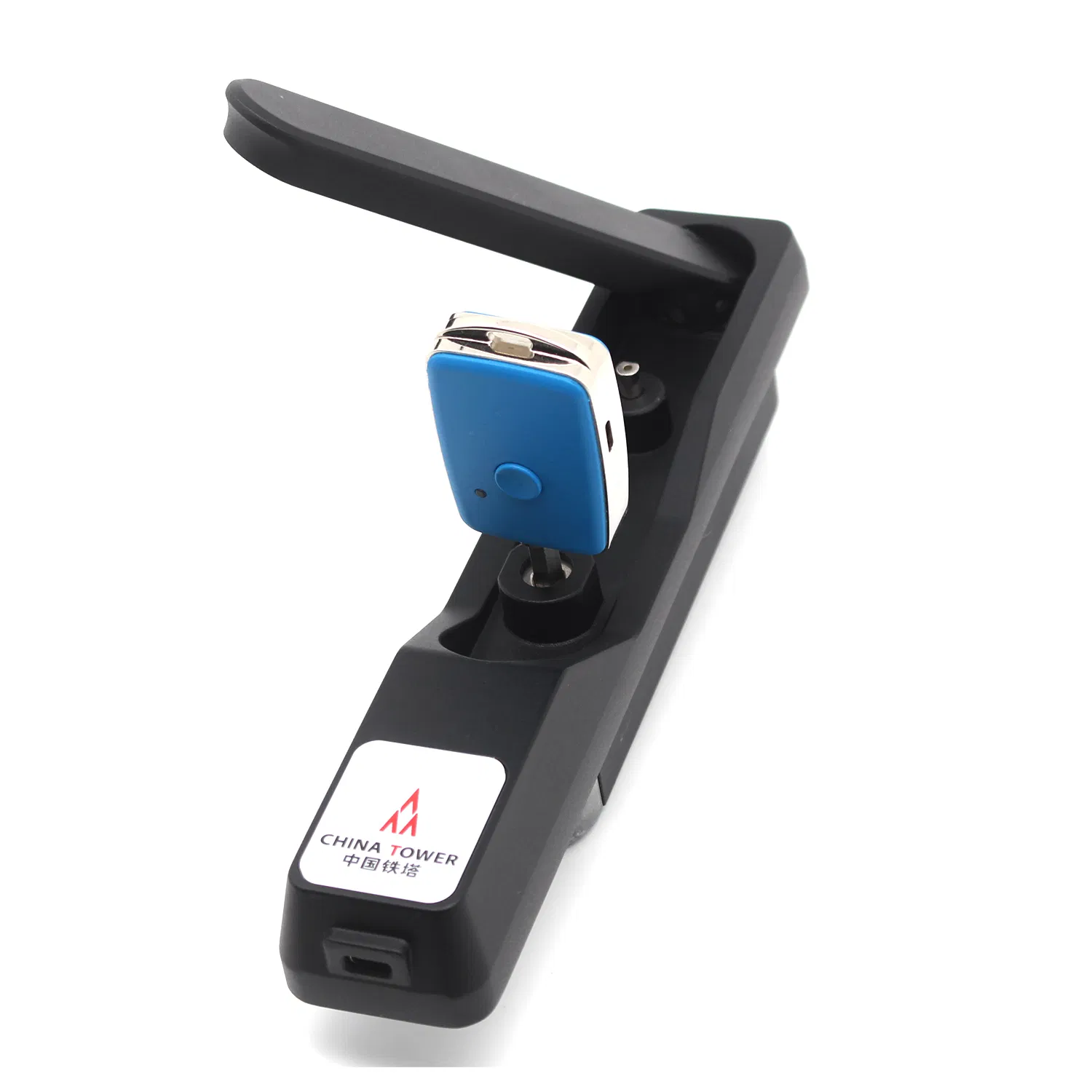

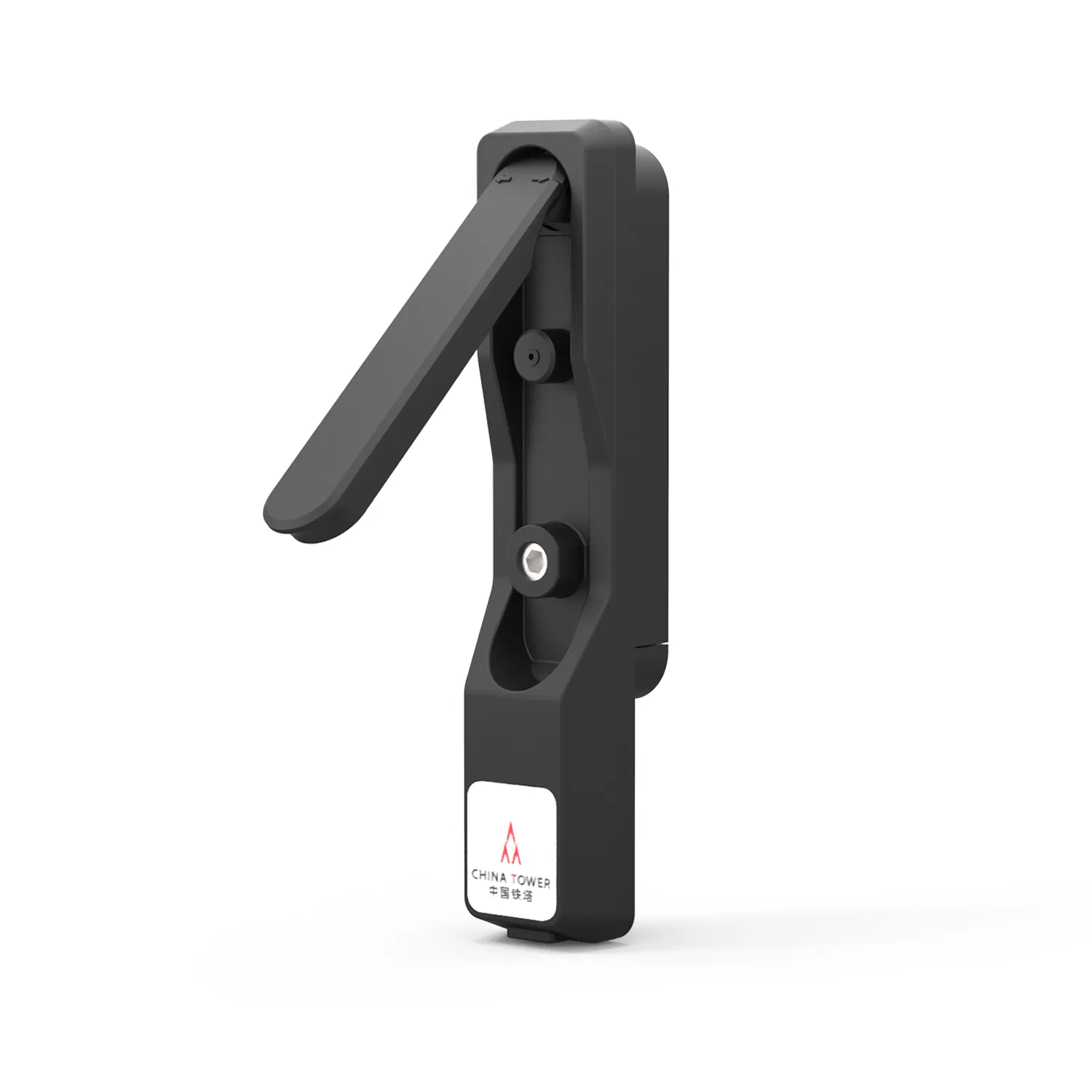

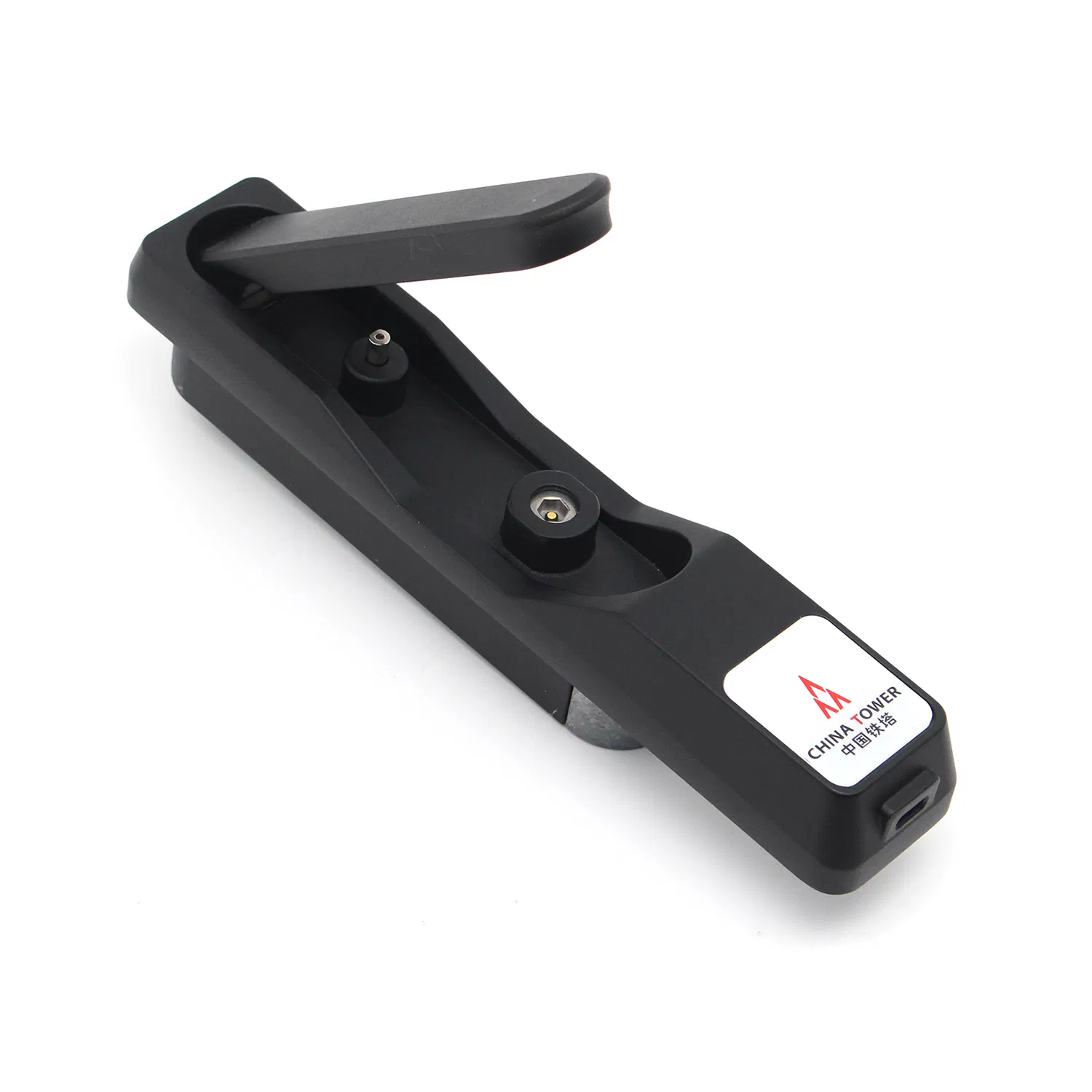

Iot Nb 4G Smart Electronic Key Management System APP Controlled Cabinet Lock

Basic Specifications

Model NO.

CRT-MS873-3

Certification

CE, ISO

Material

Stainless Steel

Working Principle

Electronically Controlled Lock

Protection Level

IP64

Service Life

Over 10 Years

Technology

Encryption Technology

Type

Mechatronic Lock

Packaging & Delivery

Package Size

46.00cm * 23.00cm * 14.00cm

Gross Weight

17.000kg

Product Description

Worried about thieves?
Always lost keys and have to replace locks?
Troublesome to charging electronic lock?
Wondering that the unlock records of your locks could be tracked?

Our solution provides the security and management intelligence you need!

Technical Parameters

Parameter Item	Specification Details
Lock core material	SUS304 Stainless steel
Lock body material	Zinc alloy spray plastic + SUS304
Operating voltage	3V - 5.5V
Operating environment	Temperature (-40°C~80°C), Humidity (20%~98%RH)
Unlocking times	≥50,000
Protection level	IP64
Encoding digits Number	128bit (No mutual opening rate)

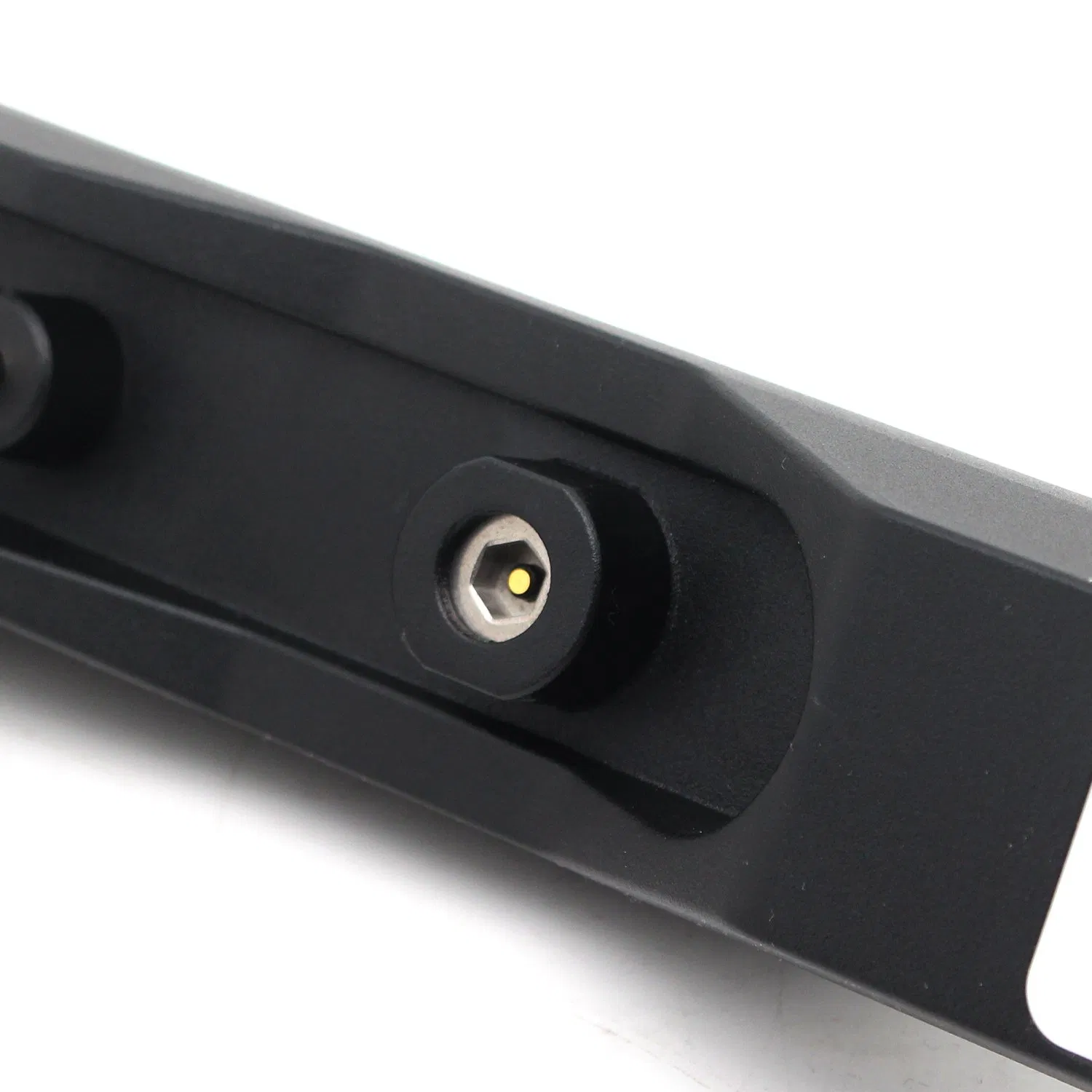

Lock cylinder technology	360° Idle design, Log Storage (Unlock, Lock, Patrol, etc.)
Encryption Technology	Digital encoding & encrypted communication technology

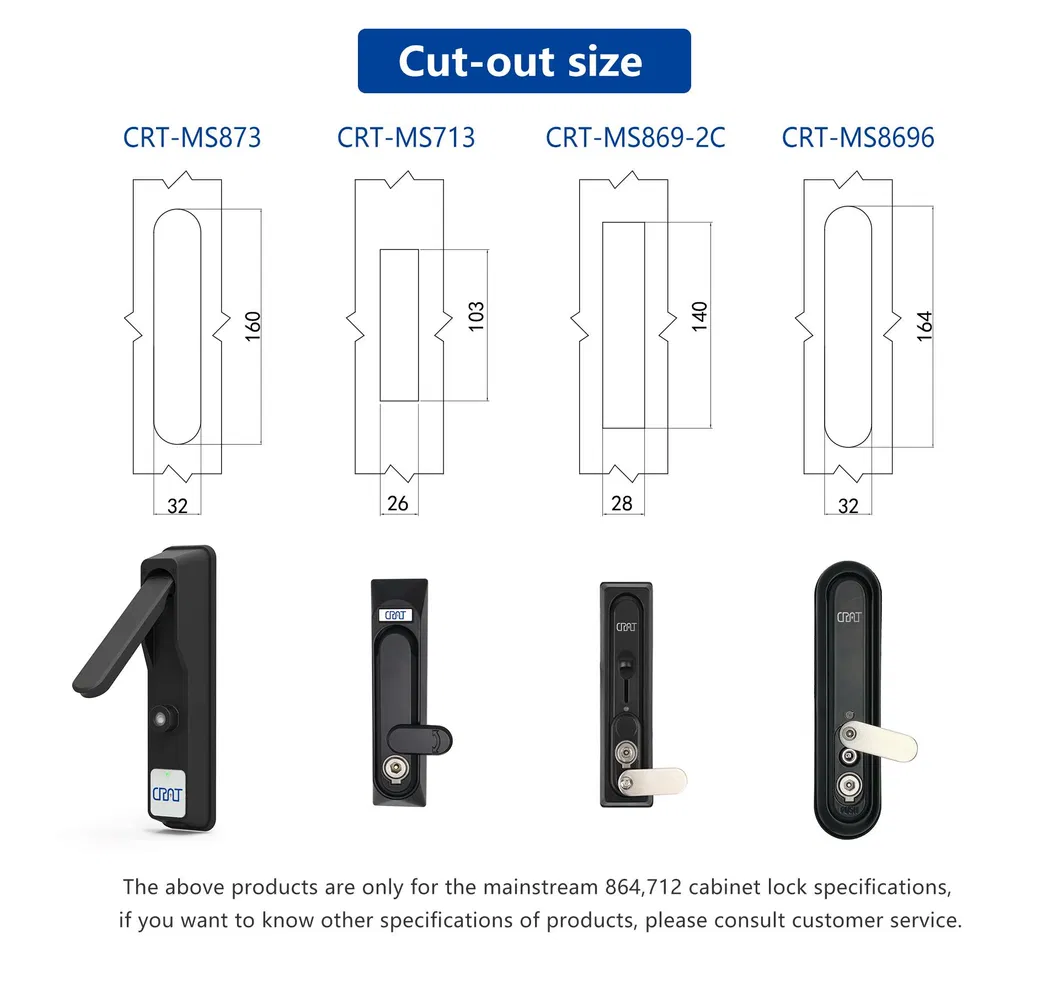

Create lock without power or wiring makes installation simpler and efficient.

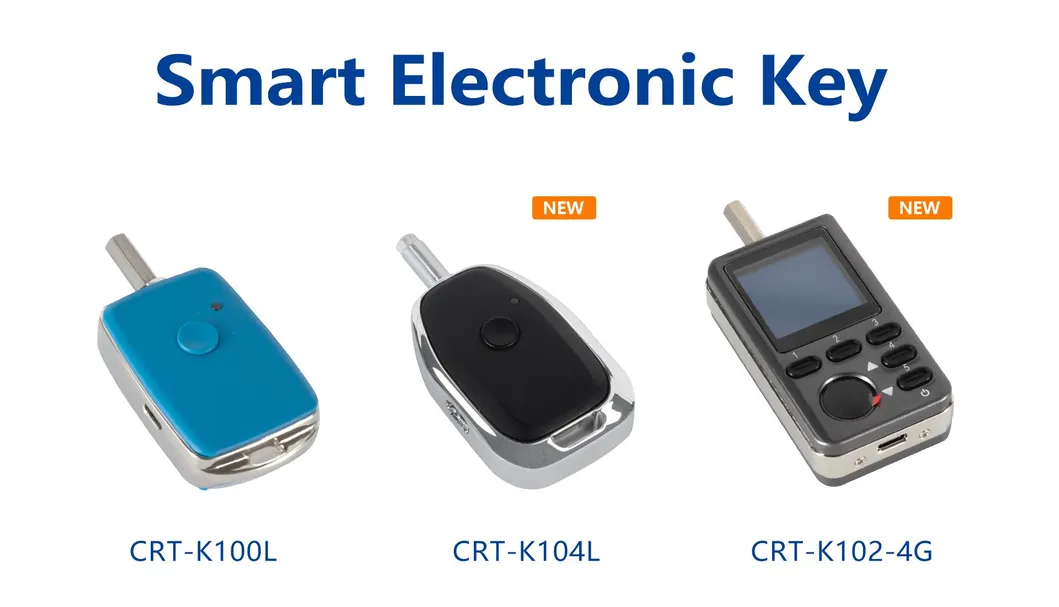

Smart Key & Management

Model	CRT-K100L/K104L	CRT-K102-4G
Operating voltage	3.3V-4.2V
Battery capacity	500mAh
Unlock times per charge	1000 times

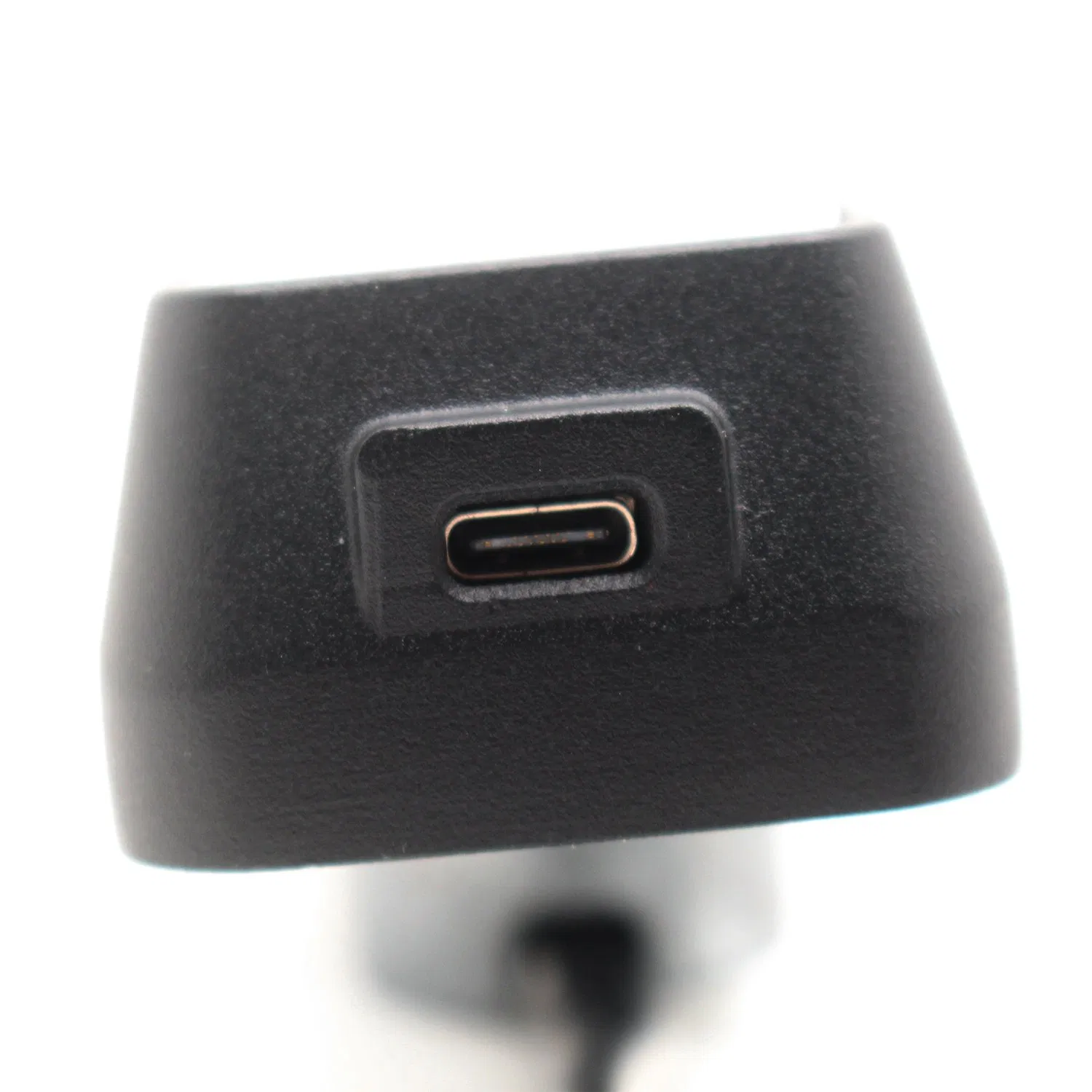

Charging time	2 hours
Protection level	IP67
Fingerprint identification	×	√
Visual screen	×	√
Remote authorization	×	√
NB-IoT/4G	×	√

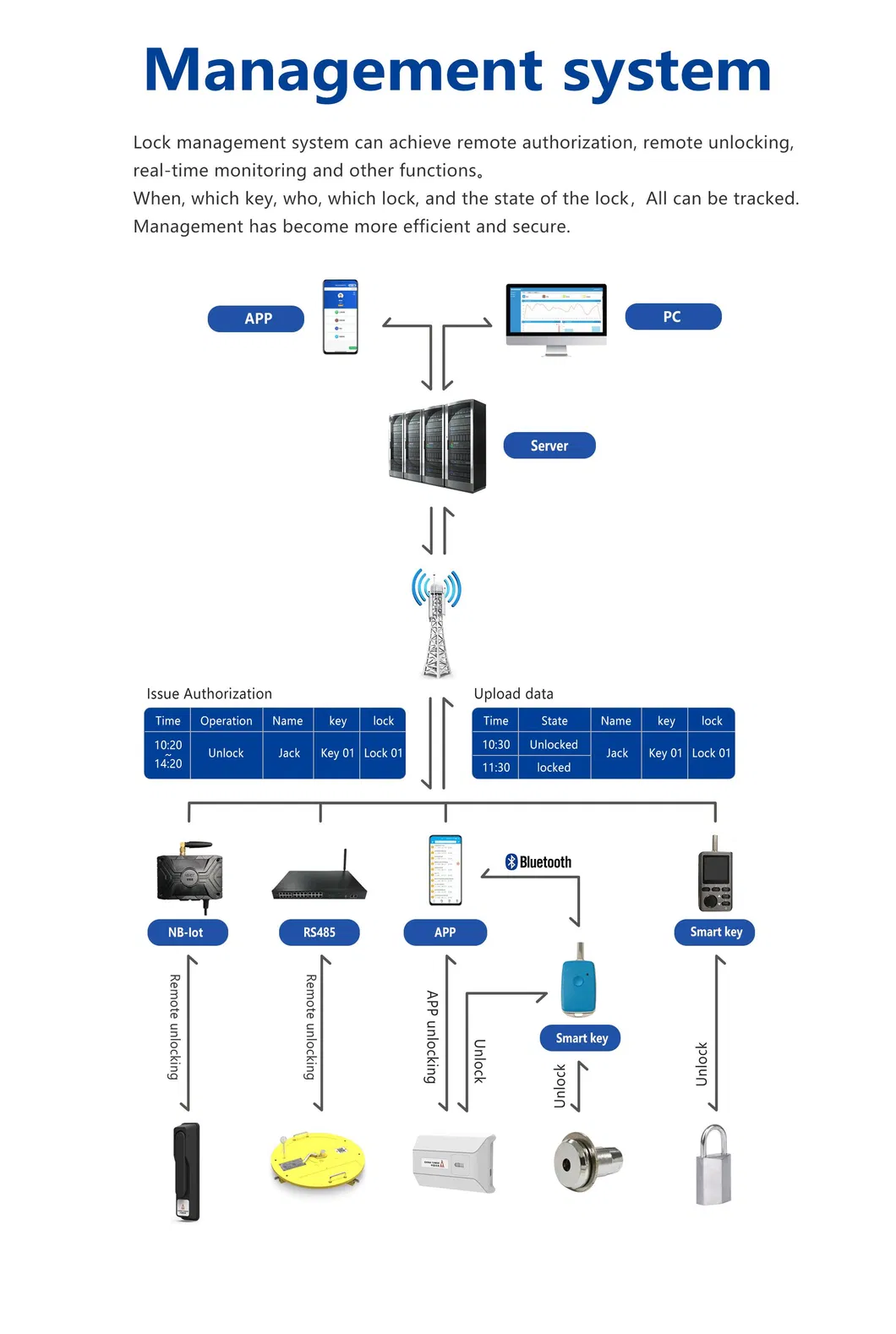

Software & Management

Swiftly disable lost or stolen keys.

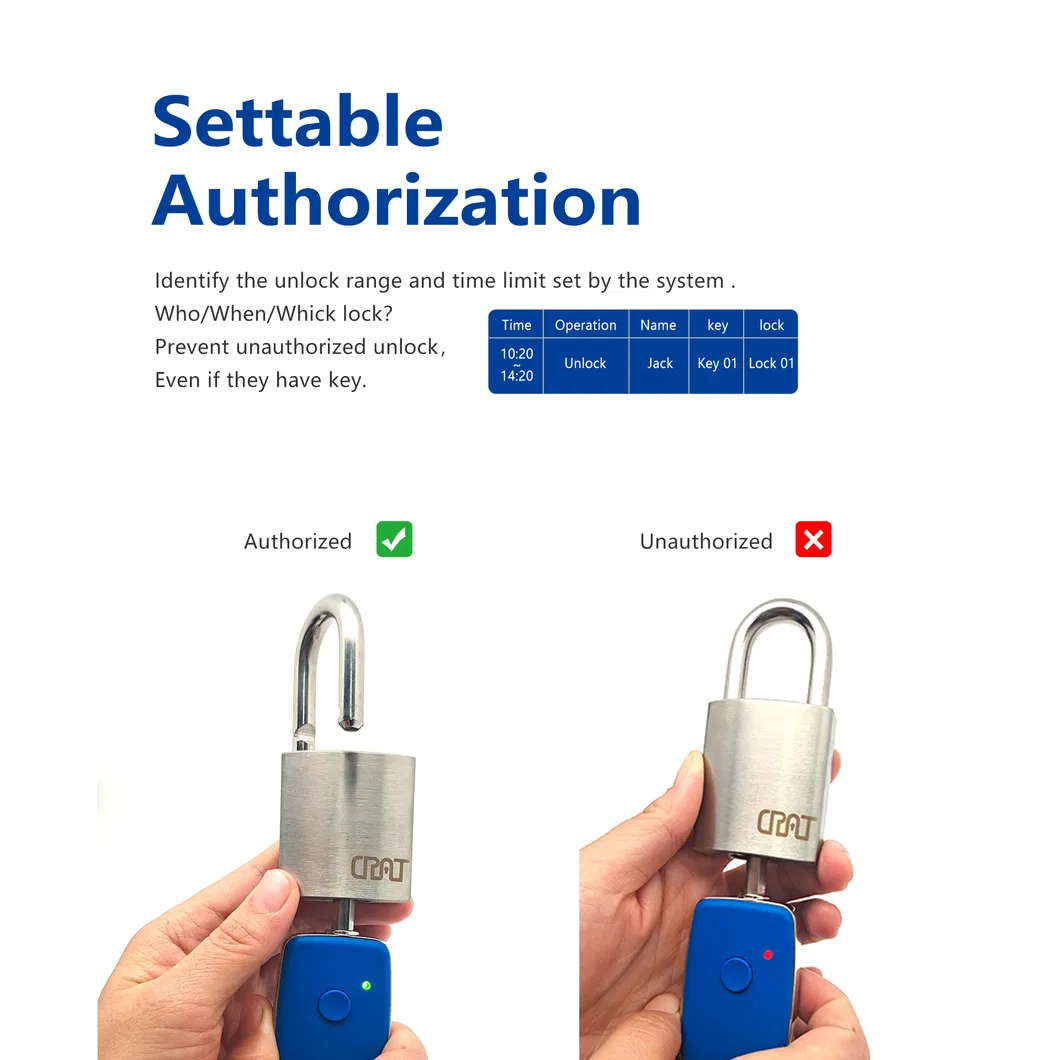

Assign unlock permissions to specific departments or individuals.
Visualization of lock locations via combining list and map views.
Electronic keys record all unlocking and locking data for auditing.
One key can open multiple kinds of locks, simplifying management.

Industry Applications

Our intelligent lock system is widely applied in communication machine rooms, outdoor control cabinets, optical cable transfer boxes, communication base stations, and more.

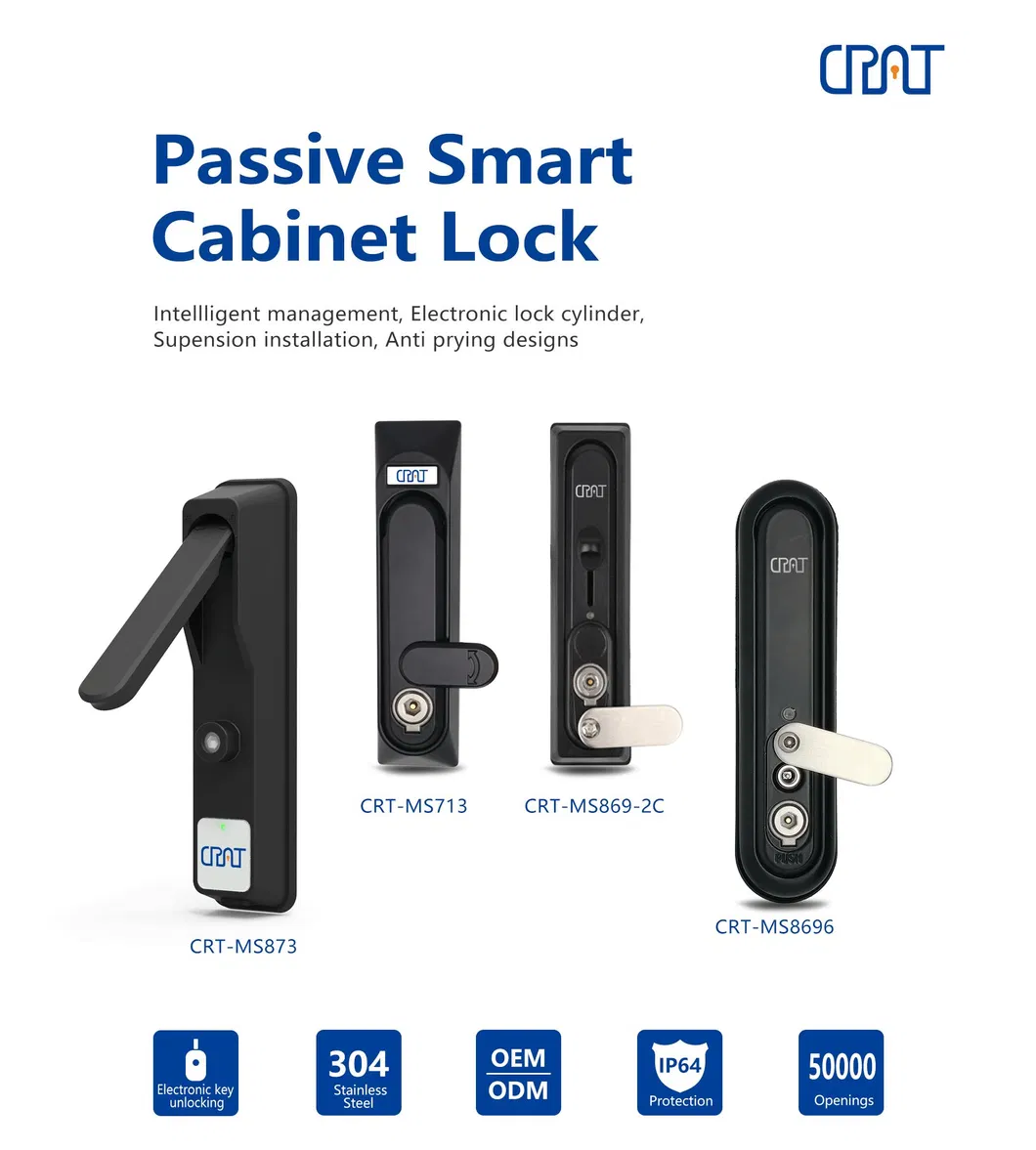

Main Products: Passive smart locks, Electronic Wireless Intelligent locks, Communication base-station locks, Passive padlocks, Bluetooth padlocks, NB Intelligent Optical box locks, Intelligent manhole cover locks, and Public passage Smart locks.

Frequently Asked Questions

How does a passive lock work without power?

The passive lock does not require an internal battery or wiring. It receives the necessary power for operation directly from the smart electronic key during contact.

What happens if a smart key is lost?

Lost or stolen keys can be immediately blacklisted and disabled through the management software, ensuring they can no longer be used to open any locks in the system.

Can I track who opened a specific lock?

Yes. Every unlock and lock event is recorded by the smart key. Once the key is synced with the software, you can view detailed logs of who accessed which lock and at what time.

Is the system suitable for outdoor use?

Absolutely. The locks feature an IP64 protection level and the keys are IP67 rated, designed to operate in harsh environments ranging from -40°C to 80°C.

Can one key open different types of locks?

Yes, the system is designed so that a single smart key can be authorized to open various types of locks (padlocks, cabinet locks, etc.), reducing the burden of carrying many physical keys.

Do you provide management software?

We offer both a free standalone version of the management software and a paid web-based version with advanced features and remote authorization capabilities.
