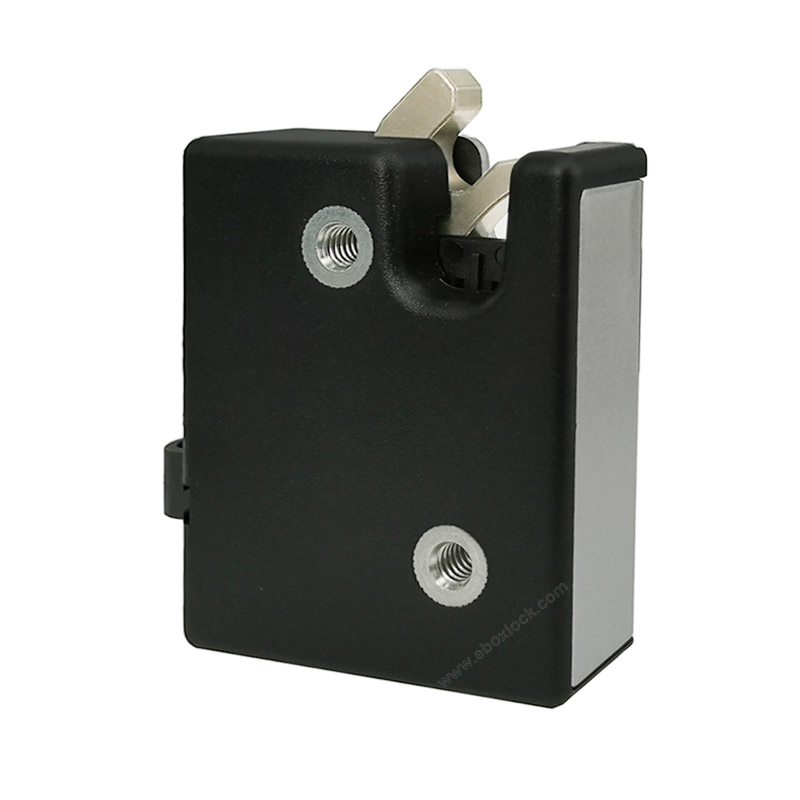

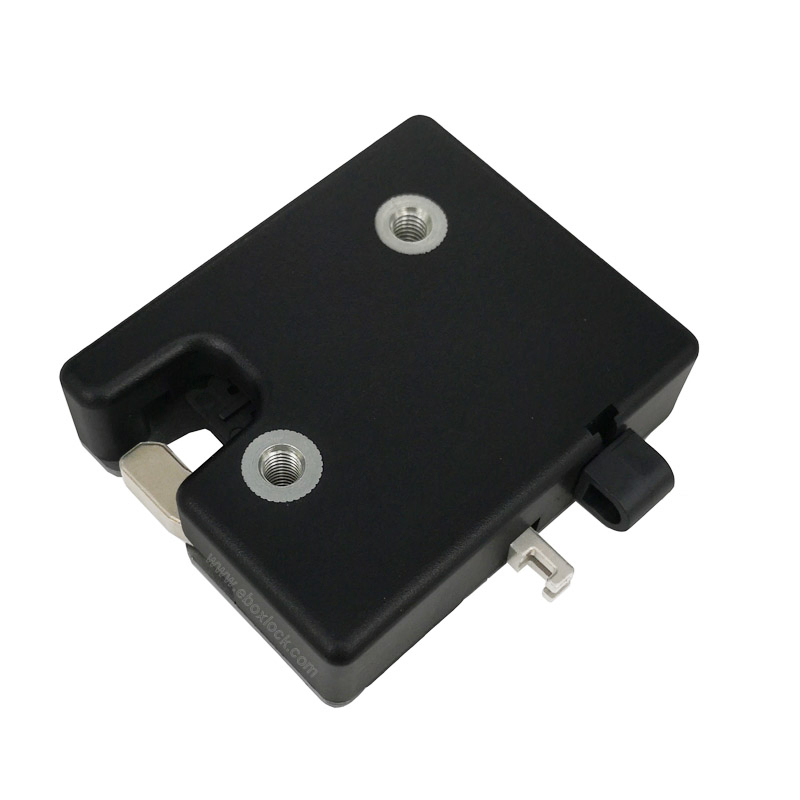

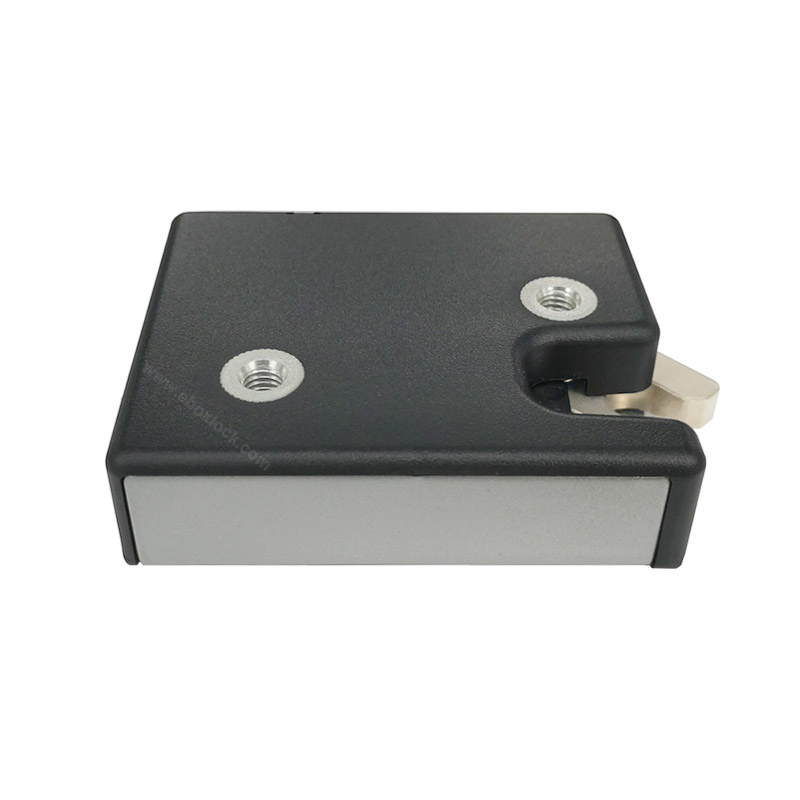

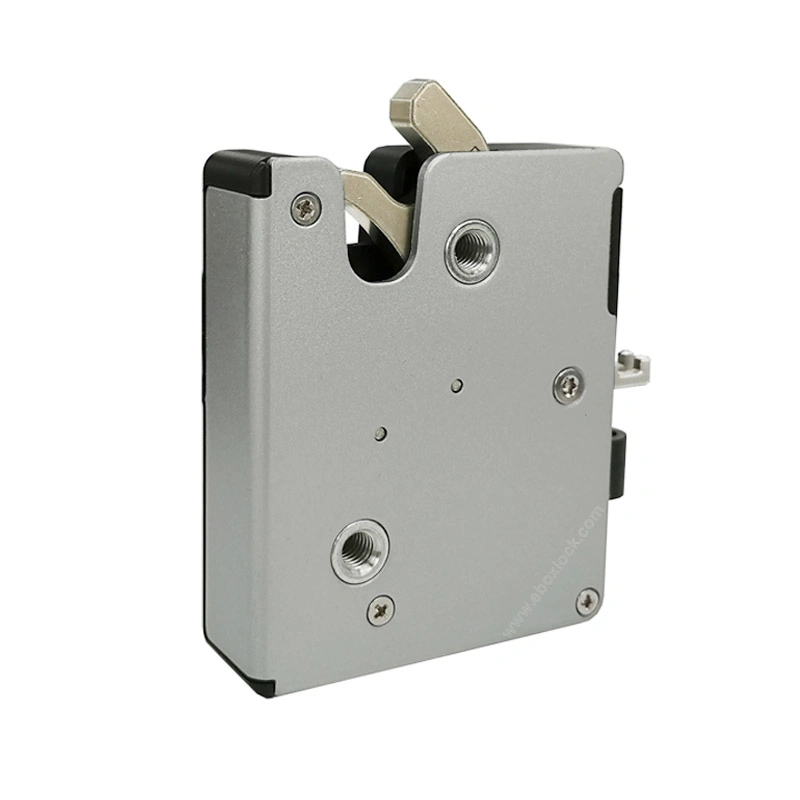

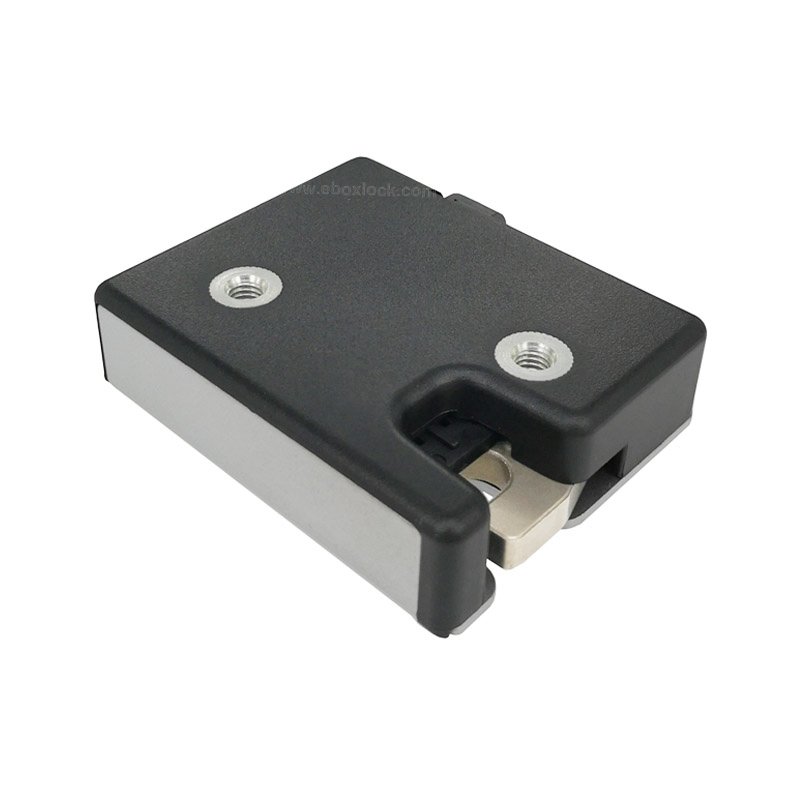

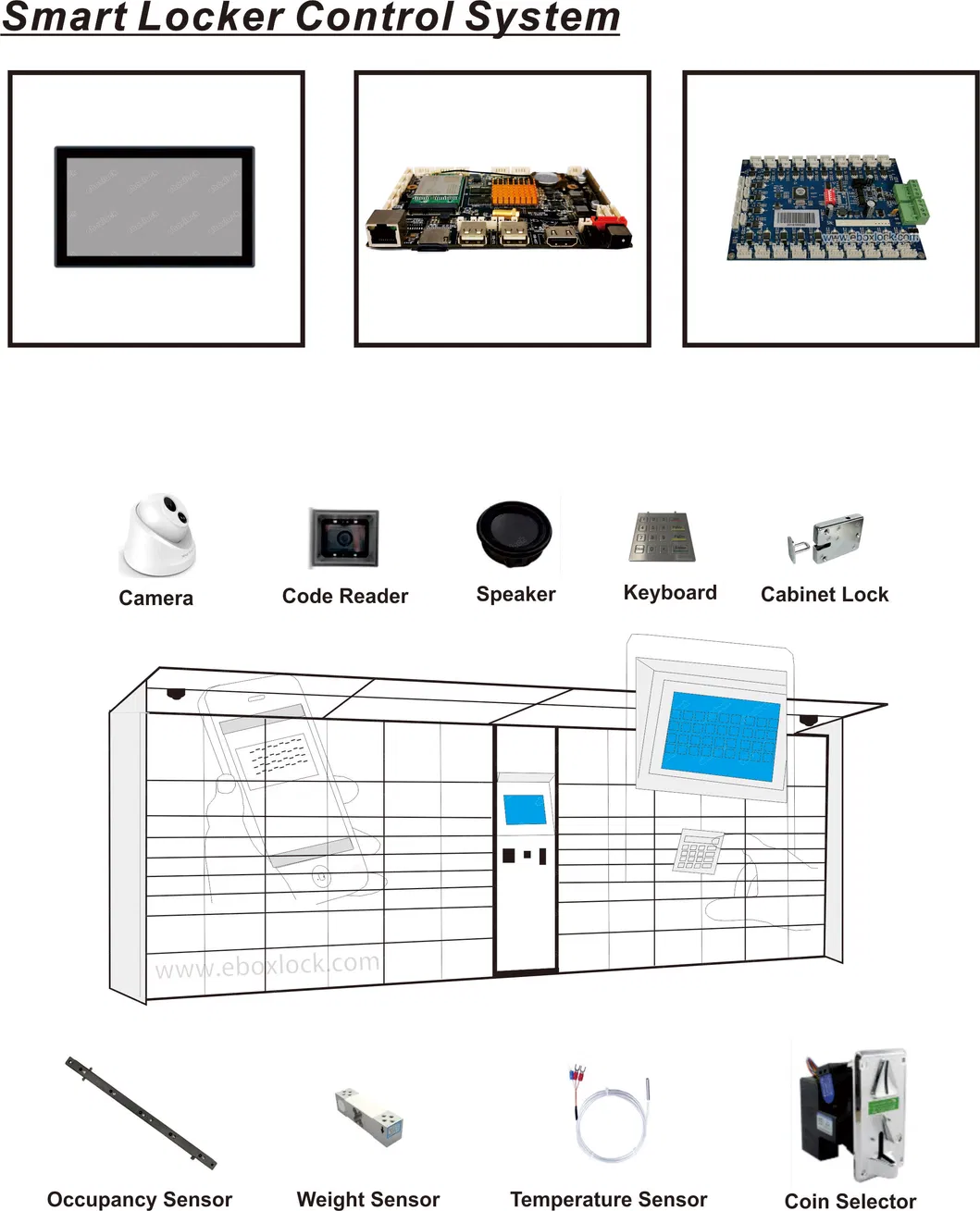

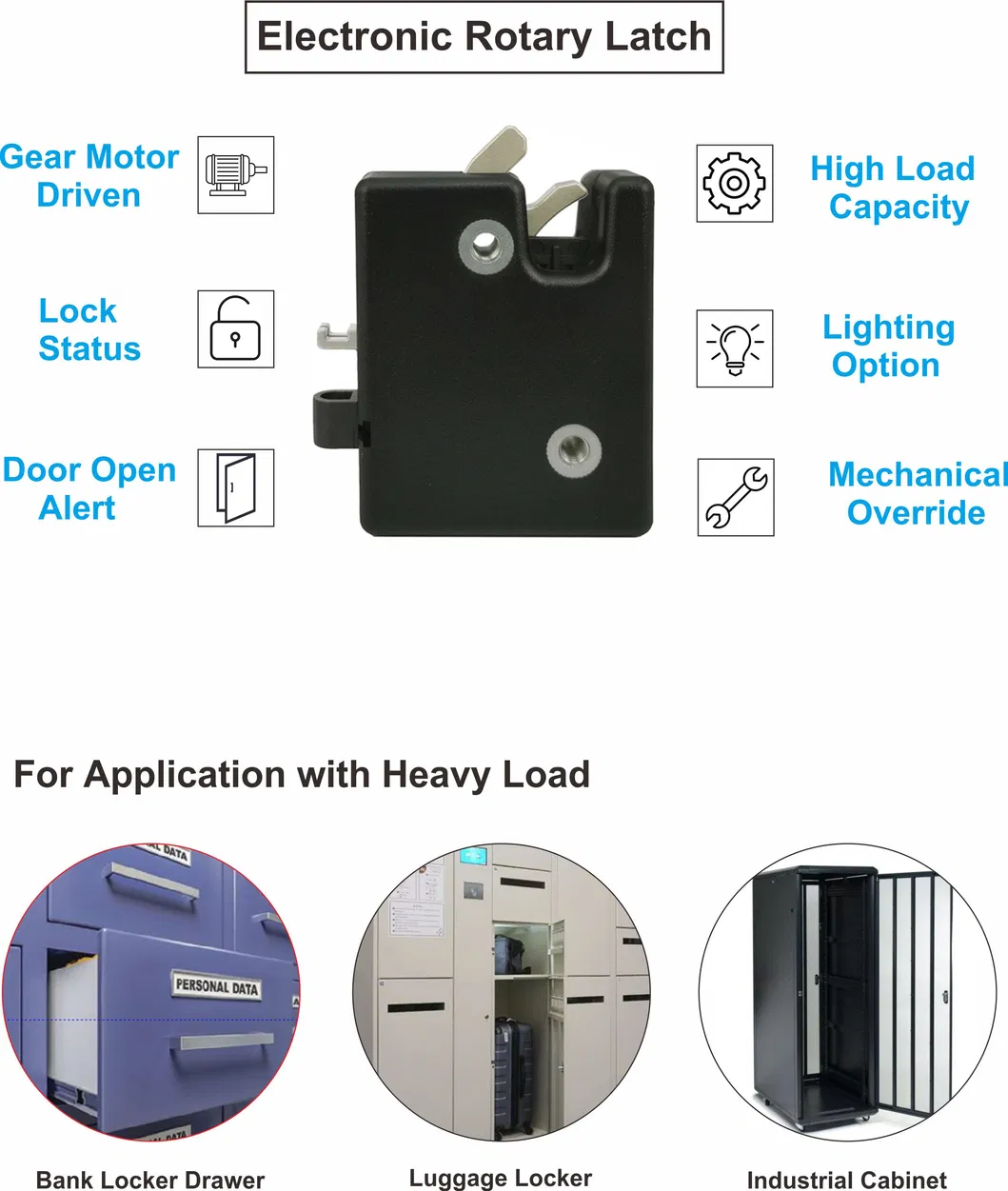

Electromechanical Cabinet Lock DJ5-ASHF is an electric lock driven by gear-motor, which distinguishes it by low power consumption and high load capability. Designed with dual sensors for door and lock for double security. An optional mechanical kits for manual override in case of power failure. With easy push-to-close operation, the latch builds an internal spring rod to push door open when electrified. It simplifies the access control of Power Station Locker, Electronic Locker Lock System and Vending Touch Kiosks.
| Parameter | Specification Details |
|---|---|
| Operation Voltage | 12VDC ±10% |
| Power Consumption | 200mA |
| Operation Mode | Fail Locked |
| Max. Power On | 1 second |
| Holding Force | 600KG |
| Cycle Rating | More than 300,000 |
| MS Contact Rating | 5A @125V |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions LxWxH | 76mm * 62.5mm * 20.3mm |
| Weight | 260g |
| Protection Class | IP40 |

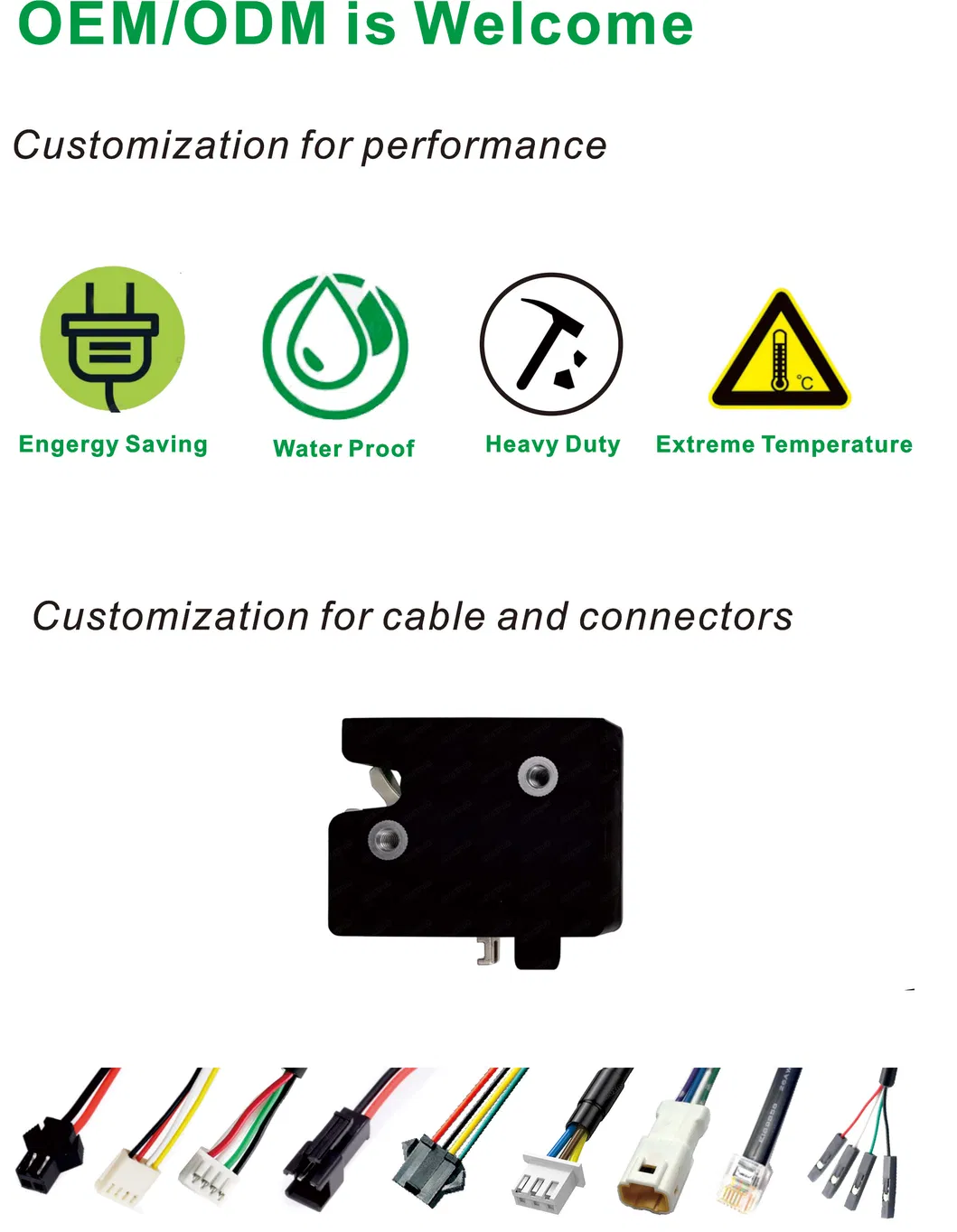

We offer customization for cable length and connector type to better meet the exact requirement of your application.
| Voltage | Current | Trigger Spring | Mounting | Material | Cable | Connector |
|---|---|---|---|---|---|---|
| 9V 12VDC 24VDC |
200mA | 4N 7N 15N 21N |
M6 thread (standard) M6 thru (optional) |
Steel (standard) Stainless steel (Optional) |
Twisted RVV Flat cable |
SM (standard) Molex KF2510 PH RJ11 |
The electronic cabinet lock is ideal for various applications as following:
It operates on an electronically controlled gear-motor mechanism. When electrified, the lock releases and an internal spring rod pushes the door open. It is designed as a fail-secure lock.
The electromechanical cabinet lock is built for high strength and durability, capable of withstanding up to 600KG (7000N) of mechanical force.
Yes, the lock features dual monitoring sensors. It can report both the door status (open/closed) and the latch status for enhanced security monitoring.
Yes, the lock supports an optional mechanical override kit which allows for manual emergency release in the event of a power failure.
Customization is available for input operating voltage (9V/12V/24V), spring tension (4N/7N/15N/21N), body materials (standard steel or stainless steel), cable styles, and connector models (such as SM, Molex, KF2510, PH, or RJ11).
The DJ5-ASHF cabinet lock has been thoroughly tested and is rated to successfully perform for more than 300,000 operational cycles.
