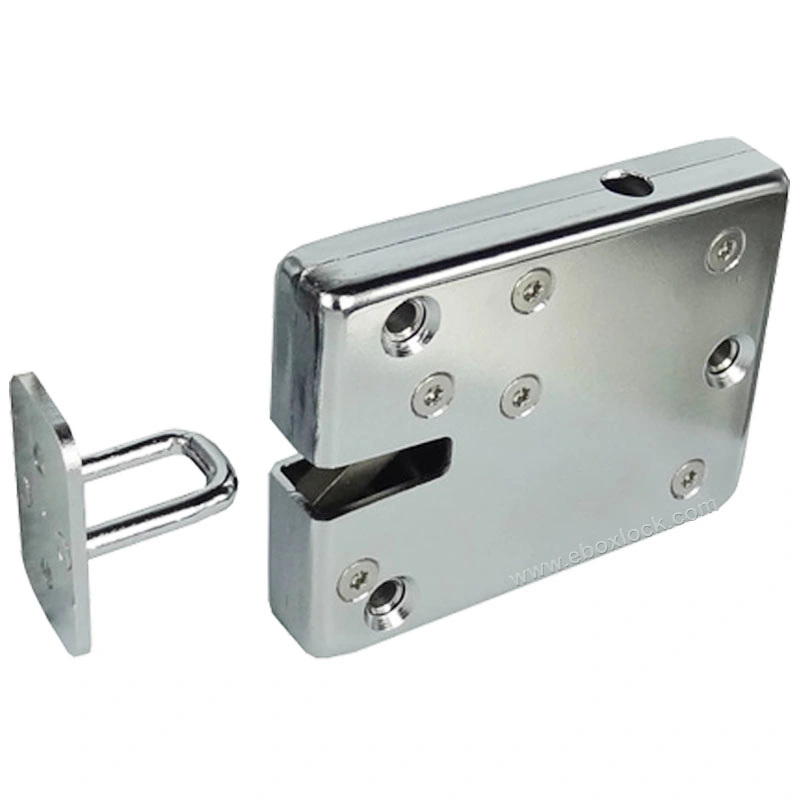

Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)

1 / 5

Electric Cabinet Lock with Reporting for Smart Electronic Lockers (MA1208S)

Customization:	Available
Material:	Steel Chrome Plating
Shape:	Interlock

Send Inquiry

Product Description

Basic Info

Model NO.	MA1208S
Usage	Drawer, Door, Cabinet and Lockers
Angel	180
Surface Finishing	Steel with Chrome Plating
Customized	Customized
Condition	New
Power Consumption	12V DC 800mA
Operation Mode	100kg
Cycle Rating	More Than 1,000,000 Times
Ms Contact Rating	3A @125V
Dimensions Lxwxh	72mm56mm13.8mm
Protection Class	IP20
Certificate	CE, RoHS, FC, ISO9001
Service	OEM/ODM Accepted
Transport Package	88mmx70mmx40mm
Specification	Optional Stainless Steel
Origin	China
HS Code	83013000
Production Capacity	10k Per Month

Packaging & Delivery

Package Size	13.00cm * 11.00cm * 9.00cm
Package Gross Weight	0.250kg

Product Description

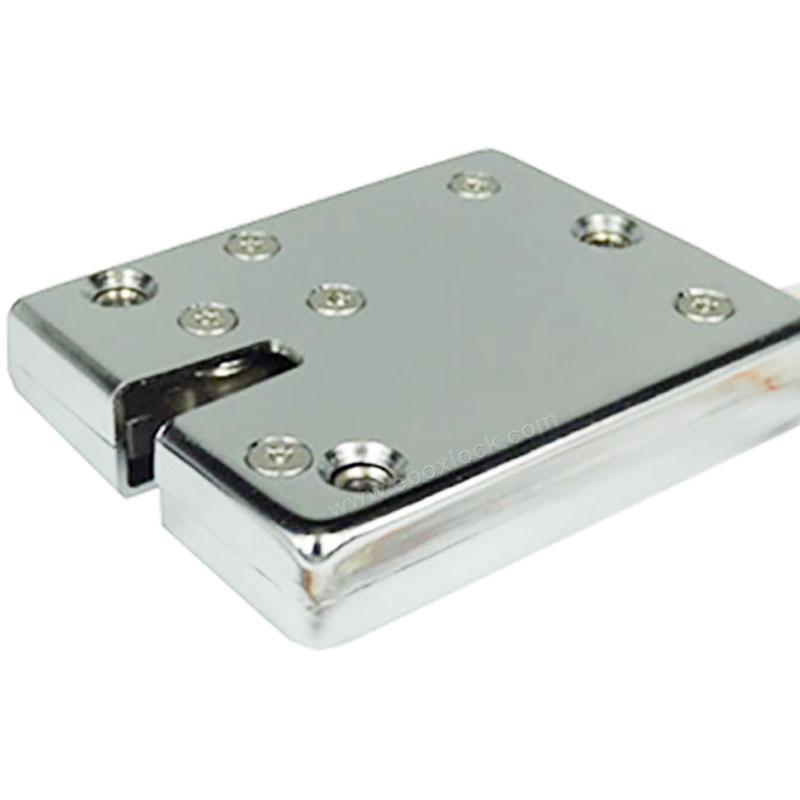

Electric Cabinet Lock MA1208S is a compact and all-metal constructed lock designed to provide keyless locking solution for cabinets, drawers and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation. Lock sensor is available for detecting door status. The cabinet lock is compatible with any access control system or standalone cabinet locking controller. It allows mechanical override for emergency open. The electric cabinet lock is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet locking applications.

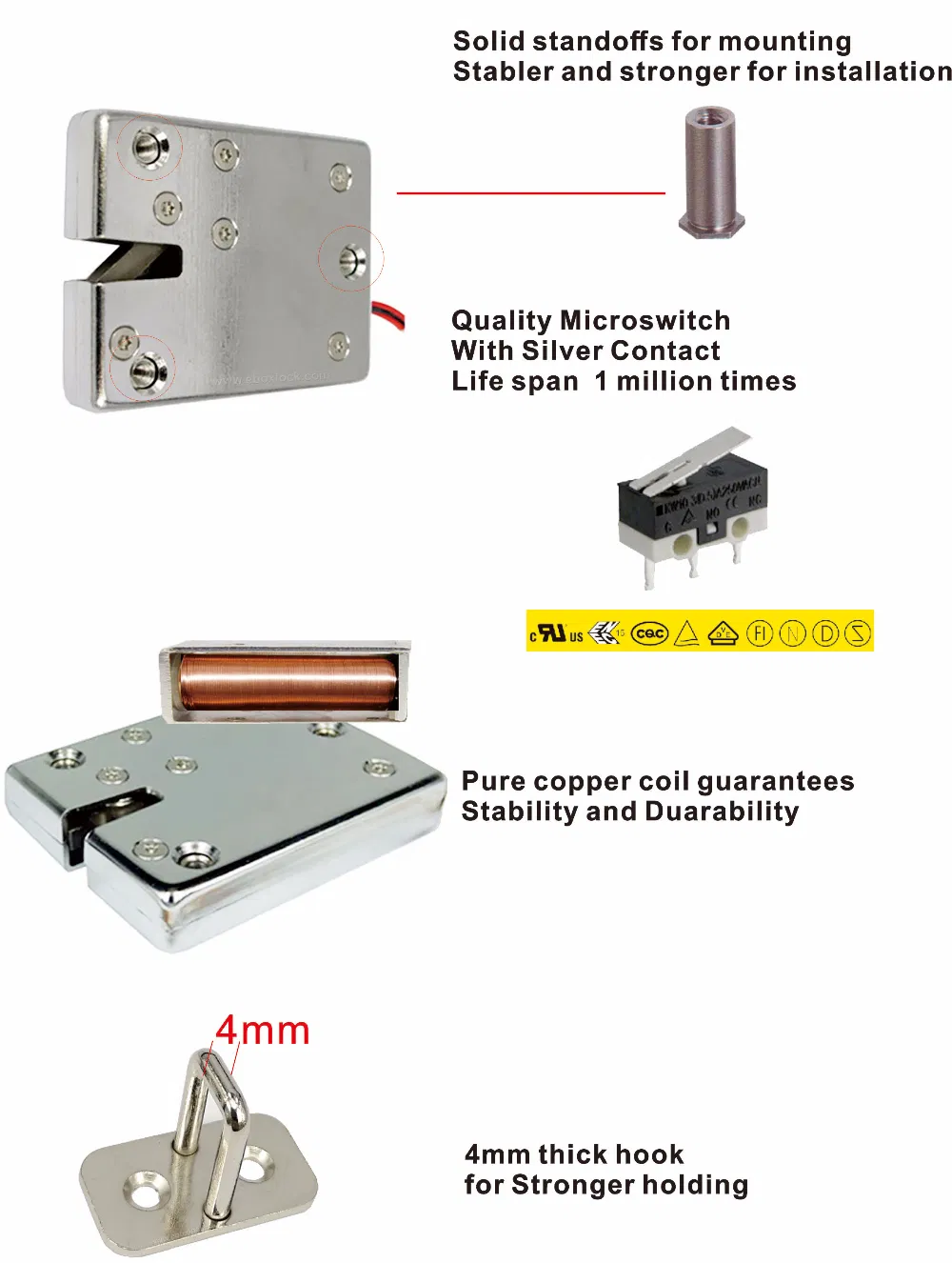

Features

Available in 12VDC or 24VDC
Superior heavy duty metal construction
Chrome-plated steel housing
Convenient mechanical override enables manually release during power failure
Three-bolt regular triangle mounting enables high security and low install cost
Optional internal lock switch for detecting open/close output signal
Accepts access control signals from numeric keypad, RFID card, remote or fingerprint
Can be fitted to Cabinets, lockers, drawers and steel furniture etc
Patented Design
2 years limited warranty

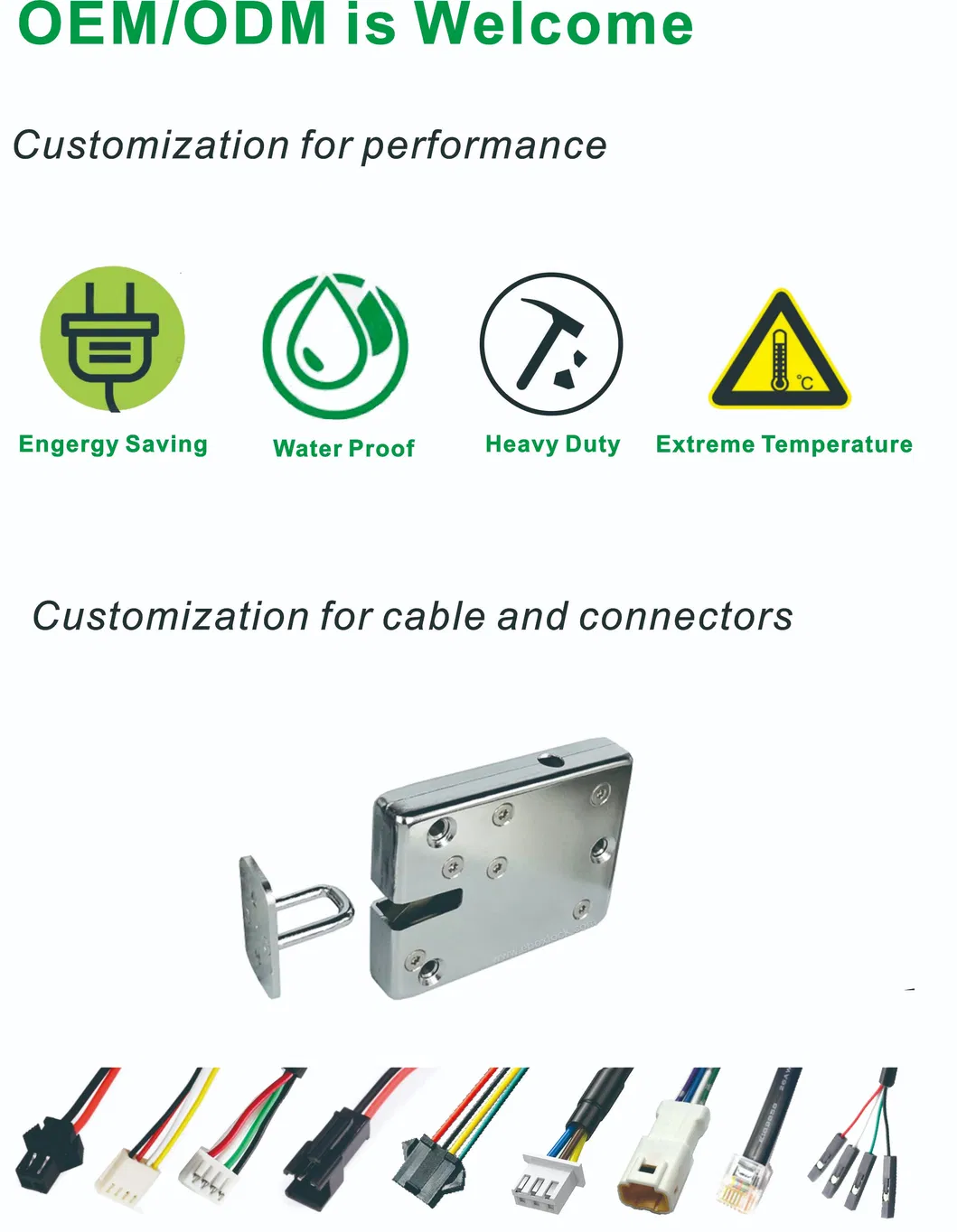

Options for Customization

Voltage	Current	Trigger Spring	Mounting	Material	Cable	Connector
9V 12VDC 24VDC 48V	400mA 800mA 1500mA 2000mA	4N 7N 15N 21N	M4 thread (standard) M4 thru (optional)	Steel (standard) Stainless steel (Optional)	Twisted RVV Flat cable	SM (standard) Molex KF2510 PH RJ11

Specifications

Operation Voltage	12/24VDC intermittent ±10%
Power Consumption	12V DC 800mA
Operation Mode	Fail Locked
Holding Force	150KG
Maximum power on time	Less than 30 second
Solenoid	Rated for intermittence use
Cycle Rating	More than 1,000,000 times

MS Contact Rating	2A @25V
Mechanical Override	7mm hole
Working Temperature	-20ºC ~ +60ºC
Dimensions LxWxH	72mm56mm13.8mm
Gross Weight	250g
Protection Class	IP20
Compliance	CE and RoHS certificate

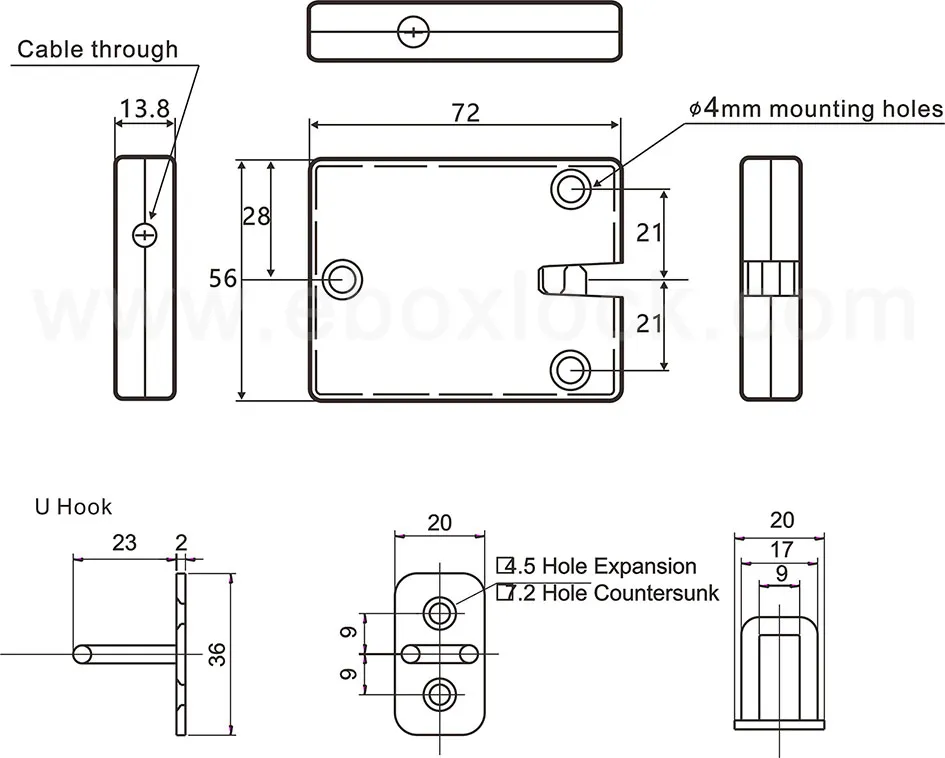

Dimension

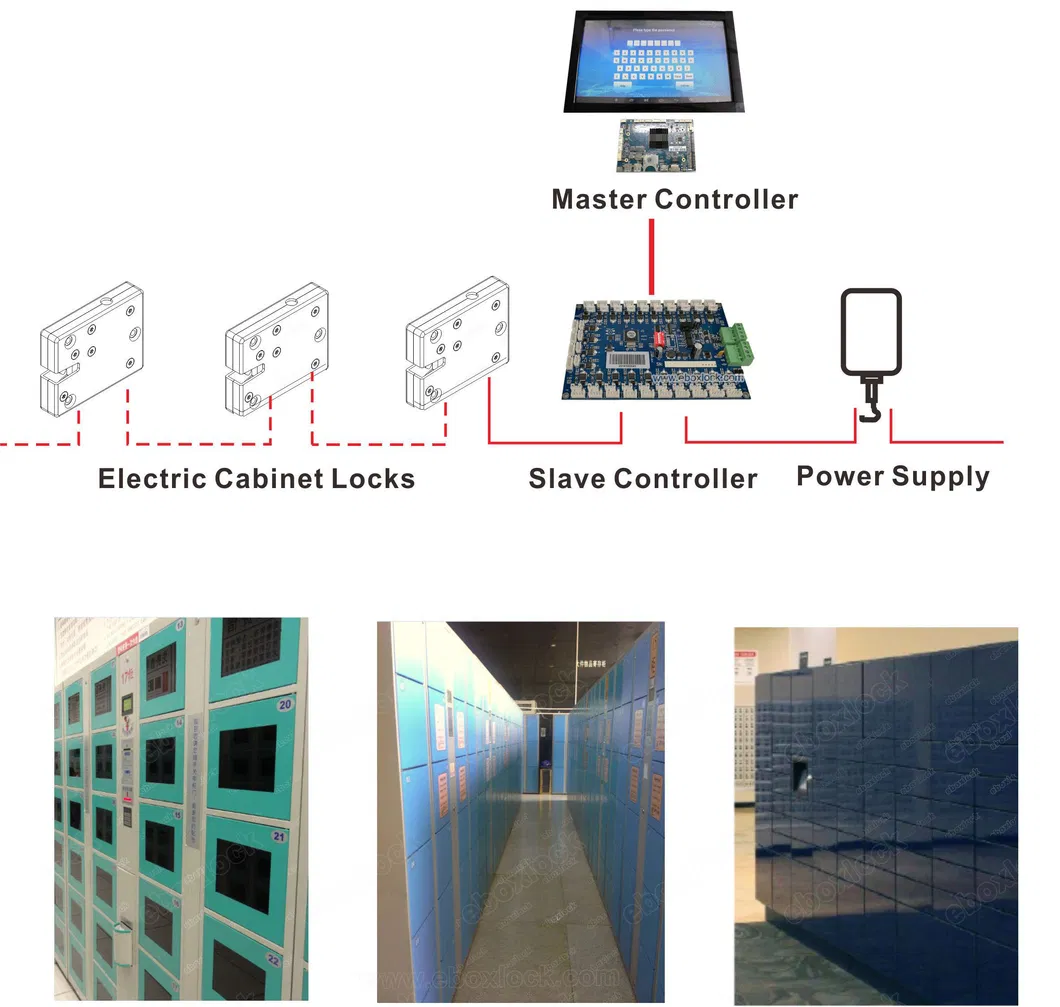

Applications

The electric cabinet lock is ideal for various applications as following:

Parcel Delivery Lockers Smart Lockers Vending Machine Lockers Telecommunication Kiosks Bank Locker Kiosks and Cash Drawers Electronic Mailboxes Electronic Motorcycle Trunk Smart Bike & Scooter station Lockers Pharmaceutical cabinets, cash drawers and display cases Beverage Freezers & Keyless Refrigerator Lockers

Package & Quality

Electric Cabinet Lock Quality Control Showcase

Frequently Asked Questions

What is the operating voltage of the MA1208S electric cabinet lock?

The lock operates on 12VDC or 24VDC intermittent ±10%. Power consumption is 12V DC at 800mA. Options for customization also include 9V and 48V.

Does this electronic lock feature a manual override in case of power failure?

Yes, it features a convenient mechanical override via a 7mm hole to manually release the lock during emergency power failures.

What is the cycle life rating of the lock?

The MA1208S has a high durability design, rated for more than 1,000,000 operation cycles.

What customization options are available?

We offer custom options for voltage (9V/12V/24V/48V), current (400mA-2000mA), trigger spring force (4N-21N), mounting options, housing material (steel or stainless steel), as well as different cable and connector models (such as SM, Molex, KF2510, PH, RJ11).

What are the primary applications of this lock?

It is ideal for parcel delivery lockers, smart lockers, vending machines, telecommunication kiosks, cash drawers, medicine cabinets, mailboxes, and keyless refrigerator lockers.

What is the protection rating and temperature range of this lock?

The lock carries an IP20 protection class rating and operates reliably in temperatures ranging from -20ºC to +60ºC.
