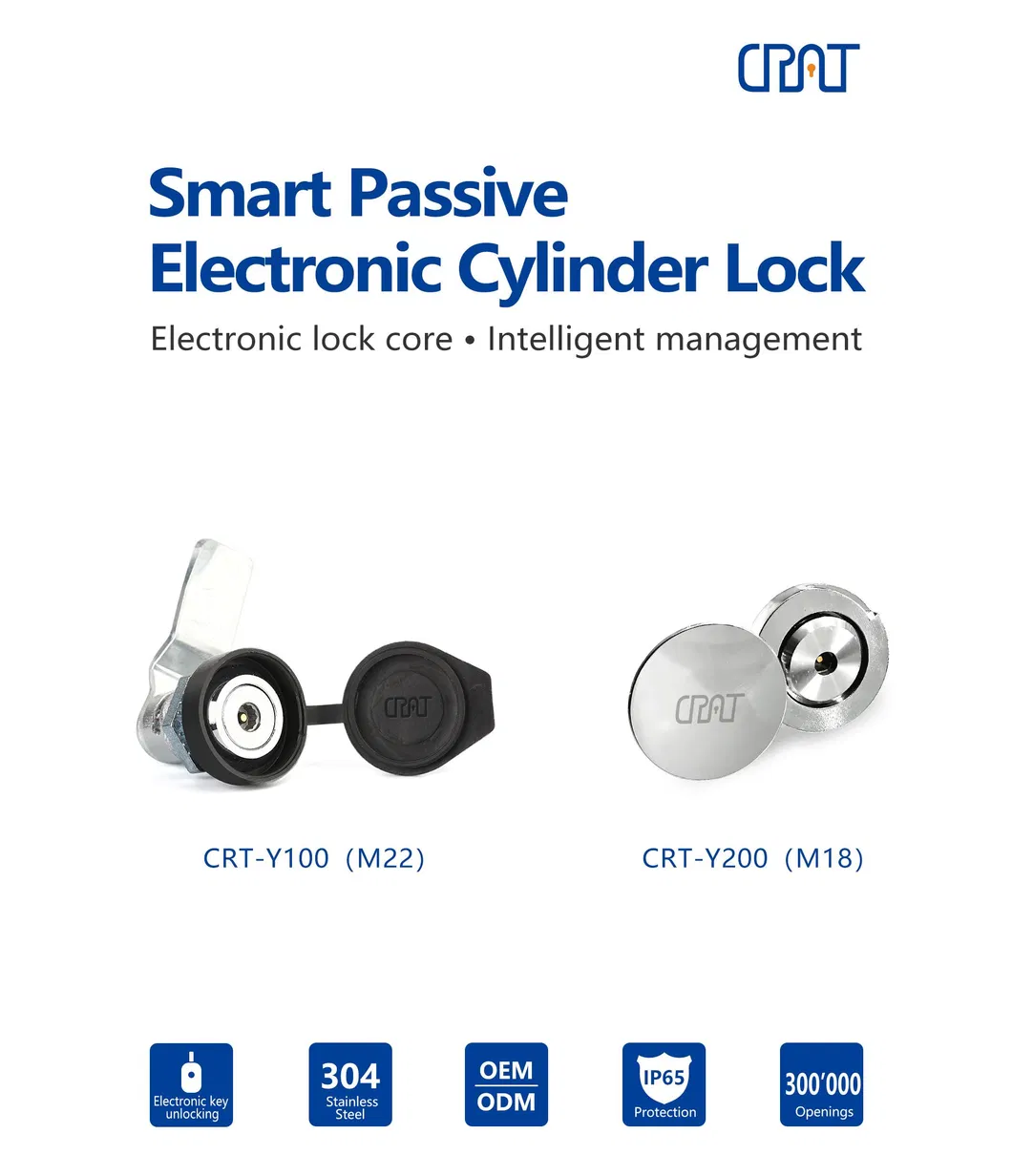

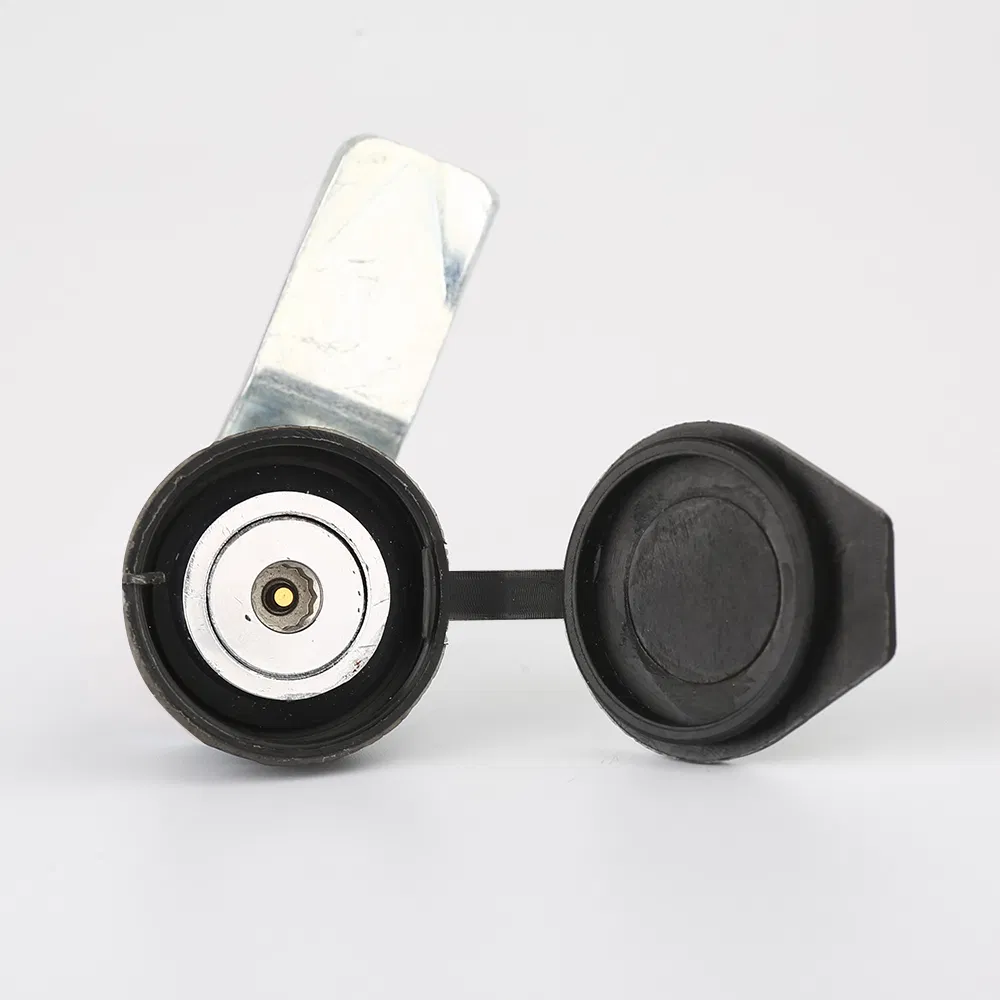

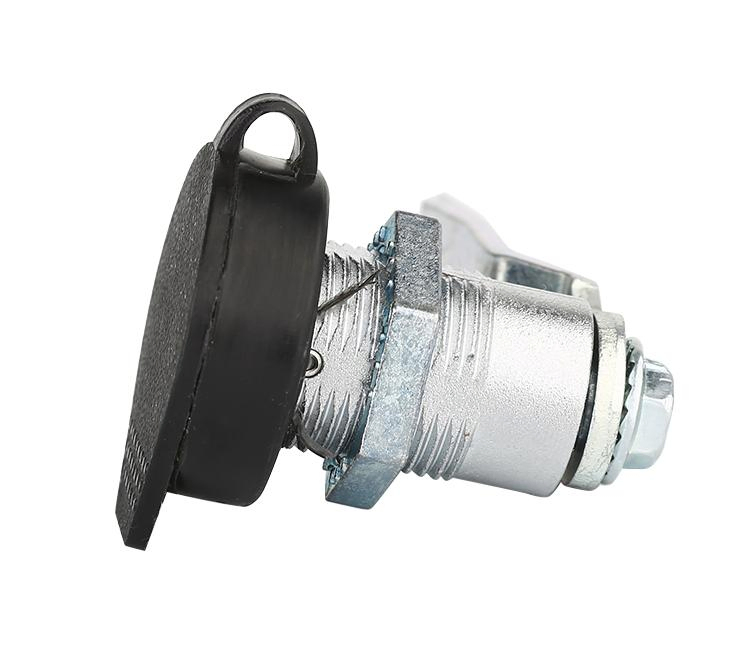

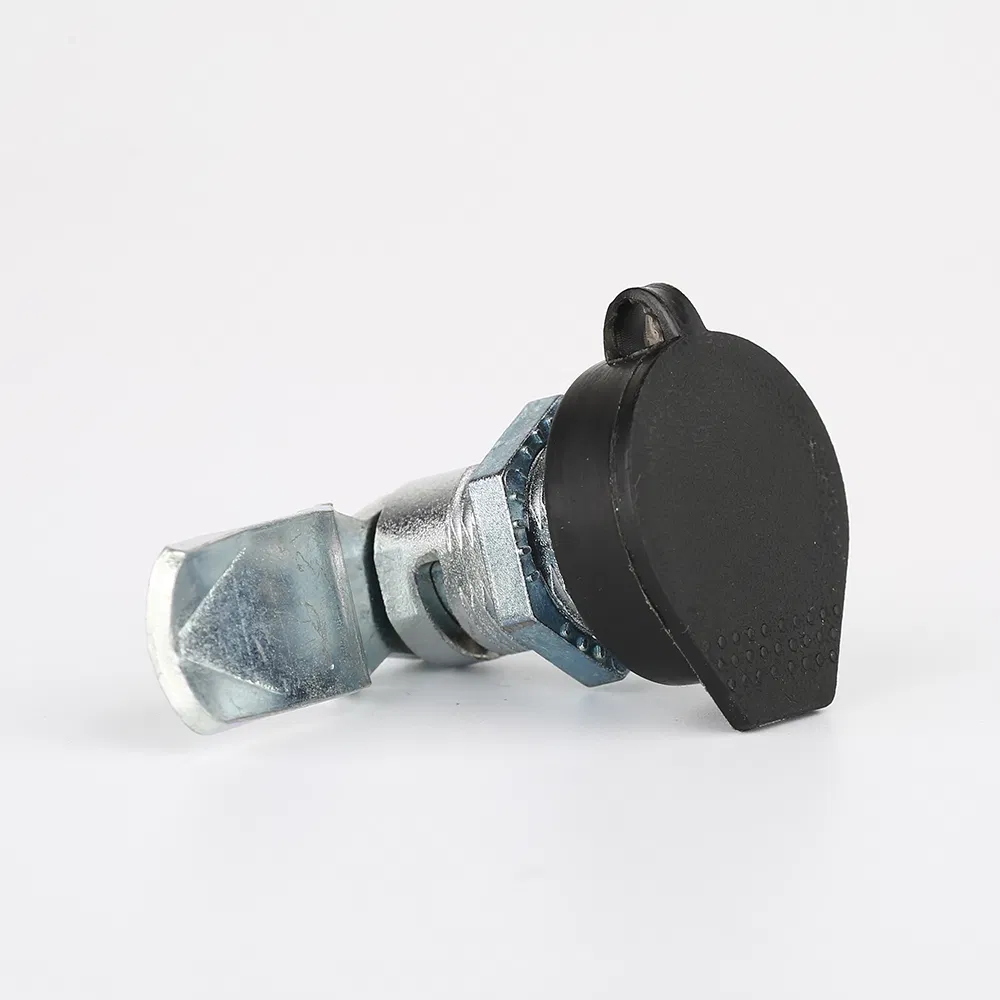

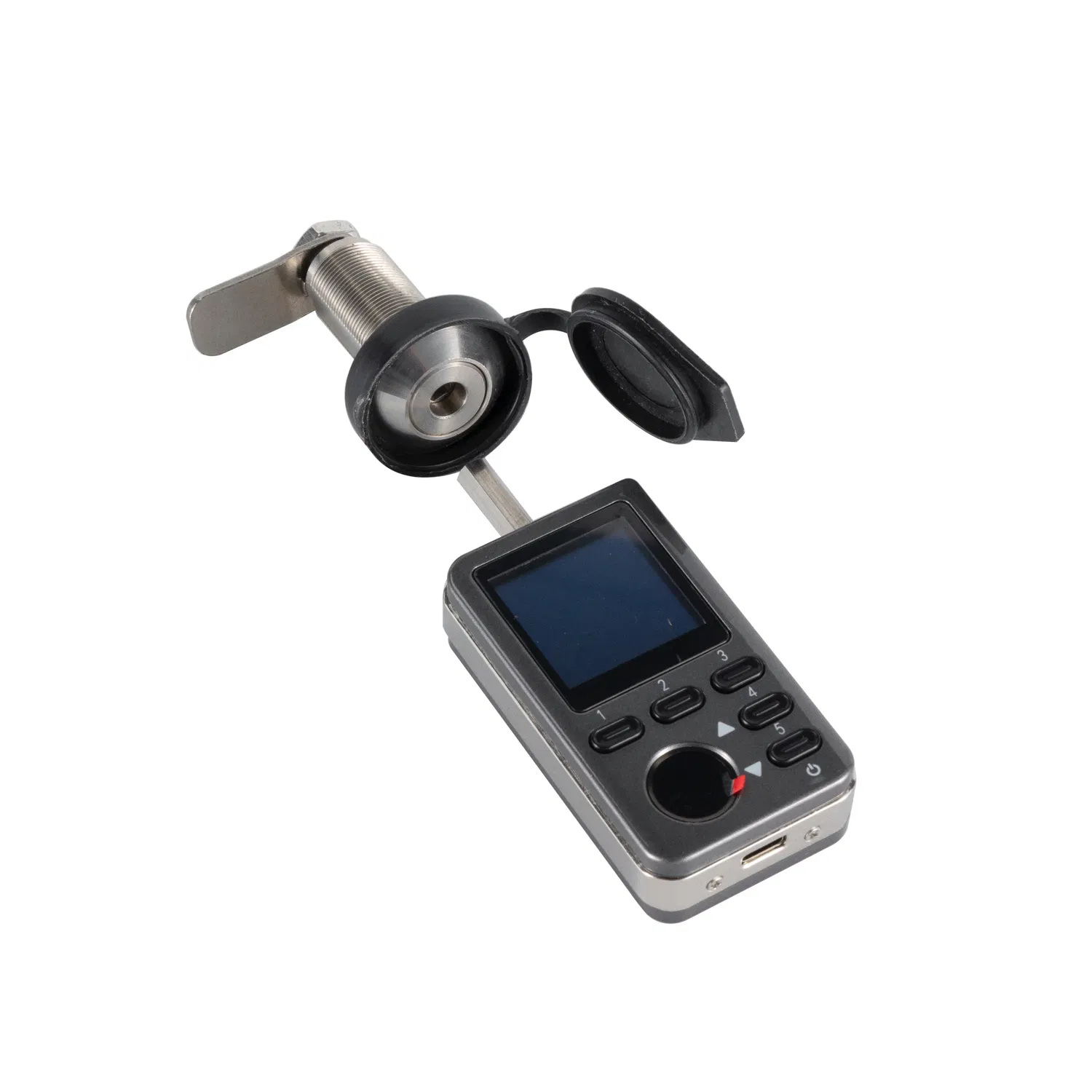

Electronic Key Smart Cabinet Cam Lock with Flexible Authorization

1 / 5

Electronic Key Smart Cabinet Cam Lock with Flexible Authorization

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

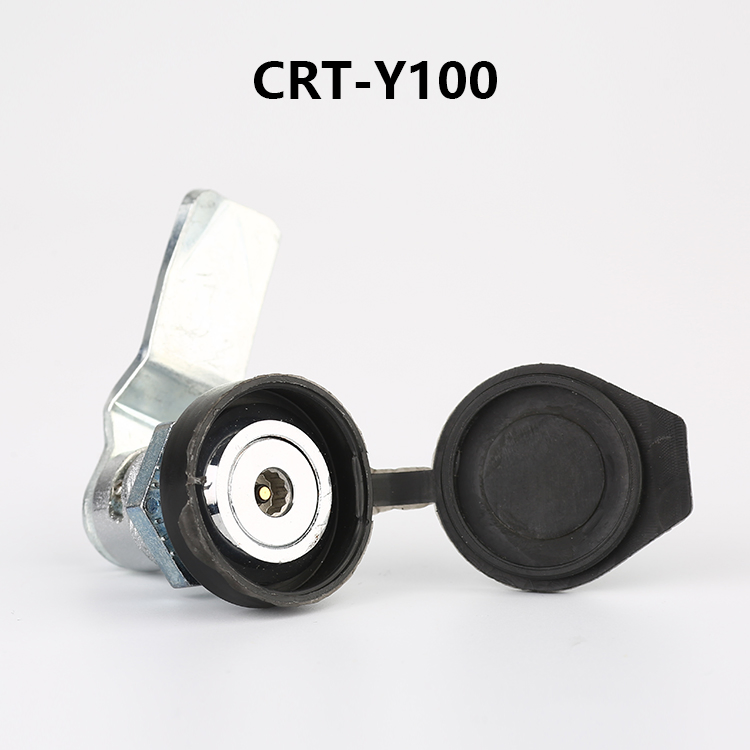

CRT-Y100

Certification

RoHS, CCC, FCC, CE, ISO

Material

304 Stainless Steel

Protection Level

IP68

Working Principle

Electronically Controlled Lock

Service Life

50,000 Times

Technology

AES128 Encryption

HS Code

8301300000

Product Description

● Worried about thieves?

● Always lost keys and have to replace locks?

● Too many keys, hard to figure out?

● Troublesome to charging electronic lock?

● Records of your locks could be tracked?

● Need temporary authority and audit reports?

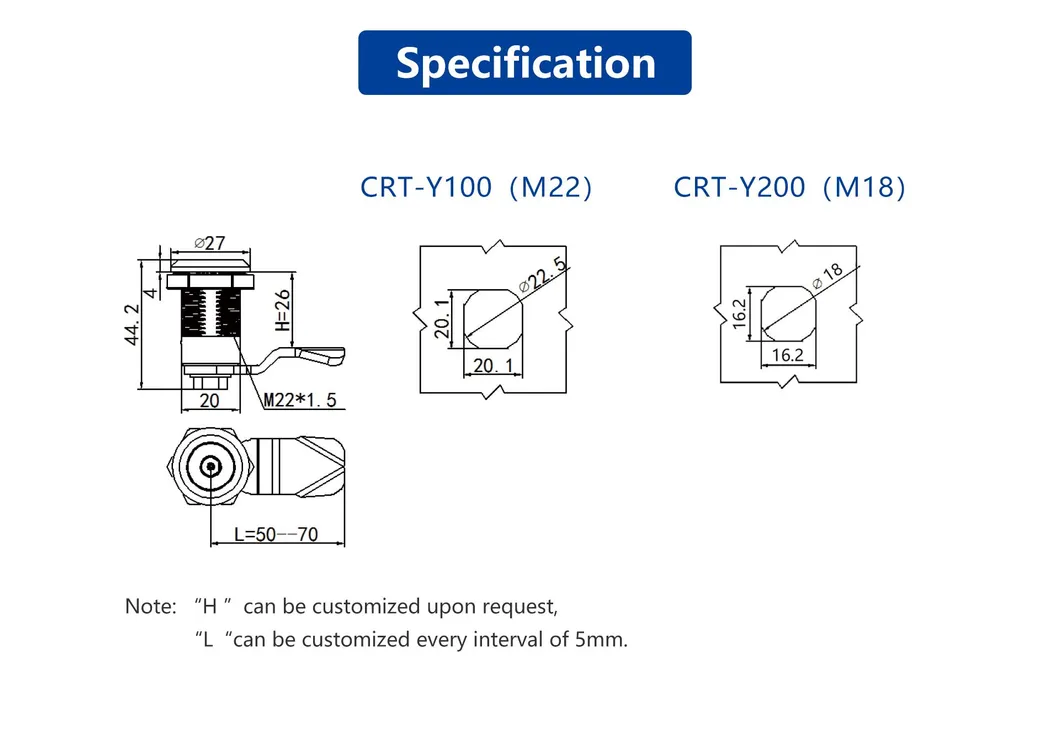

Technical Specifications
Lock body material	SUS304 Stainless steel
Operating voltage	3V-5.5V
Operating environment	Temperature(-40°C~80°C), Humidity(20%~98%RH)
Unlocking times	≥300,000
Protection level	IP65
Encryption Technology	128-bit digital encoding & encrypted communication
Lock cylinder technology	360° Idle design to prevent violent opening

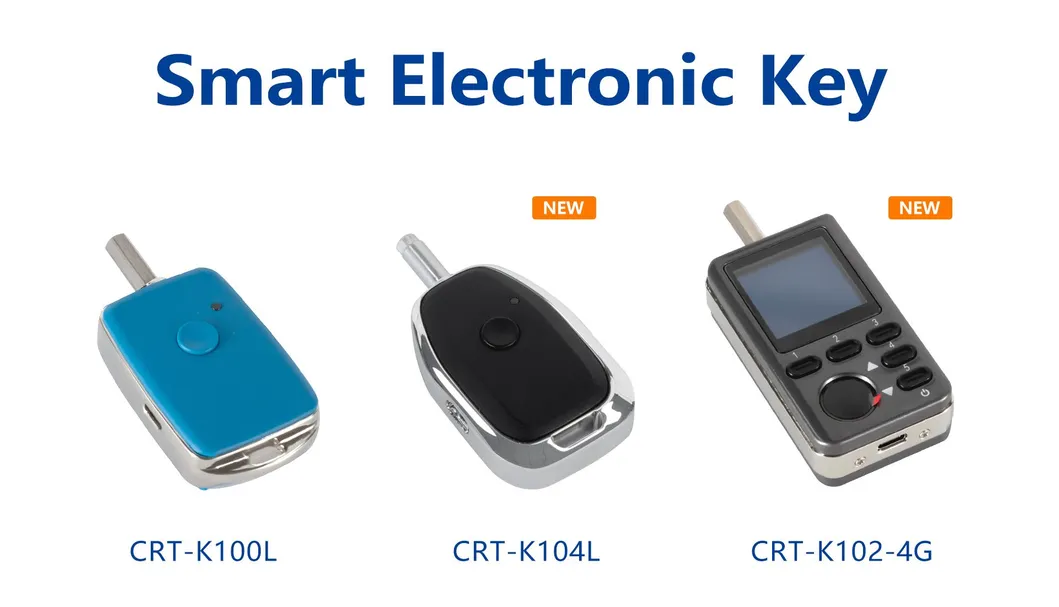

Key Parameters

Feature	Model CRT-K100L/K104L	Model CRT-K102-4G
Battery Capacity	500mAh	500mAh
Unlock times per charge	1000 times	1000 times
Unlock Record Storage	100,000 pieces	100,000 pieces
Fingerprint ID	No	Yes
Visual Screen	No	Yes
Remote Authorization	No	Yes
NB-IoT/4G	No	Yes
Bluetooth	Yes	Yes

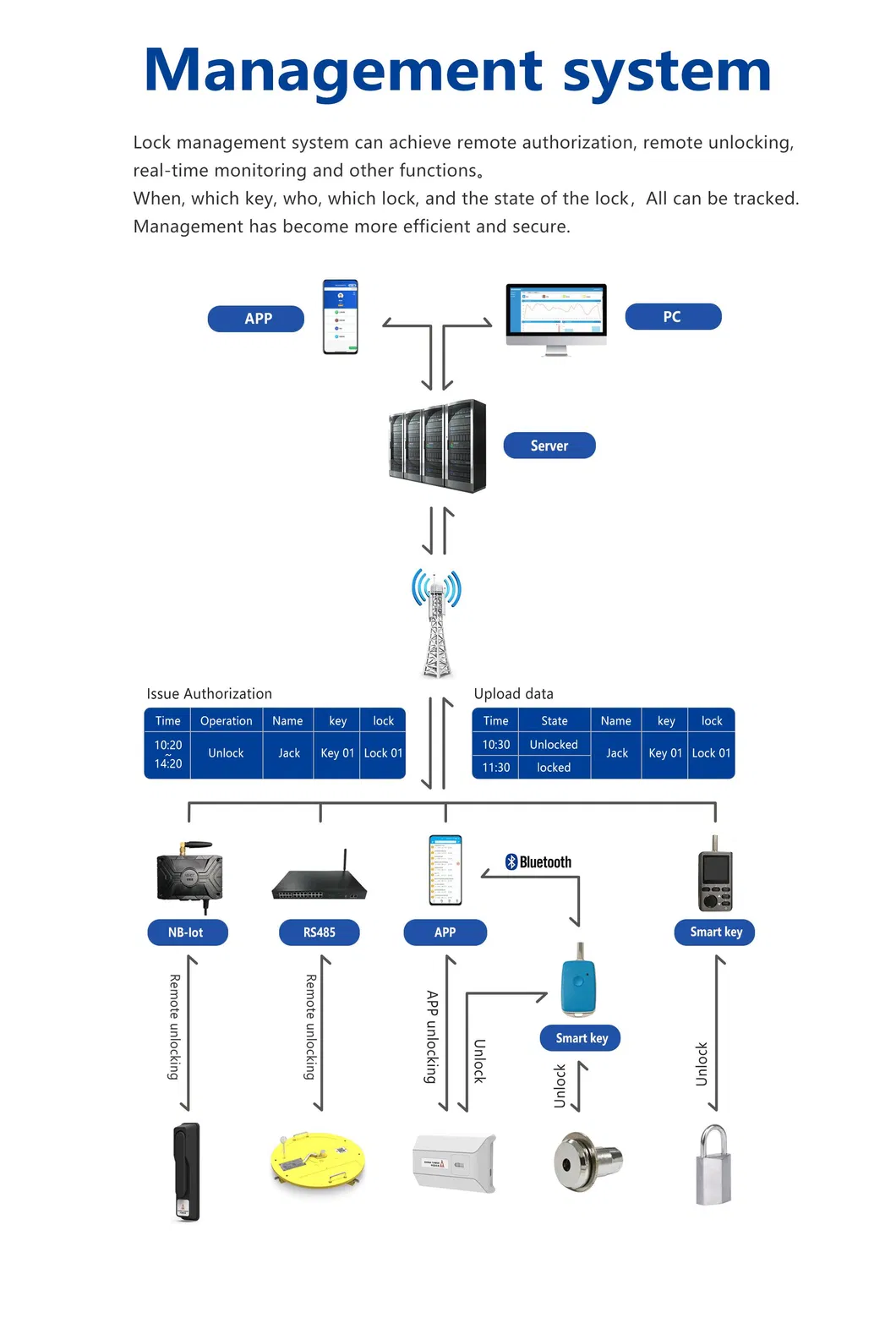

Smart Management System

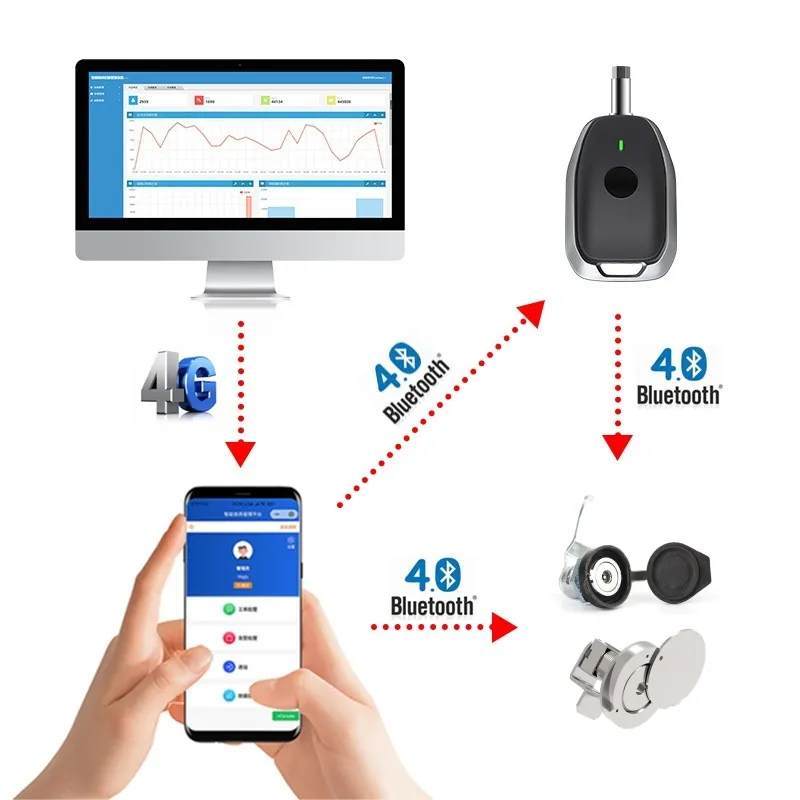

The Passive Electronic Lock System is composed of passive locks, smart electronic keys, and intelligent lock management software.

One key can open multiple types of locks based on authorized permissions.
The electronic key records every unlocking and locking event for audit trails.
Swiftly disable lost or stolen keys via the management system.
Authorization management by department or individual for improved security.
Visual management combining lists and maps for clear oversight of all lock locations.

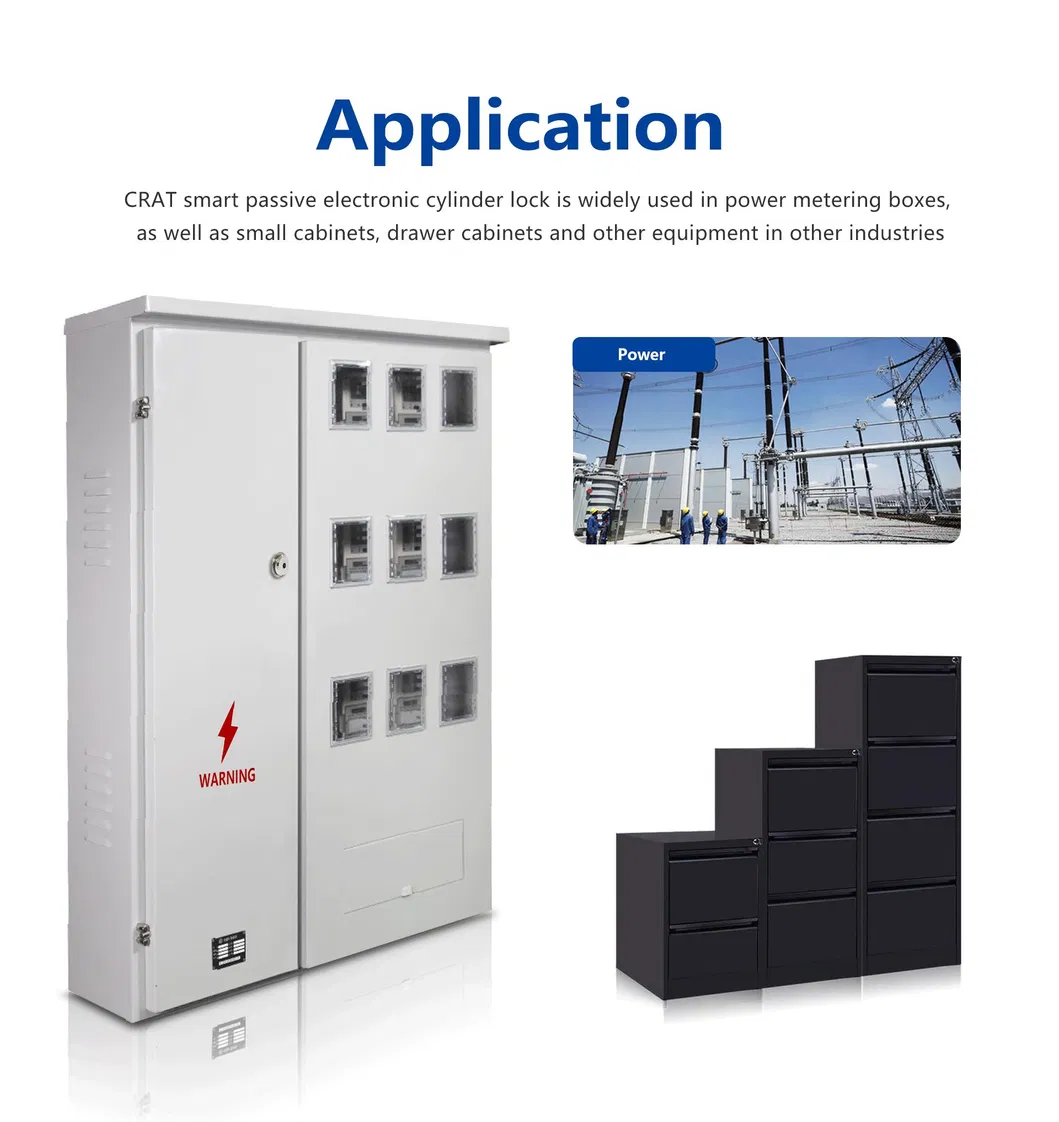

Application Industry

This intelligent lock system is widely applied in critical infrastructure and high-security environments, including:

Communication machine room cabinets and outdoor control cabinets.
Optical cable transfer boxes and communication base stations.
Public passages, enterprise warehouses, and campus facilities.
Utility manhole covers and power distribution boxes.

Frequently Asked Questions

What is a passive electronic lock?

A passive electronic lock does not have a built-in power source or battery. It receives the power required to operate from the smart electronic key during contact, making it ideal for outdoor use where wiring is difficult.

How secure is the data transmission?

The system uses AES128 encryption technology for communication between the key and the lock, ensuring that only authorized keys can interact with the system and preventing data duplication.

What happens if a smart key is lost?

If a key is lost or stolen, it can be swiftly disabled through the management software. Once blacklisted, the key will no longer have permission to open any locks in the system.

Can the software be integrated with other systems?

Yes, software integration is accepted. We provide standalone versions as well as web-based management platforms to suit different enterprise needs.

What is the weather resistance of these locks?

The locks are designed with SUS304 stainless steel and feature protection levels up to IP68. They can operate in extreme temperatures ranging from -40°C to 80°C and high humidity environments.

How many records can the system store?

The smart electronic key can store up to 100,000 unlocking and locking records, which can be uploaded to the management software for detailed audit reports.
