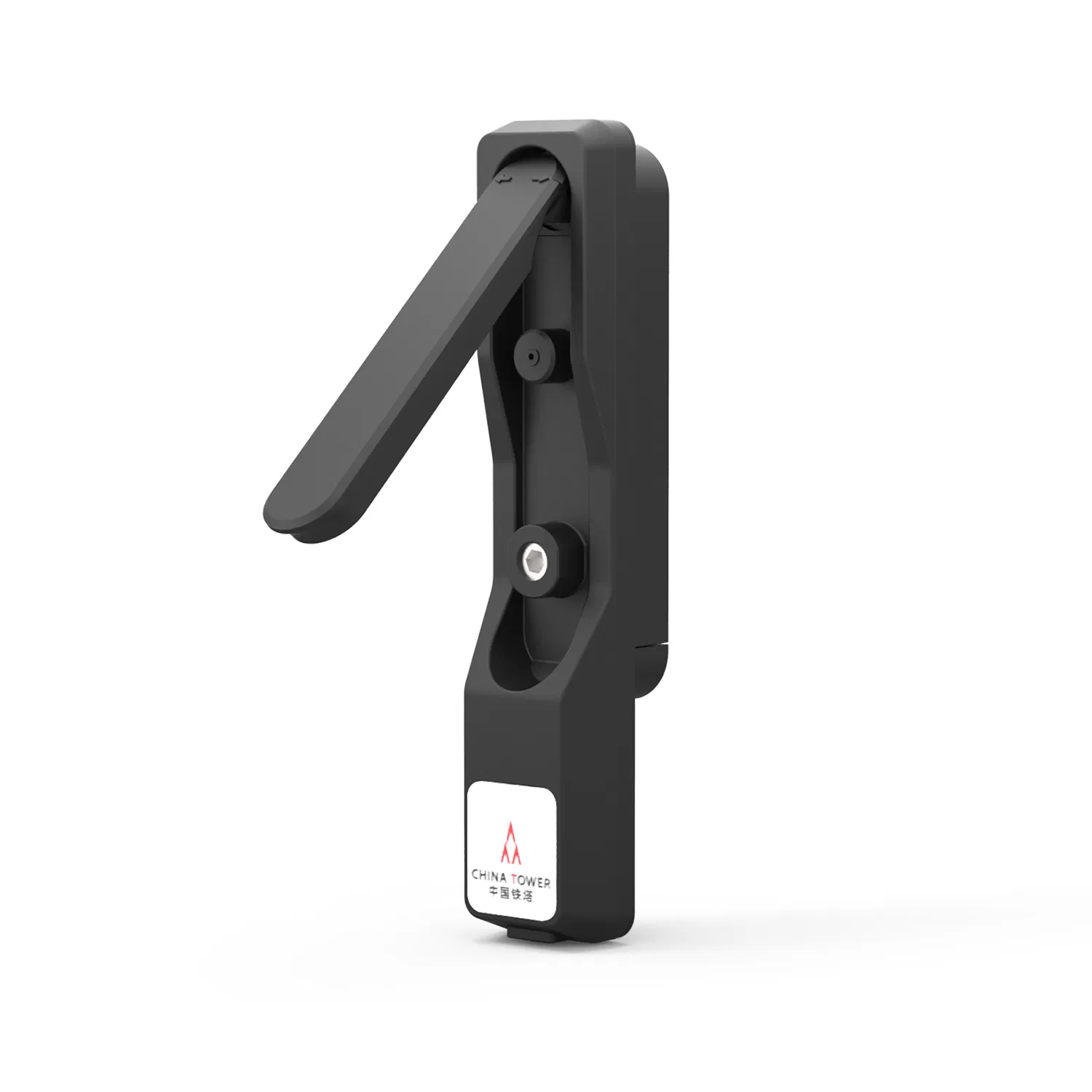

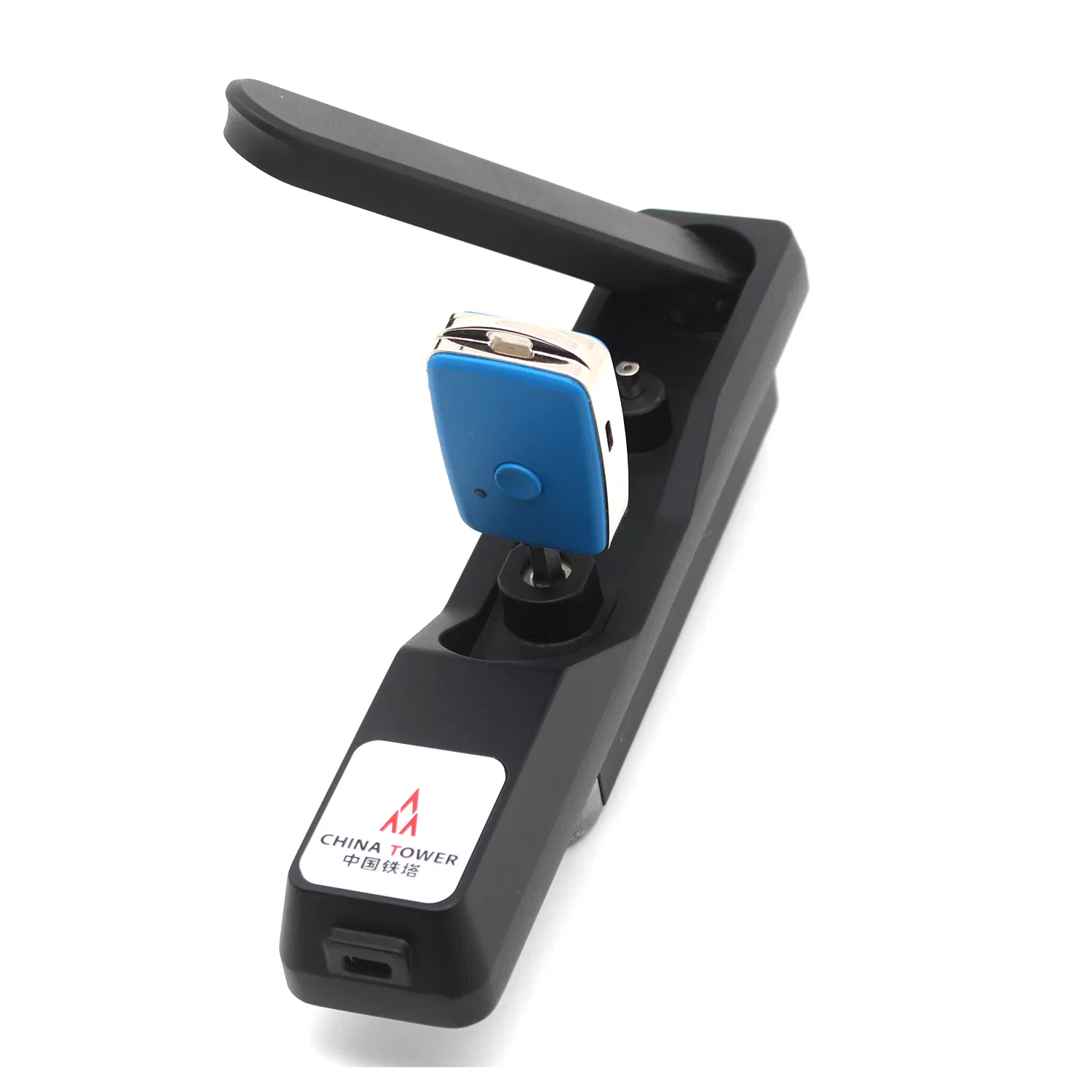

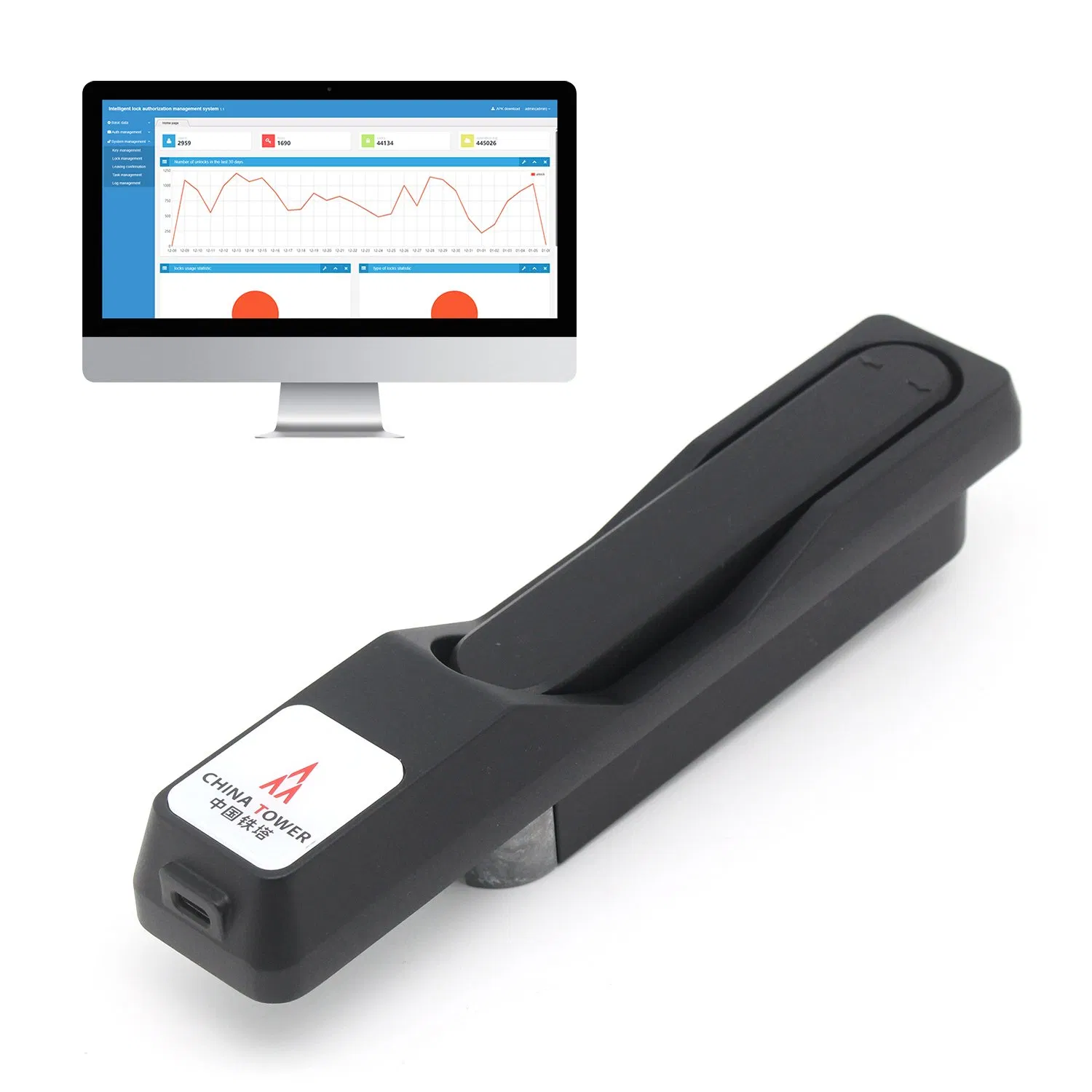

Wipan Lock
1 / 5

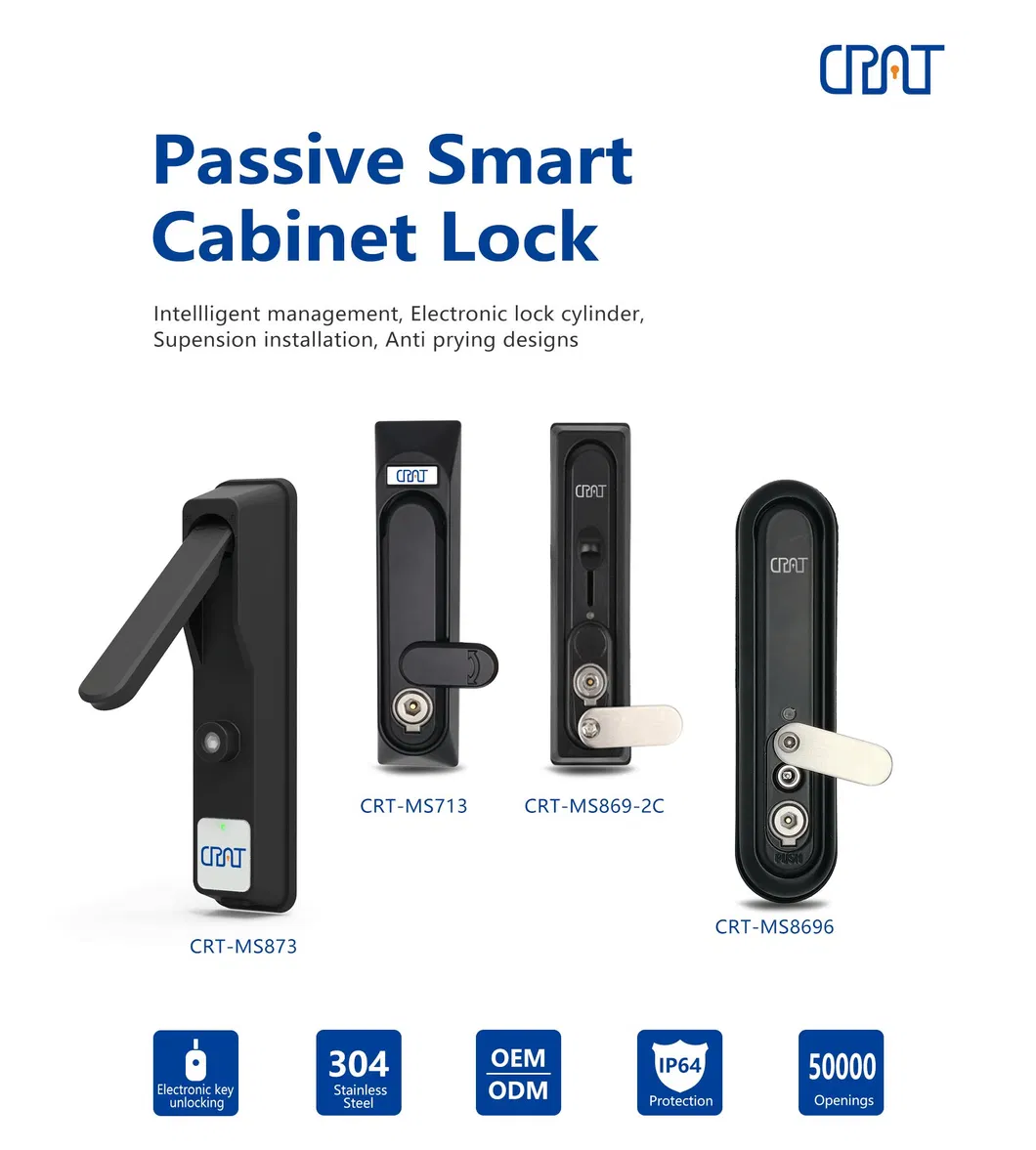

| Lock core material | SUS304 Stainless steel |
| Lock body material | Zinc alloy spray plastic+SUS304 |
| Operating voltage | 3V-5.5V |
| Operating environment | Temperature(-40°C~80°C), Humidity(20%~98%RH) |
| Unlocking times | ≥50000 |
| Protection level | IP64 |
| Encoding digits Number | 128bit (No mutual opening rate) |
| Lock cylinder technology | 360°, Idle design to prevent violent opening, Storage Operations (Unlock, Lock, Patrol, etc.) Log |
| Encryption Technology | Digital encoding technology & encrypted communication technology; Eliminate technology activation |

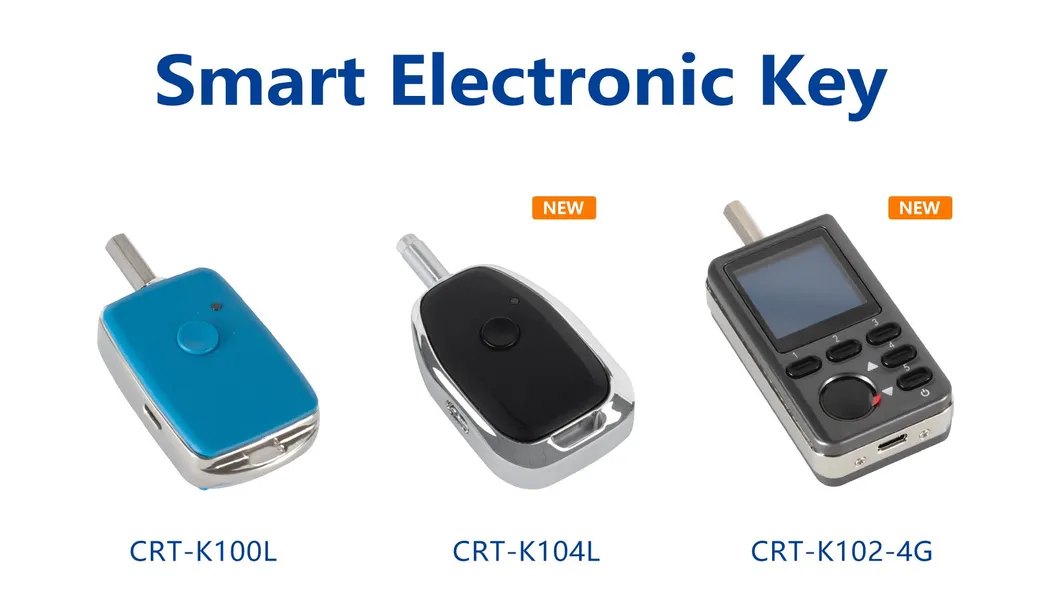

| Model | CRT-K100L/K104L | CRT-K102-4G |
|---|---|---|
| Operating voltage | 3.3V-4.2V | |
| Operating environment | Temperature (-40~80°C), Humidity (20%~93%RH) | |
| Battery capacity | 500mAh | |
| One charge for unlock times | 1000 times | |
| Charging time | 2 hours | |
| Communication interface | Type-C | |
| Unlock Record | 100000 pieces | |
| Protection level | IP67 | |
| Fingerprint identification | ✕ | ✓ |
| Visual screen | ✕ | ✓ |
| Date transfer | ✓ | ✓ |
| Remote authorization | ✕ | ✓ |
| Voice+light prompt | ✓ | ✓ |
| Bluetooth | ✓ | ✓ |
| NB-iot/4G | ✕ | ✓ |
Smart locks are widely used in mobile telecom towers, communication machine room cabinets, outdoor control cabinets, optical cable transfer boxes, communication base stations, and other units.
MAIN PRODUCTS: Passive smart lock, Electronic Wireless Intelligent lock, Communication base-station smart lock, Passive padlock, Bluetooth padlock, NB Intelligent Optical box lock, Intelligent manhole cover lock, Public passage Smart lock and the full range of smart locks.

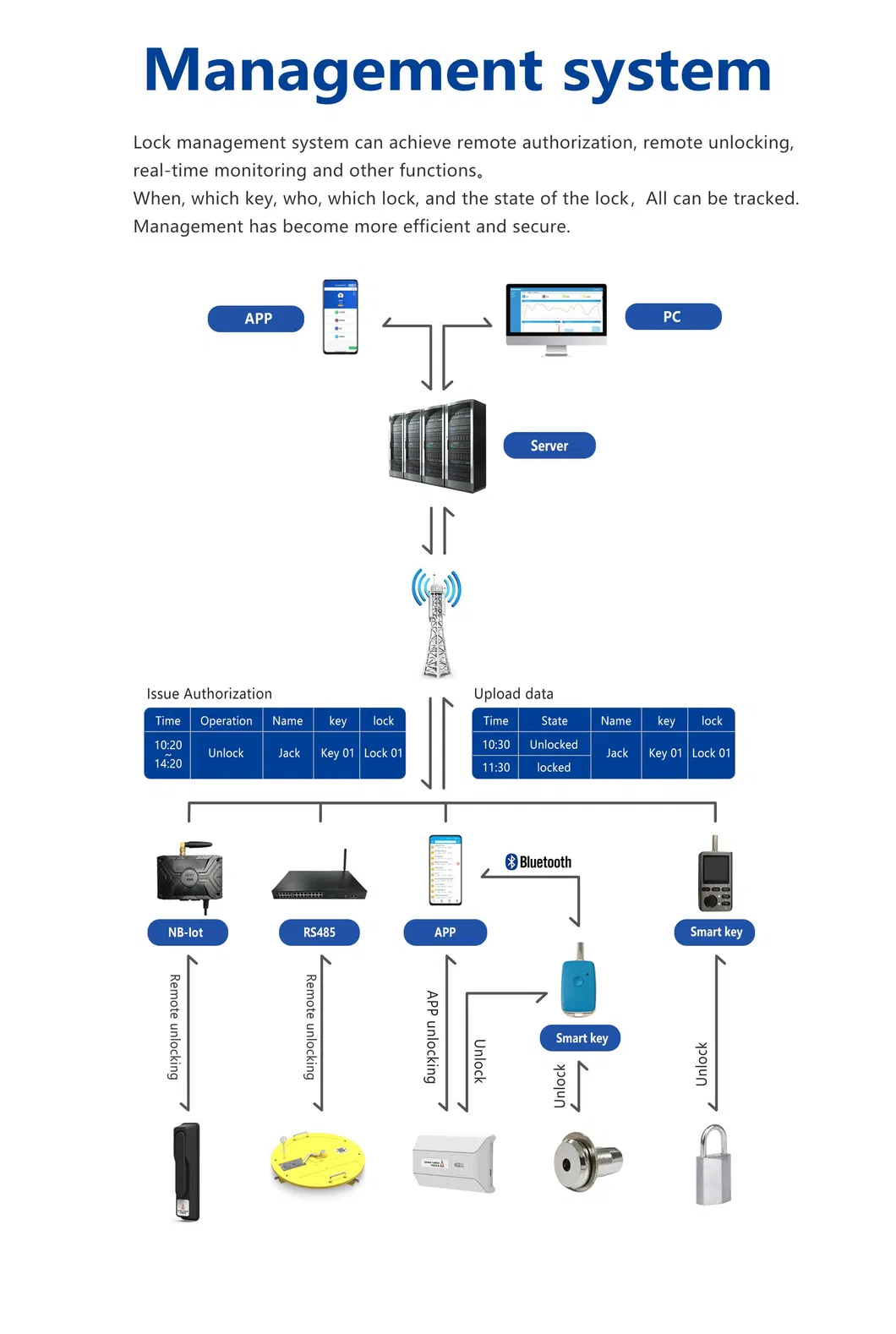

Free standalone version lock software is provided, as well as paid web-based lock software. Customization services are available to meet your requirements. Please contact us to discuss your demands.
